SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
43
CURSOR SERIES
Print P4D32C006 E Base - 03/2015
CYLINDER HEAD REMOVAL-REFITTING
Remove the air filter as described in the procedure “AIR
FILTER REMOVAL - REFITTING”.
Removal

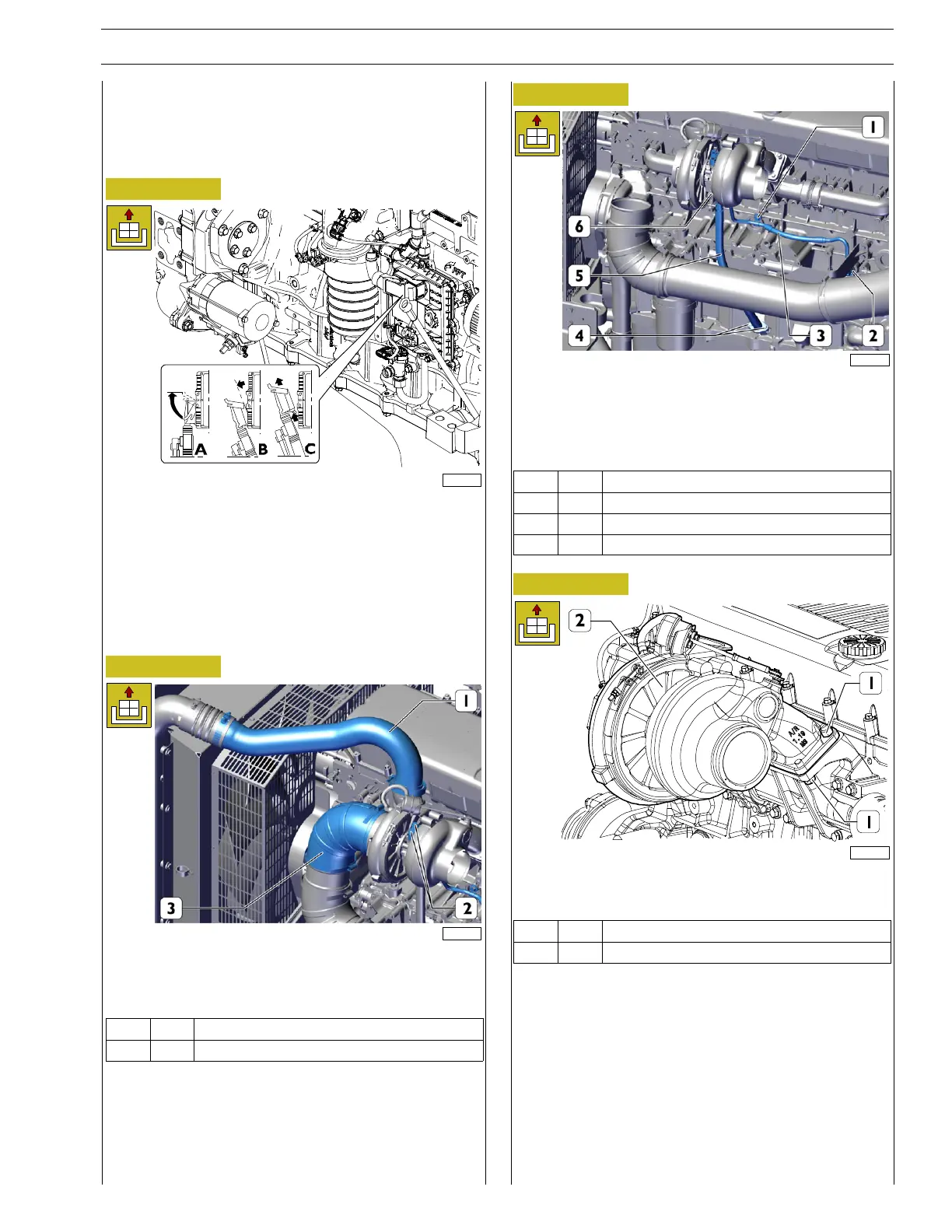

Figure 123
225041
Free the clips fixing the engine cable.
Disconnect the electrical connections of the sensors.
Lift the safety lever (A).
Move the connector, disconnecting it from the control unit (B).
Lift the connector, releasing the pawl (C).
Remove the engine cable.
Figure 124
227760
Slacken the clamp and collar and remove the combustion air
intake pipe (1) to the aftercooler.
Undo the screws (2) of the oil deliver pipe to turbocharger
Ref.
No. Description
(2) 2 M8 x 1.25 screws
Slacken the clamps and remove the sleeve (3) of the
combustion air intake pipe to the turbocharger.
Figure 125
227761
Loosen the screw of the bracket (1) and fitting (2) and remove
the oil supply pipe to the turbocharger (3).
Undo the screws (4, 6) and remove the oil return pipe from
the turbocharger (5) with its gaskets.
Ref.
No. Description
(1) 1 M10 screw
(2) 1 Fitting M16 X 1.5 X 12
(4, 6) 4 M8 x 1.25 screws
Figure 126
225025
Unscrew the nuts (1) and remove the turbocharger (2) from
the exhaust manifold along with its gasket.
Ref.
No. Description
(1) 4 Nuts M12 X 1.75
