SECTION 6 - GENERAL MECHANICAL OVERHAUL
21
CURSOR SERIES
Print P4D32C006 E Base - 03/2015

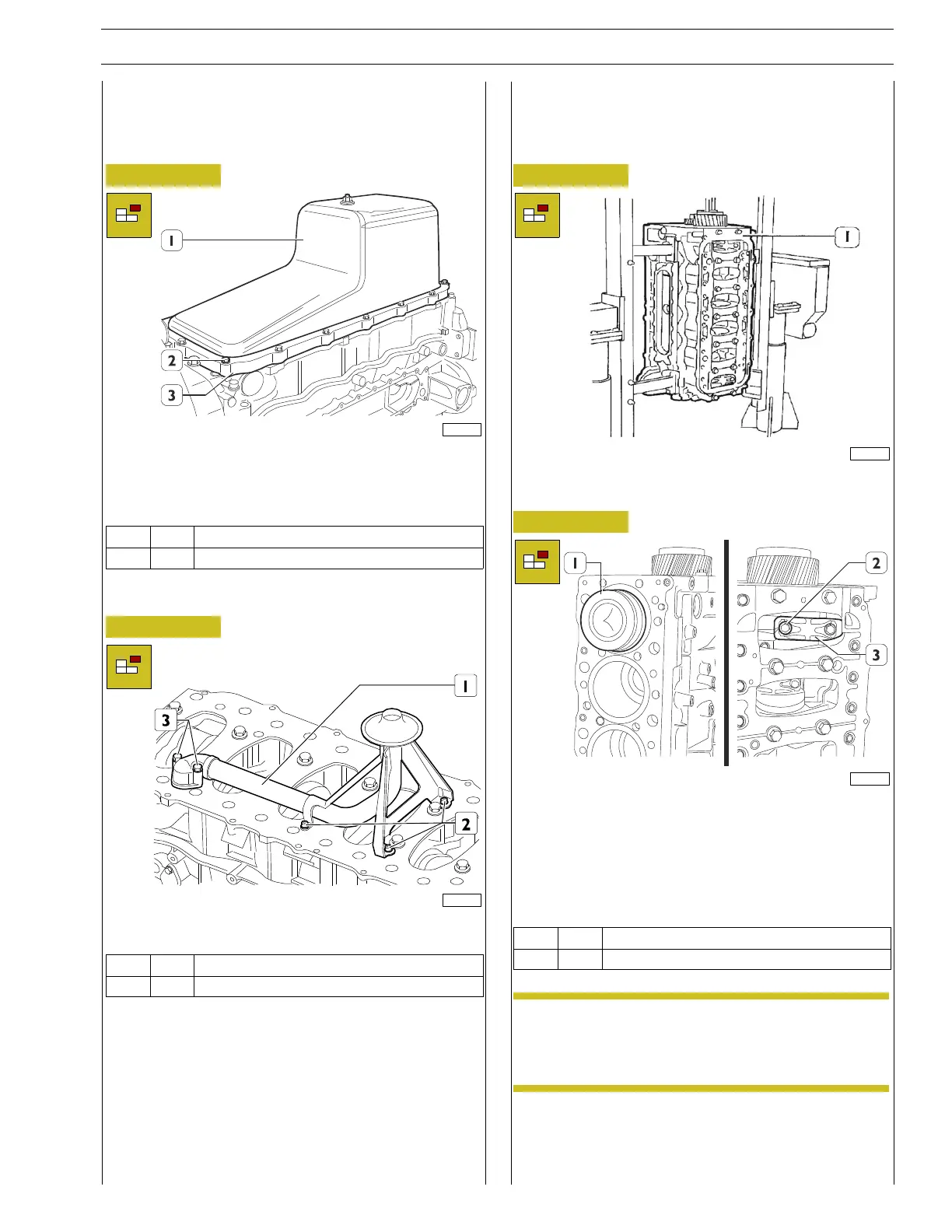

DISASSEMBLY OF ENGINE AT BENCH
(COMPONENTS AT THE BOTTOM)
Oil sump removal
Figure 55
60516
Turn the engine on the rotating stand.
Slacken the screws (2) and remove the engine oil sump (1) wi-
th the frame (3) and the gasket.
Ref.
No. Description
(2) 16 M10 x 1.5 screws
Suction strainer removal
Figure 56
221114
Unscrew the screws (2, 3) and remove the suction strainer (1).
Ref.
No. Description
(2, 3) 6 M8 X 1.25
DISASSEMBLY OF ENGINE AT BENCH
(CRANKCASE COMPONENTS SIDE)
Connecting rod removal
Figure 57
47574
Turn the crankcase (1) into vertical position.
Figure 58
60518
Move pistons 1 and 6 at T.D.C.
Unscrew the screws (2) securing the connecting rod cap (3)
and remove them.
Extract pistons 1 and 6 complete with rods.
Repeat operation for remaining pistons.
Ref.
No. Description
(2) 12 M14x2screws
NOTE Keep the big end half-bearings in their respecti-
ve housings and/or note down their assembly
position since, if reusing them, they will need to
be fitted in the position found upon removal.
