SECTION 6 - GENERAL MECHANICAL OVERHAUL

CURSOR SERIES

Print P4D32C006 E Base - 03/2015

OVERHAULING THE CONNECTING ROD-PISTON ASSEMBLY

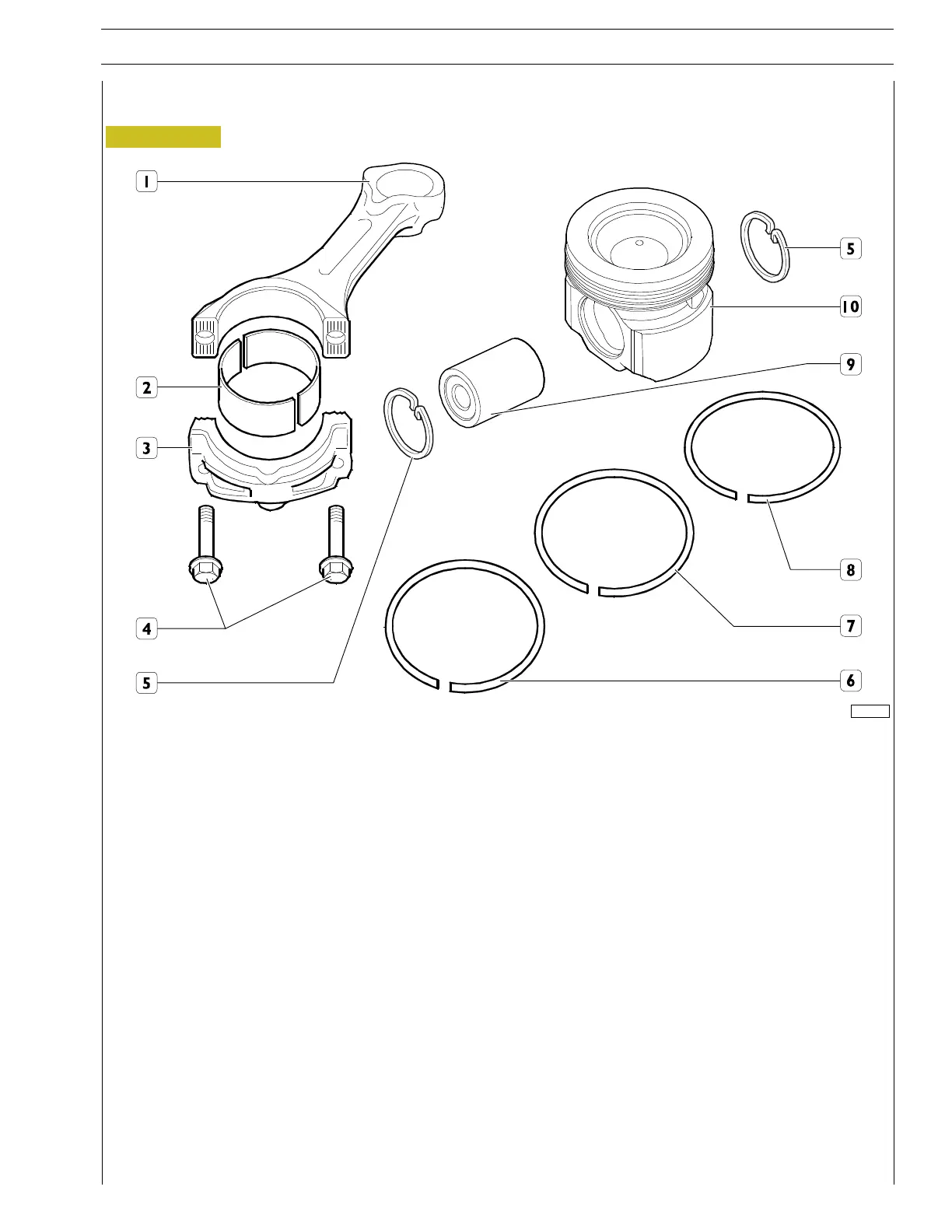

Figure 90

155940

1. Connecting rod body - 2. Half-bearings - 3. Connecting rod cap - 4. Cap fastening screw - 5 Circlip -

6. Slotted oil scraper ring with spiral spring - 7. Claw seal ring - 8. Trapezoidal seal ring -

9. Piston pin - 10. Piston

Make sure the pistons do not show any sign of seizing, scoring, cracking or excessive wear; otherwise, replace as necessary.
