SECTION 6 - GENERAL MECHANICAL OVERHAUL
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E

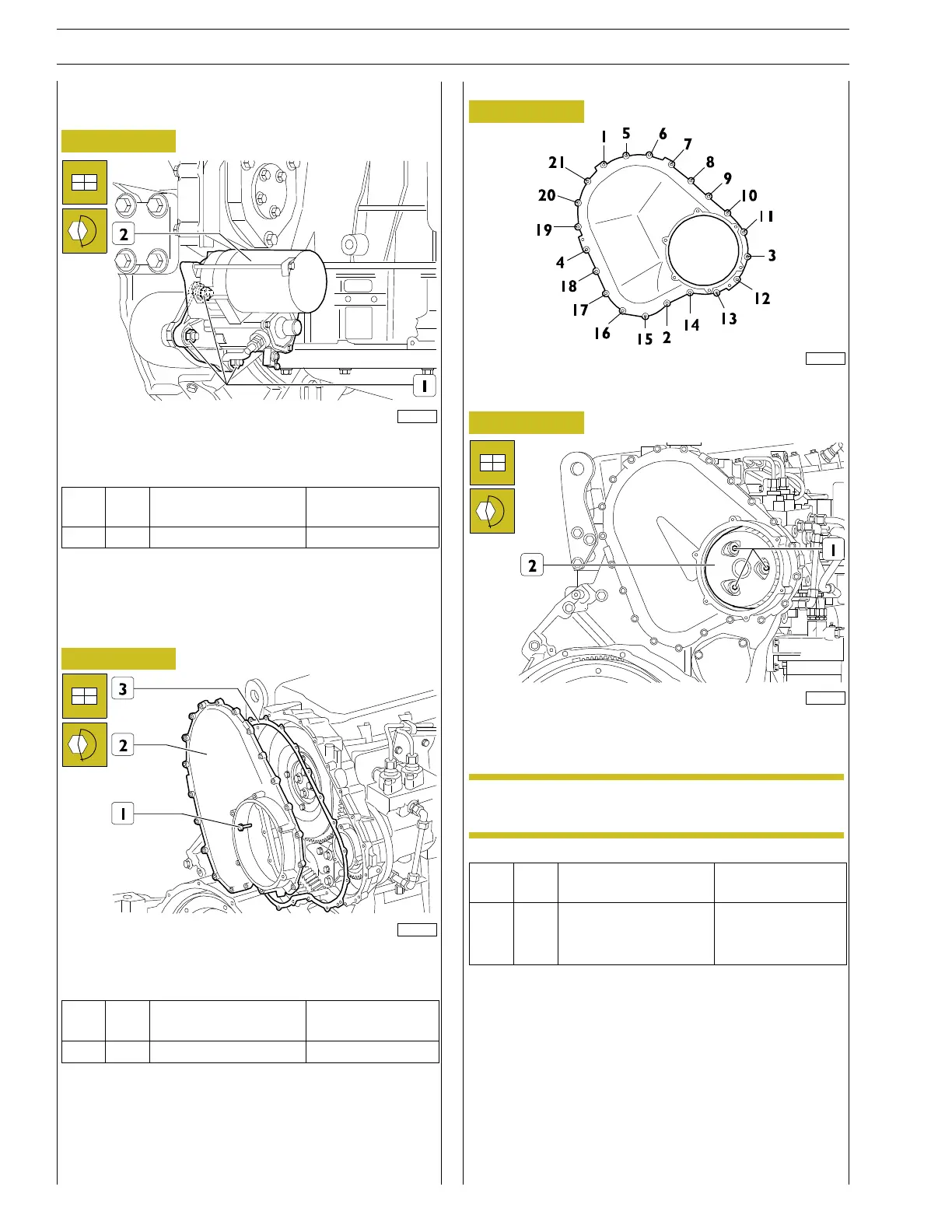

Starter motor assembly
Figure 212
221094
Fit the starter motor (2) and tighten the nuts (1) on the studs
to the prescribed torque.
Ref.
No. Description
Tightening
torques
(1) 3 Nuts M12X1,75 74 ± 8 Nm
ASSEMBLY OF ENGINE AT BENCH
(COMPONENTS AT THE REAR PART 2)
Timing gear assembly cover mounting
Figure 213
221124
Mount timing gear cover (2) complete with gasket (3).
Tighten the screws (1) to the prescribed torque.
Ref.
No. Description
Tightening
torques
(1) 21 ScrewsM6X1X25 10 ± 1 Nm
Tightening sequence
Figure 214
221125
Blow-by filter fitting
Figure 215
221098
Fit the blow-by case (2) and tighten the screws (1) to the speci-
fied torque.
NOTE During assembly, apply LOCTITE 243 to the sc-
rews (1).
Ref. No. Description
Tightening
torques
(1) 3
Screws M6 X 1 X 40
Step 1 5Nm
Step 2 15 ± 1.5Nm
