18
SECTION 2 - OPERATING DIAGRAMS
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E
operation
The water pump driven by a poly-V belt by the crankshaft
sends coolant into the crankcase and with a greater head into
the cylinder head.
When the coolant temperature reaches and exceeds the
working temperature, it causes the thermostat to open and
the fluid is channelled from here to the radiator and cooled
by the fan.
The pressure inside the system depending on the tempera-
ture variation is controlled by the discharge and charge valves
incorporated in the expansion reservoir filling plug.
The discharge valve has a double function:
- maintain the system slightly pressurised in order to raise
the boiling point of the coolant;
- vent excess pressure into the atmosphere that is caused
by high temperature of the coolant.
The function of the inlet valve is to permit the transfer of coo-
lant from the expansion tank to the radiator when a low pres-
sure is generated inside the system due to coolant volume
reduction as a result of lowering of temperature.

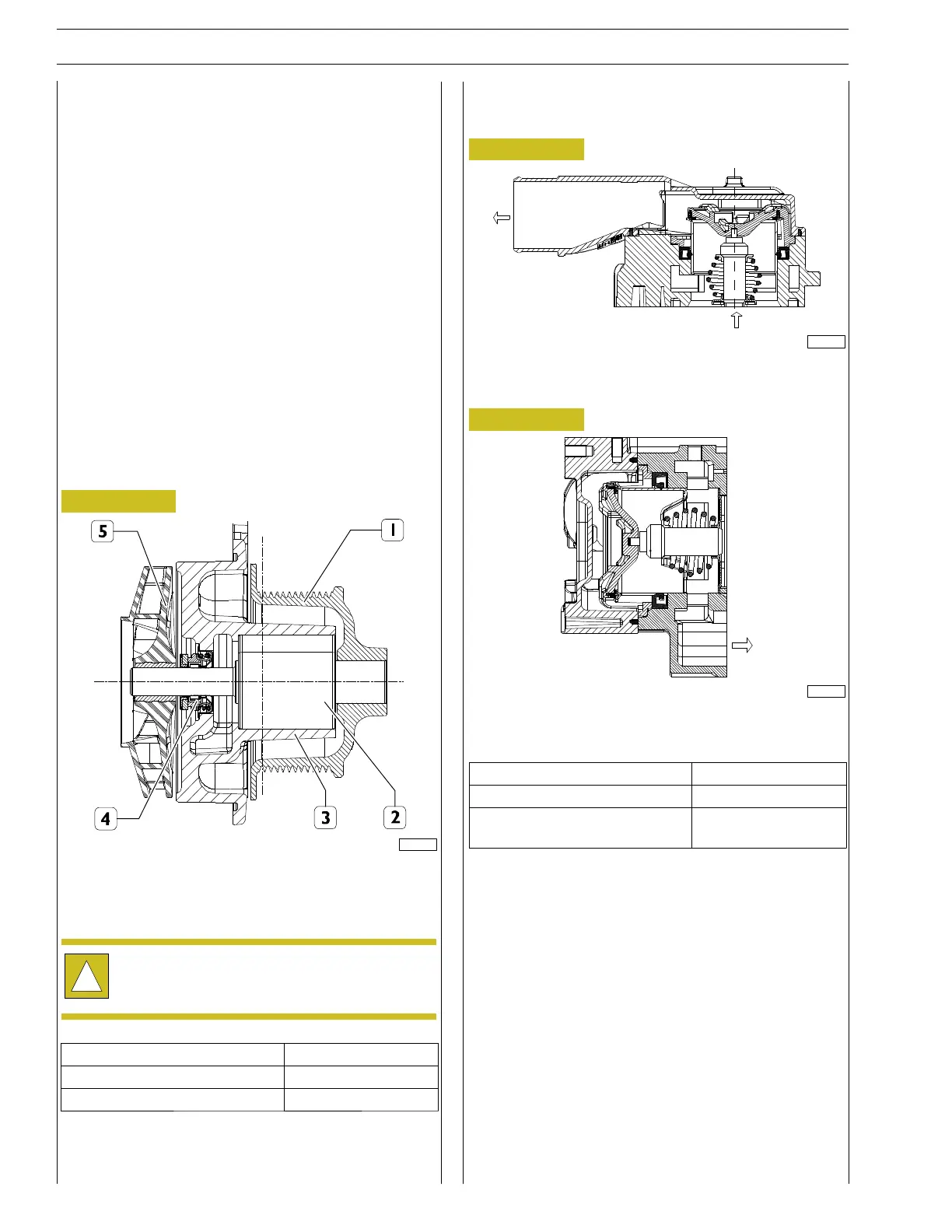

Water pump
Figure 22
224086
SECTIONONWATERPUMP
1. Pulley - 2. Shaft bearing- 3. Mount -
4. Front seal - 5. Impeller
!
Check that the pump casing shows no sign of crack-
ing or water leakage; replace the water pump assem-
bly if it does.
Technical data
Maximum operating pressure 3.5 bar
Operating temperature -40 to 115 ËšC
Thermostat
Water circulating in the engine
Figure 23
221062
Water leaving the thermostat
Figure 24
221063
Check that the thermostat works properly, replace it if there
is any doubt.
Technical data
Start of stroke temperature 84ºC ± 2ºC
Minimum stroke temperature
(15 mm)
94ºC ± 2ºC
