FPT CURSOR Series User Manual

SECTION 6 - GENERAL MECHANICAL OVERHAUL
73
CURSOR SERIES
Print P4D32C006 E Base - 03/2015

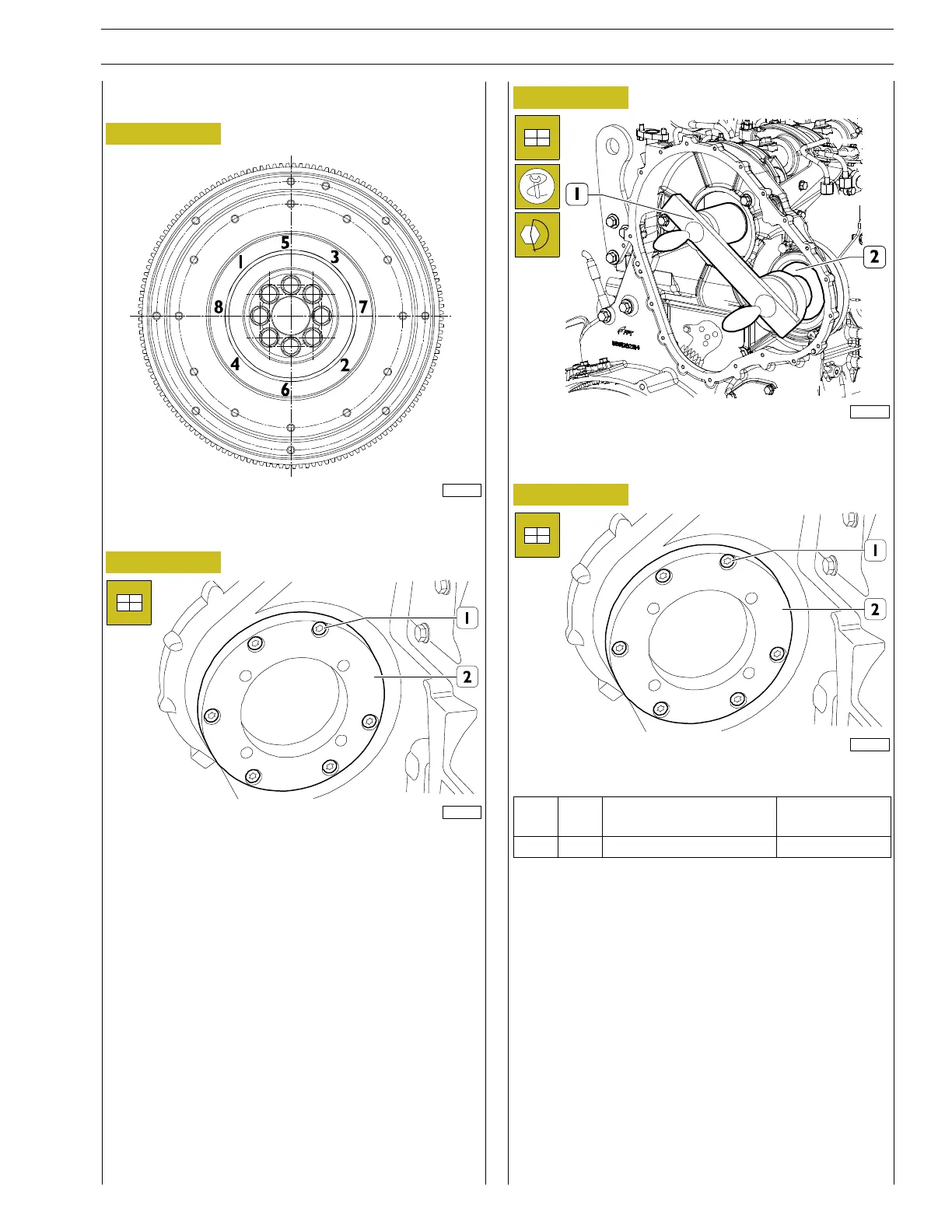

Tightening sequence
Figure 175
225022
High pressure pump flange assembly
Figure 176
225006
Fit the high pressure pump support flange (2) and tighten the
fastening screws (1) without locking in place.
Figure 177
227749
Apply the gauge 99395226 (1) to correctly position the high
pressure pump support flange (2).
Figure 178
225006
Tighten the screws to torque stated in the table.
Ref.
No. Description
Tightening
torques
(1) 6 Screws M8 X 1.25 X 30 20.5 ±2.5 Nm
