SECTION 3 - ELECTRIC EQUIPMENT

CURSOR SERIES

Base - 03/2015 Print P4D32C006 E

ENGINE SIDE WIRING

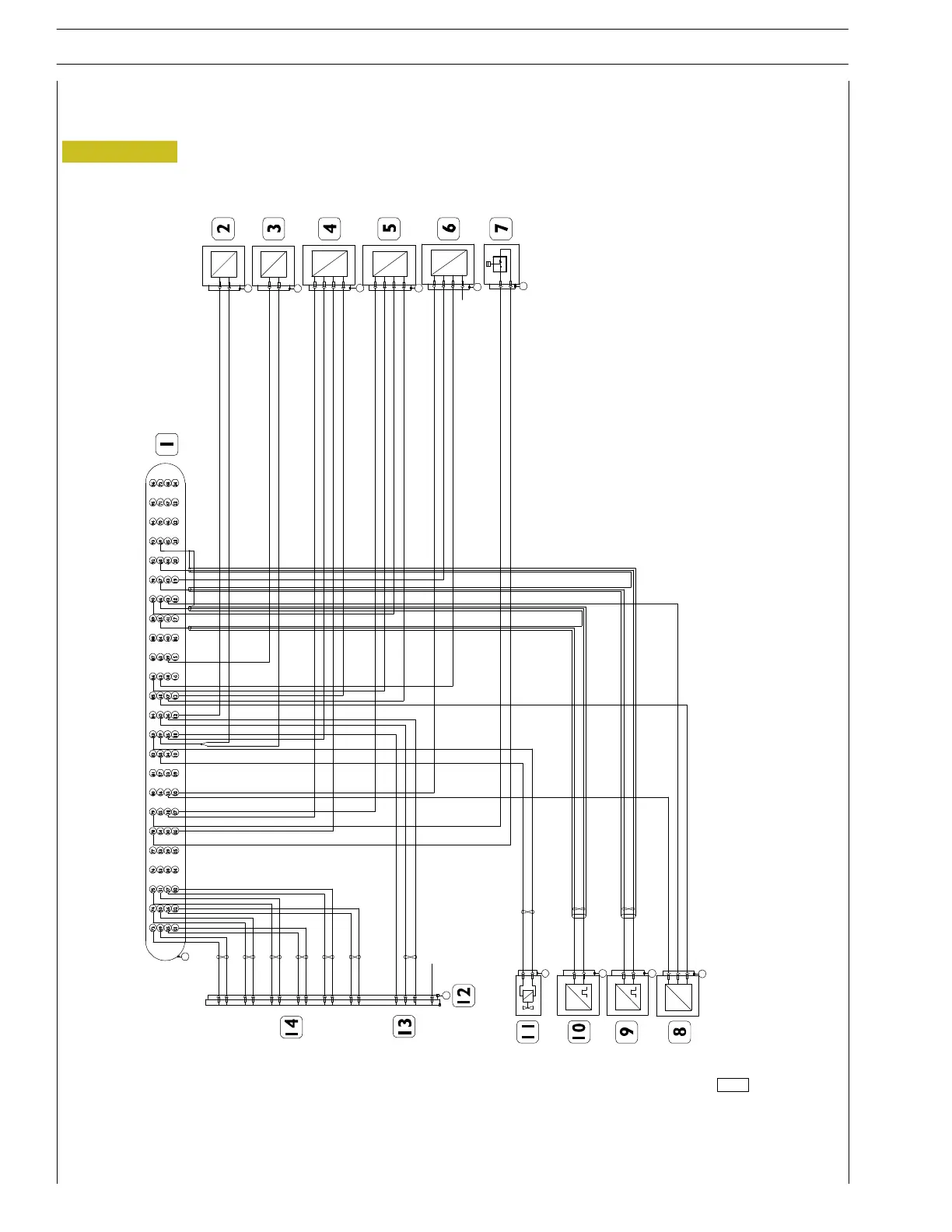

Engine side wiring diagram

224074

Figure 2

1. EDC connector (96-way) - 2. Fuel temperature sensor - 3. Coolant temperature sensor - 4. Oil high pressure and temperature sensor - 5. Turbocharging air pressure and

temperature sensor - 6. Fuel pre-filter clogged sensor - 7. Fuel filter clogged sensor - 8. Pressure sensor inside crankcase - 9. Timing sensor - 10. Rpm sensor - 11. Fuel pump

with flow rate regulator on HP pump - 12. Elec tro-injec t or wiring conn ec t ion - 13. Fuel pressure sensor on rail - 14. E lec tro-in jec t ors for c ylinders 1-6
