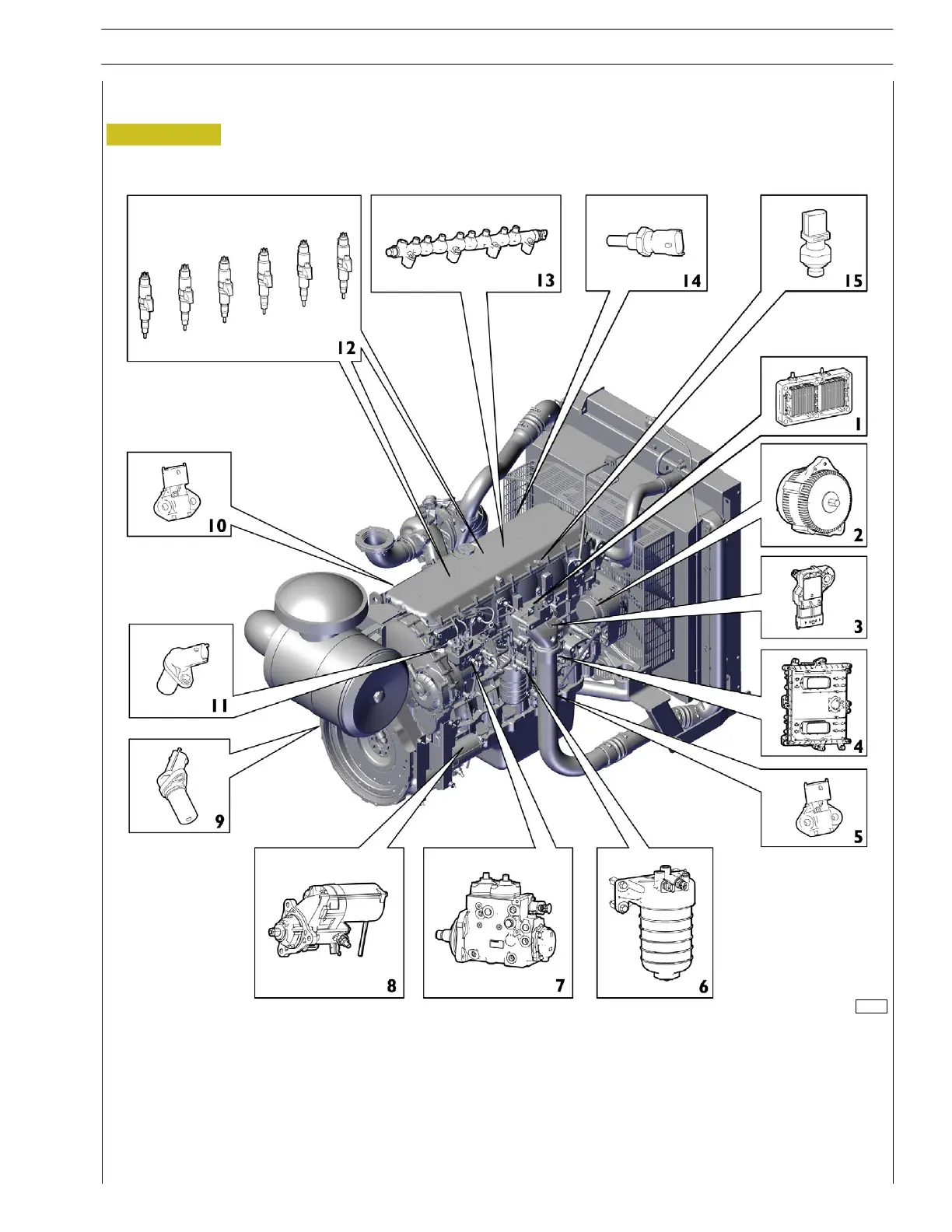

Figure 1

1. Air heater resistor - 2. Alternator - 3. Air temperature and pressure sensor - 4. Engine management control unit -

5. Fuel high pressure and temperature sensor - 6. Fuel filter with pressure and temperature sensor -

7. Fuel pump with flow rate regulator - 8. Starter motor - 9. Rpm sensor - 10. Oil high pressure and temperature sensor -

11. Timing sensor - 12. E lectro-injectors - 13. Rail with fuel pressure sen sor 14. Coolant temperature sensor -

15. Pressure sensor inside engine c rankcase

MAIN COMPONENTS

SECTION 3 - ELECTRIC EQUIPMENT

CURSOR SERIES

Print P4D32C006 E Base - 03/2015
