SECTION 6 - GENERAL MECHANICAL OVERHAUL
89
CURSOR SERIES
Print P4D32C006 E Base - 03/2015

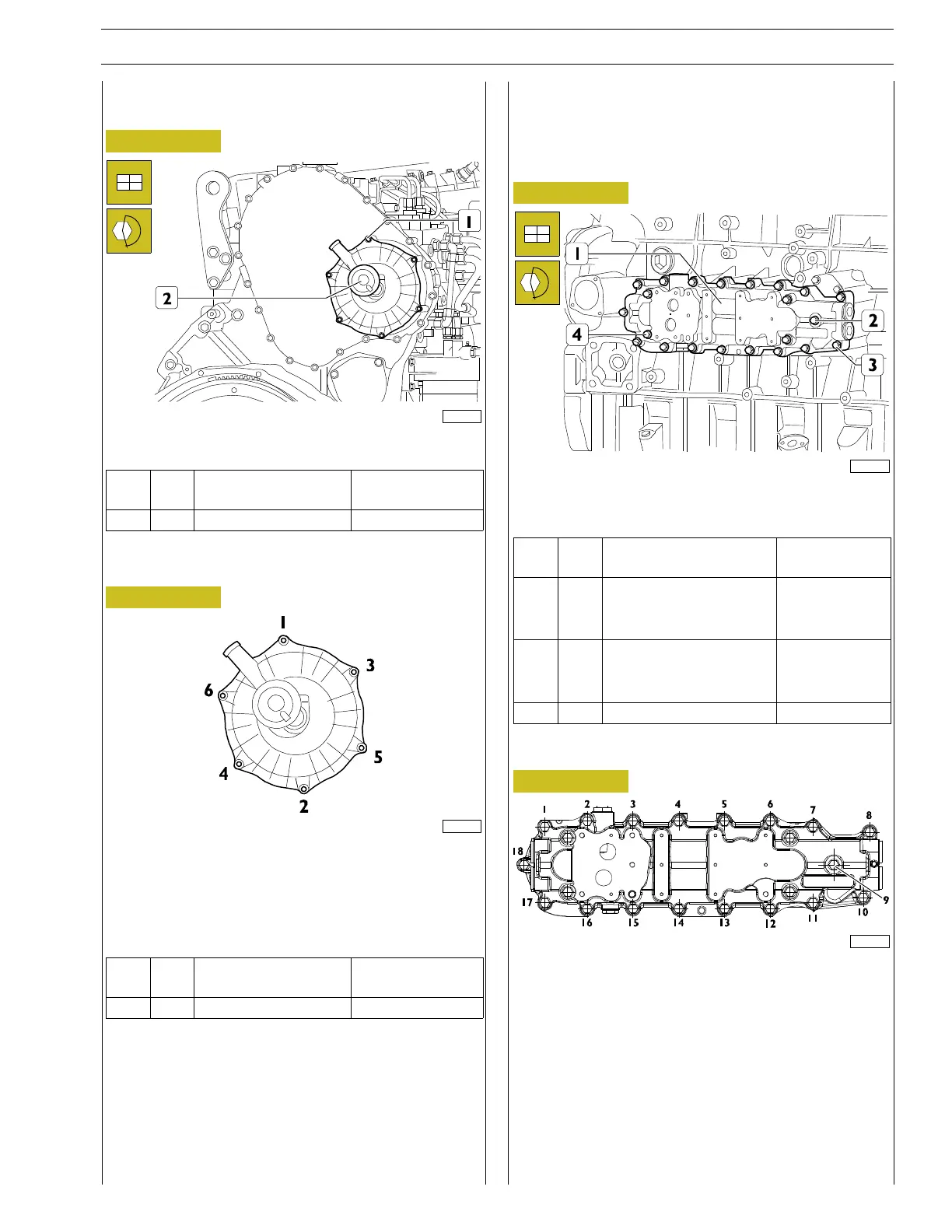

Blow-by case fitting
Figure 216
221097
Position the blow-by case (2)and tighten the screws (1).
Ref.
No. Description
Tightening
torques
(1) 6 ScrewsM6X1X25 7±1Nm
Tightening sequence
Figure 217
221126
Assembly of rpm and timing sensor
Mount the rpm and timing sensors into their seats on the
flywheel case and tighten screws to the torque shown in the
table.
Ref.
No. Description
Tightening
torques
(-) 2 M6 x 12 screws 8±2Nm
ASSEMBLY OF ENGINE AT BENCH
(COMPONENTS AT THE EXHAUST SIDE)
Heat exchanger assembly
Figure 218
225015
Fit the heat exchanger (1) and tighten the fastening screws (2,
3, 4) to torque stated in the table.
Ref.
No. Description
Tightening
torques
(2) 1
Screws M8 X 1.25 X 55
Step 1 11.5 ± 3.5 Nm
Step 2 24.5 ± 2.5 Nm
(3) 17
Screws M8 X 1.25 X 40
Step 1 11.5 ± 3.5 Nm
Step 2 24.5 ± 2.5 Nm
(4) 4 Screws M8 X 1.25 X 45 19 ± 3.8 Nm
Tightening sequence
Figure 219
225031
