34
SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E
COMMON RAIL REMOVAL-REFITTING
Removal

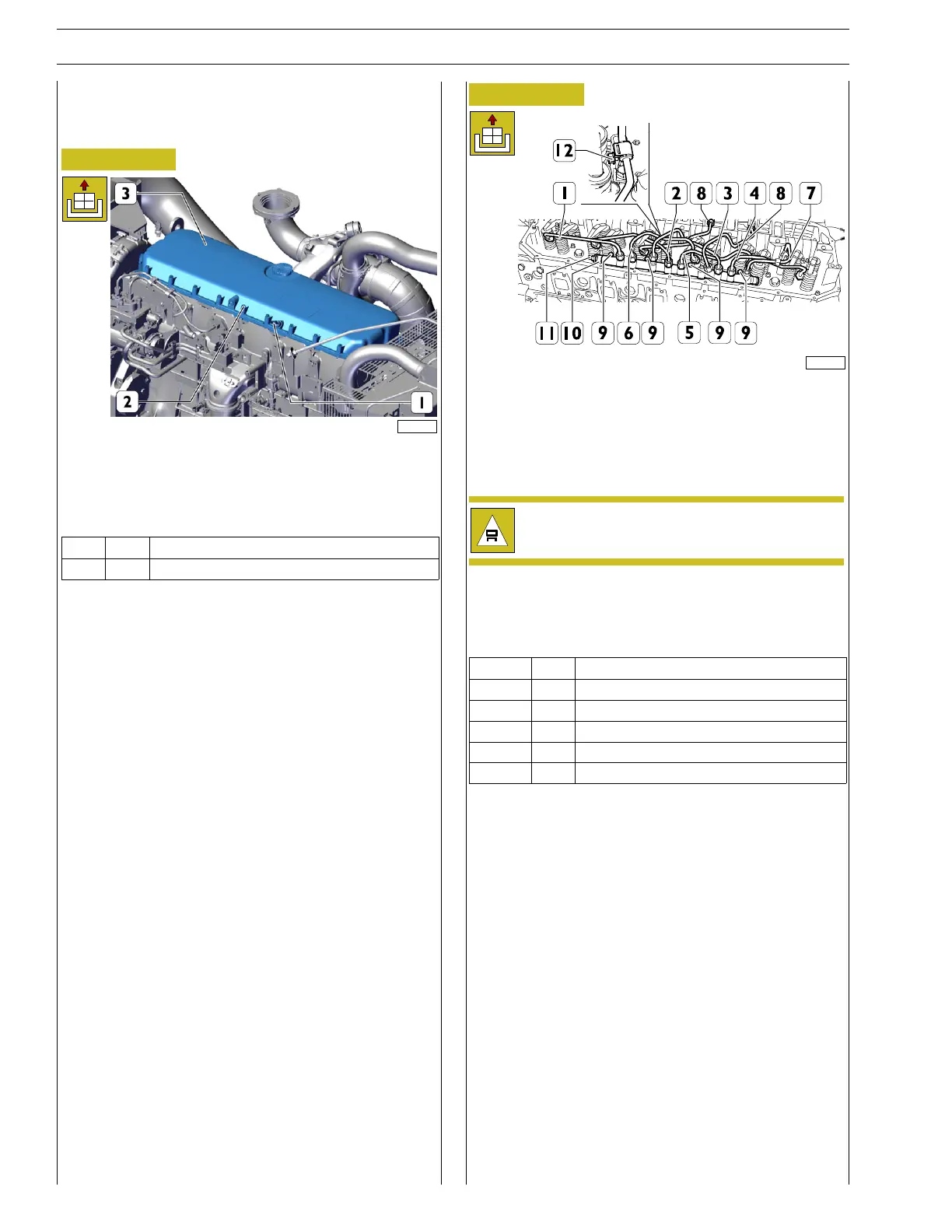

Figure 93
227771
Disconnect the electric connection of engine crankcase
pressure sensor (1).
Unscrew the fastening screws (2) and remove the tappet
cover (3) together with the gasket.
Ref.
No. Description
(2) 24 M6 x 1 screws
Figure 94
225019
Unscrew the fittings (8) on rail and head side, screw on bracket
(12) and remove the high pressure fuel supply pipes.
Unscrew the fittings from the rail side and detach the high
pressure fuel pipes (1, 2, 3, 4, 5 ) e (6) and the fuel return pipe
(7) to the head.
The high pressure fuel pipes must be replaced at each
disassembly.
Disconnect the electric connection from pressure sensor on
the rail (11).
Unscrew the fastening screws (9) and remove the rail (10).
Ref.
No. Description
(1 - 6) 12 Fittings M16 X 1.5
(7) 2 Fittings M16 X 1.5
(8) 4 Fittings M16 X 1.5
(9) 3 Screws M8 X 1.25 X 55
(12) 2 Screws M6
