SECTION 6 - GENERAL MECHANICAL OVERHAUL
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E
Camshaft bushings check

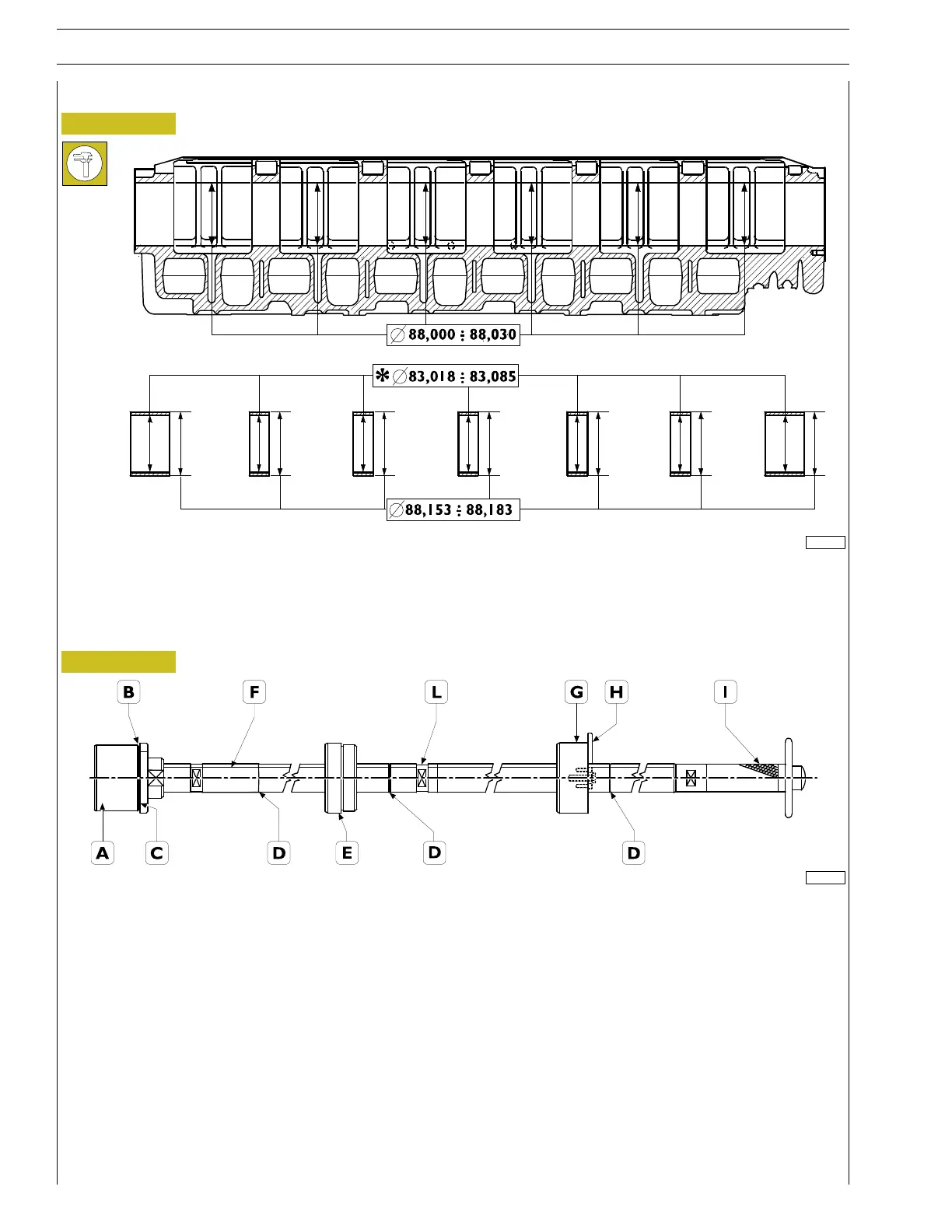

Figure 132
225005
* = Bush inner diameter after installation
The surface of the bushings must show no sign of seizing or scoring; replace them if they do.
Measure the bush inner diameters with a bore meter and replace them if the value measured exceeds the tolerance value.
Figure 133
107217
A. Drift with seat for bushings to insert/extract - B. Dowel pin for positioning bushings. -
C. Reference mark to insert seventh bushing correctly - D. Reference mark to correctly insert bushings 1, 2, 3, 4, 5, 6. -
E. Guide bushing - F. Guide line - G. Guide bushing to secure to the seventh bushing mount -
H. Plate fixing bushing G to cylinder head - I. Grip - L. Extension coupling.
To remove and refit the bushes, use the drift 99360499.
