SECTION 6 - GENERAL MECHANICAL OVERHAUL
59
CURSOR SERIES
Print P4D32C006 E Base - 03/2015

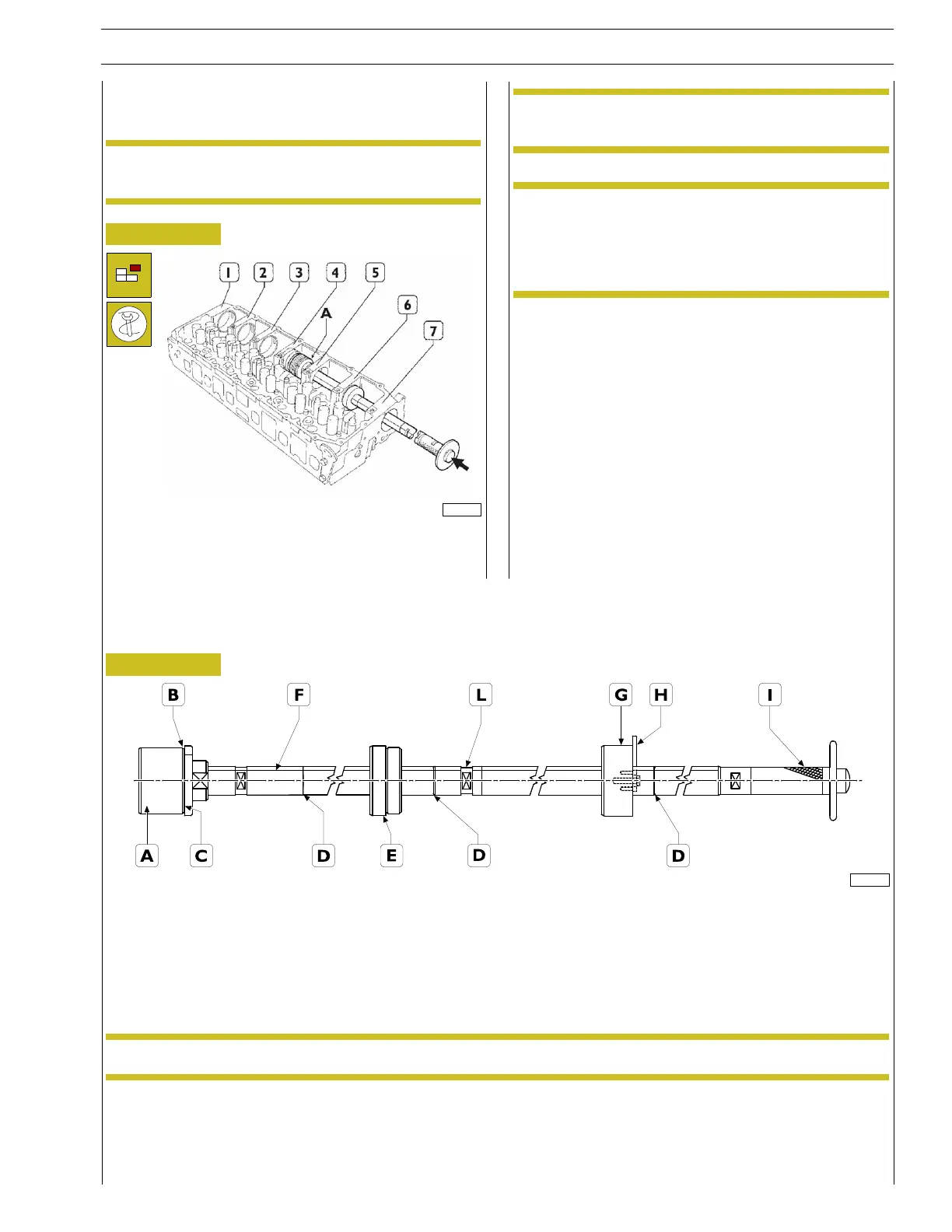

Replacing camshaft bushings using beater
Disassembly
NOTE Position the drift 99360499 accurately during
the removal phase.
Figure 134
71725
Remove the bushes in the following order (7, 6, 5, 4, 3, 2, 1).
NOTE The bushings are extracted from the front of
each seat.
NOTE Removal does not require the drift extension
for bushes 5, 6 and 7 and it is not necessary to
use the guide bushing. For bushes 1, 2, 3 and 4
it is necessary however to use the extension and
the guide bushings.
Assembly
To insert the bushes (1, 2, 3, 4 , 5 ), proceed as follows.
Figure 135
107217
Assemble the drift 99360499 together with the extension.
Position the bush to insert on the drift (A) making the dowel pin (B) on it coincide with the seat on the bush.
Position the guide bush (E) and secure the guide bush (G) on the seat of the 7th bush with the plate (H) .
While driving in the bush, make the reference mark (F) match the notch (M). In this way, when it is driven home, the lubrication
hole on the bush will coincide with the oil pipe in its seat.
NOTE Bushing fitting is finished when the 1st reference notch (D) is flush with the guide bushing (G).
