SECTION 6 - GENERAL MECHANICAL OVERHAUL
61
CURSOR SERIES
Print P4D32C006 E Base - 03/2015

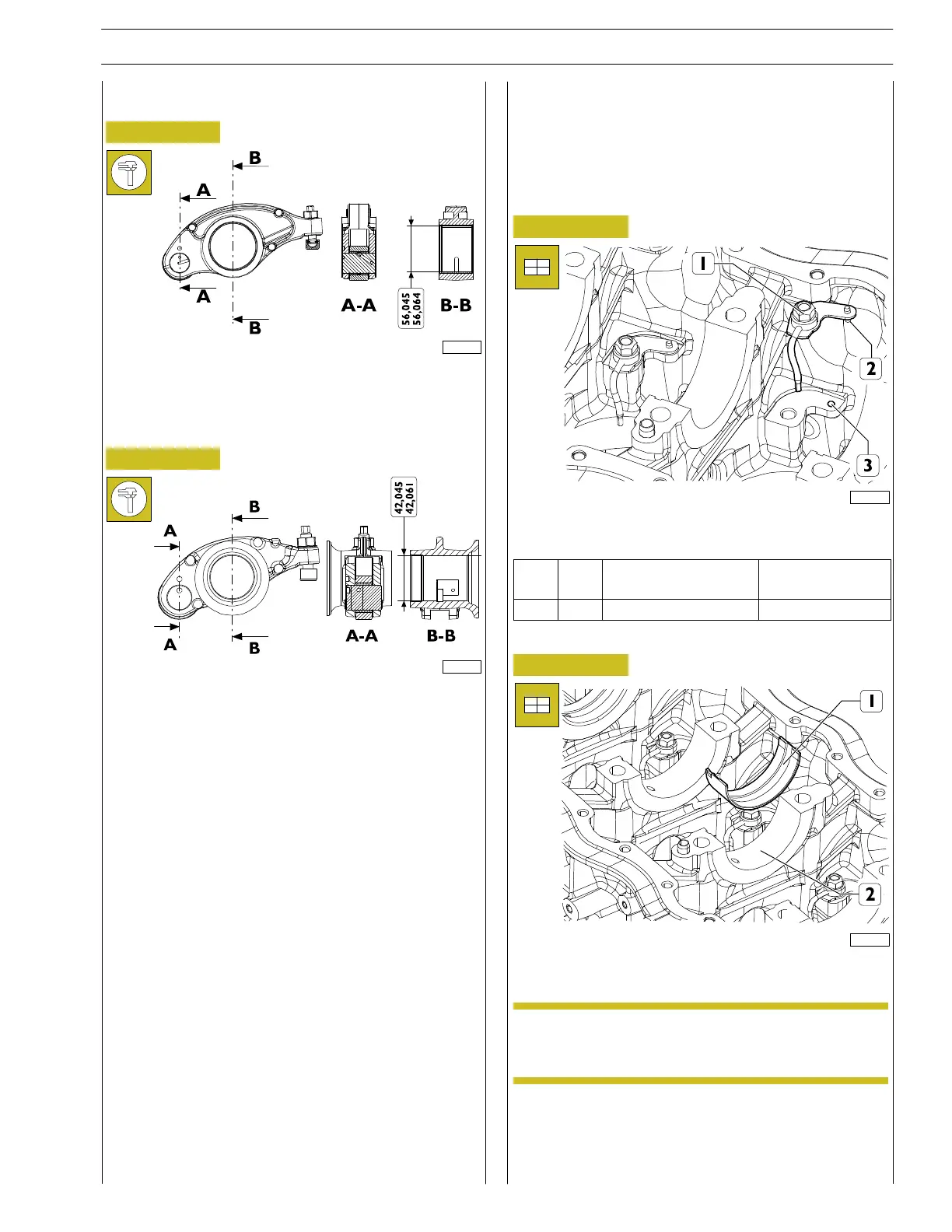

Exhaust valve rocker arm check
Figure 139
181688
Check that the bush surfaces do not show any sign of scoring
of excessive wear; otherwise, replace the whole rocker arm.
Intake valve rocker arms check
Figure 140
155960
Check that the bush surfaces do not show any sign of scoring
of excessive wear; otherwise, replace the whole rocker arm.
ENGINE ASSEMBLY
Crankcase compoennts
Use the specific brackets to secure the engine crankcase to the
rotating stand 99322230 with brackets 99361036.
Oil sprayer assembly
Figure 141
225064
Fit the oil spray nozzles (1), making the dowel (2) match the
hole (3) on the crankcase and tighten the screws to torque.
Ref.
No. Description
Tightening
torques
(1) 6 M14 X 1.5 55 ± 5 Nm
Main bearings assembly
Figure 142
225065
Arrange the half-bearings (1) on the main bearings in the
crankcase (2).
NOTE If it is found that the main bearings do not need
to be replaced, fit them back in exactly the same
sequence and position as in removal.
If they need to be replaced, select the bearings as described
in the chapter “Defining the diameter class of the seats for
half-bearings on the crankcase”.
