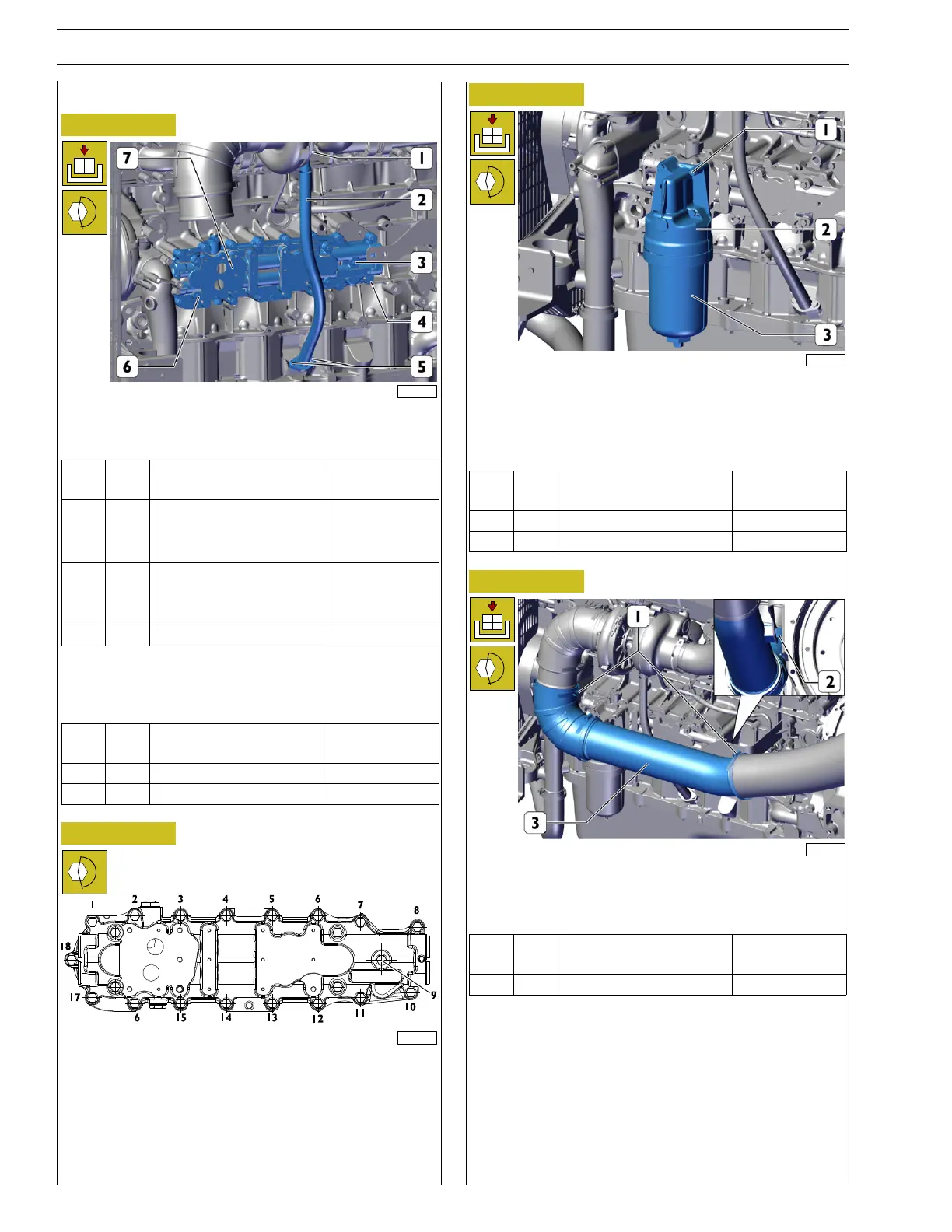

SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E
Refitting
Figure 60
227764
Fit the heat exchanger (7) together with the new gasket and
tighten the screws (3, 4, 6) to the torque indicated in the table.
Ref.
No. Description
Tightening
torques
(3) 1
Screws M8 X 1.25 X 55
Step 1 11.5 ± 3.5 Nm
Step 2 24.5 ± 2.5 Nm
(4) 17
Screws M8 X 1.25 X 40
Step 1 11.5 ± 3.5 Nm
Step 2 24.5 ± 2.5 Nm
(6) 4 Screws M8 X 1.25 X 45 19 ± 3.8 Nm
Fit the engine oil return pipe from the turbocharger (2) with
the new gaskets and tighten the screws (1, 5) to the torque
indicated in the table.
Ref.
No. Description
Tightening
torques
(1) 2 M8x1.25 screws 24.5 ± 2.5 Nm
(5) 2 M8x1.25 screws 24.5 ± 2.5 Nm
Figure 61
225031
Tighten the fastening screws following the sequence indicated
in the figure.
Figure 62
227786
Fit the engine oil filter mount (2) together with the new gasket
and tighten the screws (1) to the torqueindicatedinthetable.
Fit the filter element of the oil filter (3) onto its support (2) and
tighten it to the torque indicated in the table.
Ref.
No. Description
Tightening
torques
(1) 4 Screws M8 X 1.25 X 65 24.5 ± 2.5 Nm
(3) 1 - 60 ± 5 Nm
Figure 63
227763
Refit the combustion air intake pipe to the turbocharger pipe
(3) into its seat, tighten the clamps (1) and the screws (2) that
fasten to the bracket to the torque in the table.
Ref.
No. Description
Tightening
torques
(2) 2 M8 X 1.25 -
