FPT CURSOR Series - Removing the Engine Brake Cylinders; Camshaft Removal; Cylinder Head Removal

20
SECTION 6 - GENERAL MECHANICAL OVERHAUL
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E

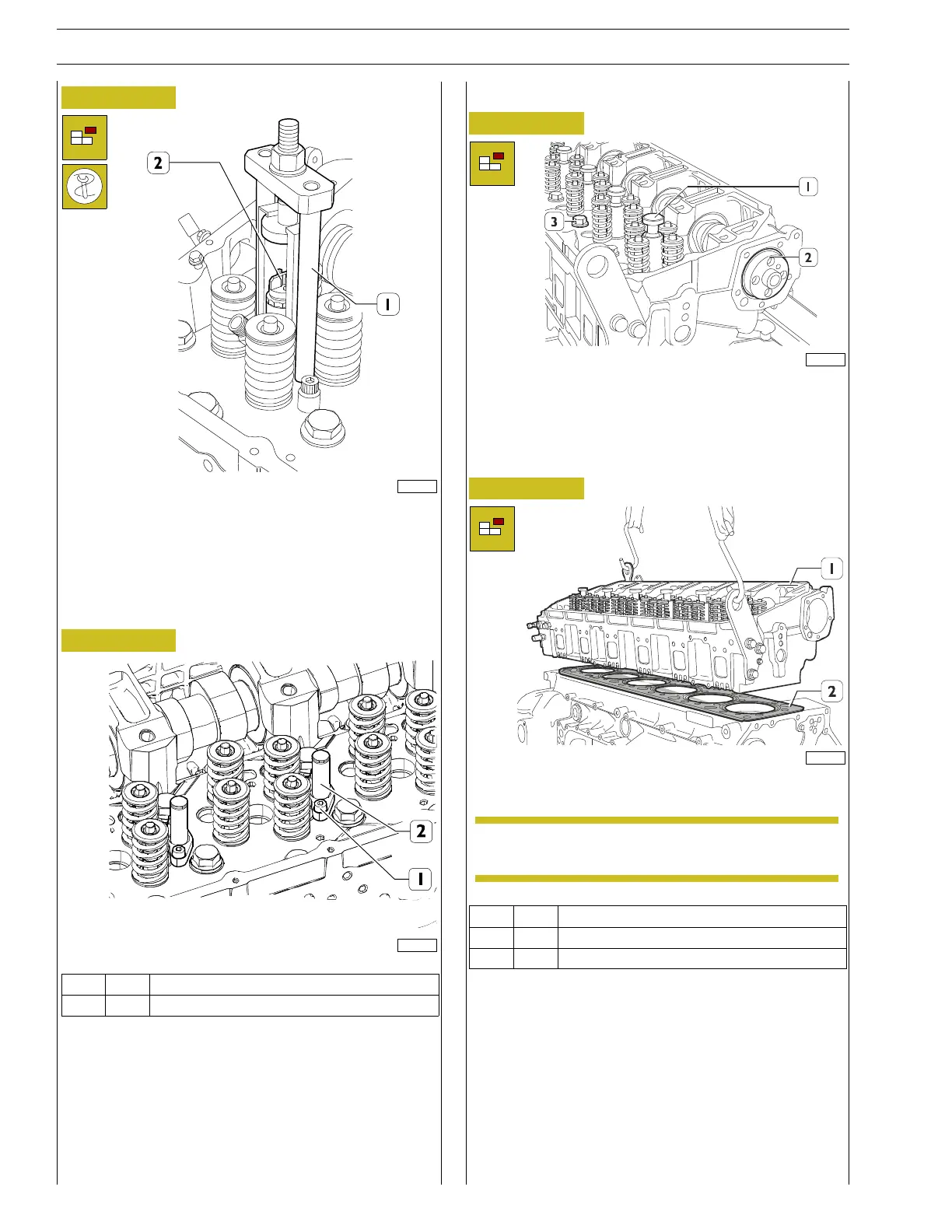

Figure 51
169826
Position the tool 99342157 for extraction the injectors (1) and
remove the injectors (2) from the head.
Removing the engine brake cylinders
Unscrew the screws (1) and remove the engine brake
cylinders (2).
Figure 52
227748
Ref. No. Description
(1) 12 Screws M8 X 1.25 X 20
Camshaft removal
Figure 53
60514
Mount suitable plugs inside electro-injector seats (1).
Remove the camshaft (2).
Cylinder head removal
Figure 54
60515
Unscrew the cylinder head screws .
NOTE The cylinder head fastening screws are to be
replaced each time you remove them.
Ref. No. Description
(-) 20 ScrewsM18X2X196
(-) 6 ScrewsM18X2X175
By means of metal ropes, lift the cylinder head (1).
Remove the seal gasket (2).
