44
SECTION 6 - GENERAL MECHANICAL OVERHAUL
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E

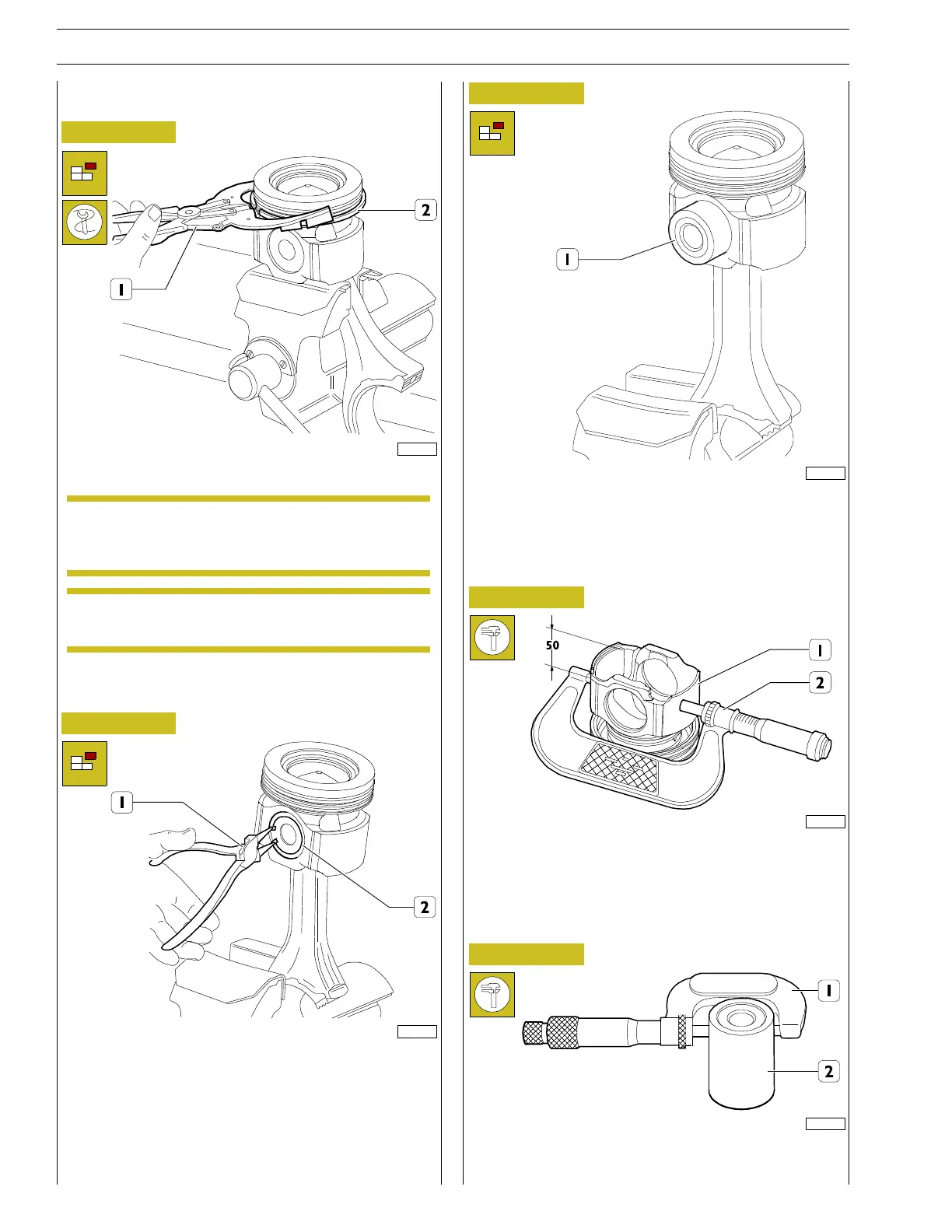

Circlips removal
Figure 91
155941
Remove the piston circlips (2) using the caliper 99360184 (1).
NOTE Pistons are equipped with three circlips: the first
is a sealing ring, with trapezoidal section; the
second is a claw seal ring; the third oil scraper.
NOTE Pistons are grouped into classes A and B
depending on diameter.
Piston removal
Figure 92
155942
Remove the piston pin circlips (2) using the round tipped
calipers (1).
Figure 93
155943
Remove the piston pin (1).
If removal is difficult use the appropriate drift.
Measuring the piston diameter
Figure 94
155944
Using a micrometer (2), measure the piston diameter (1) to
determine the assembly clearance; The diameter has to be
detected at the value indicated.
Measuring the piston pin diameter
Figure 95
155945
Measuring the pin diameter (2) with a micrometer (1).
