SECTION 2 - OPERATING DIAGRAMS
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E
Filter by-pass valve

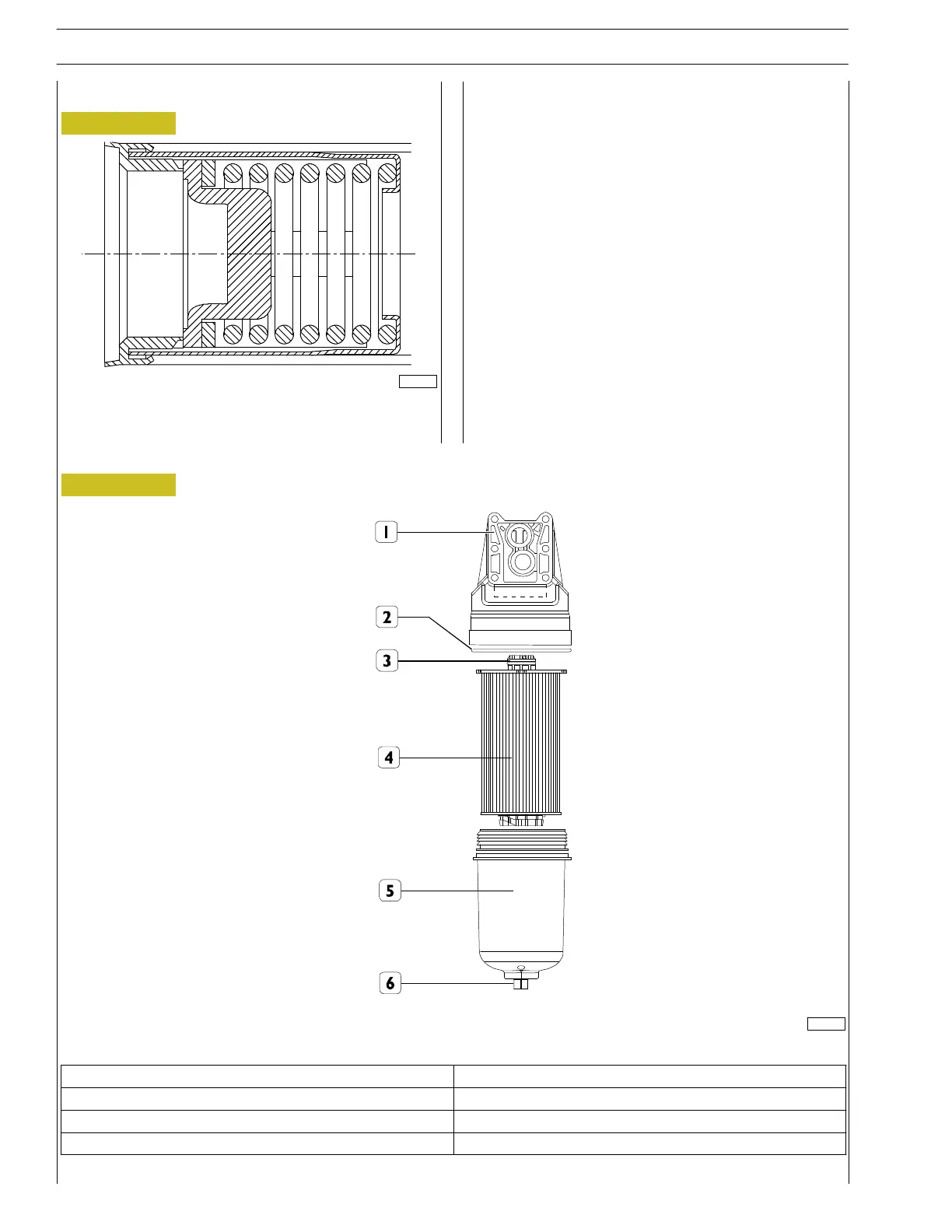

Figure 17
73545
The valve quickly opens at a pressure of: 3.4 ± 0.3 bar.
Engine oil filter
Figure 18
180257
1 Oil filter support - 2 Cap O- Rin g - 3 Cartridge O-Ring - 4 Filter element- 5 Closing cap - 6 Drain plug
Technical data
Maximum operating pressure 13 bar
Operating temperature -30 to 120 ˚C
By-pass valve opening pressure 3.4 ±0.3 bar

FPT CURSOR Series Specifications

General

Engine Type	Diesel
Configuration	Inline
Aspiration	Turbocharged
Fuel System	Common Rail
Cooling System	Liquid Cooled
