12
SECTION 4 - SCHEDULED MAINTENANCE
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E
Change air filter
See the instructions in the section AIR FILTER INSPECTION
AND CLEANING.

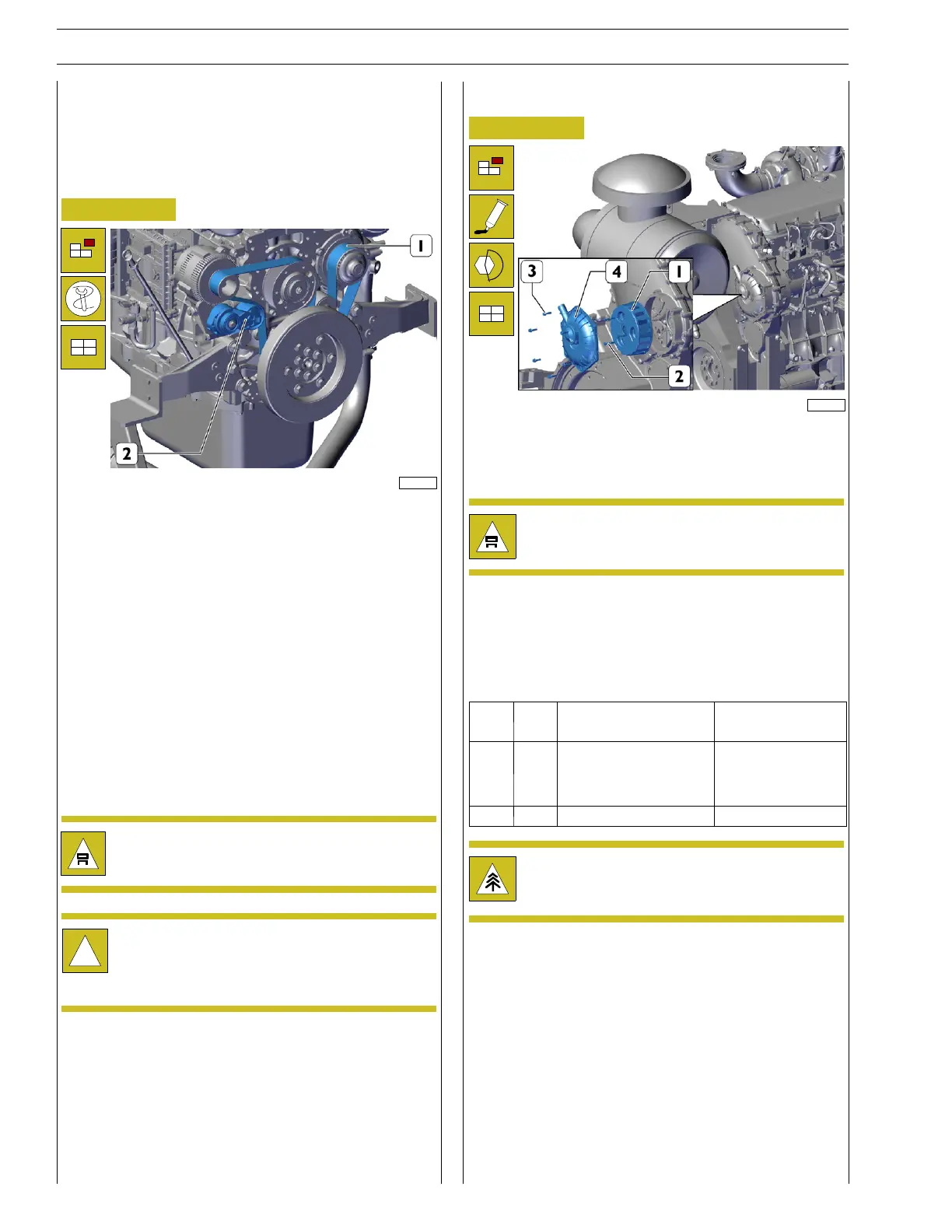

Replace auxiliary member drive belt
Figure 12
227784
Only proceed when the engine is not turning and is at low
temperature so as not to run the risk of burns.
- Remove the protection grille, radiator assembly and fan
complete with spacer.
- Using a 1/2 inch square wrench, operate on the belt ten-
sioner (2) and remove the control belt of the crankshaft
/ electromagnetic coupling / water pump / alternator (1)
pulley.
- Replace the worn belt with a new one and fit it on the
pulleys and guide rollers.
- Using the aforesaid tools, operate on the automatic belt
tensioner in order to key the new belts in their operating
position.
- Refit the fan complete with spacer, radiator assembly and
protection grilles.
Replace the belt if it shows signs of abrasion,
cracks or tears or if it is soiled with oil or fuel.
!
When the engine is off, but still hot, the belt may
start to move without warning. Wait for the engi-
ne temperature to decrease to prevent serious
danger of an accident.
Replacing blow-by filter element
Figure 13
227783
- Unscrew the screws (3) and remove the cover (4).
- Unscrew the screws (2) and remove the blow-by filter
element (1)
Carefully clean the seating of the filter and the
cover.
- Position the new blow-by filter element (1) in its seat.
- Apply some Loctite 243 on the screws (2) and tighten
them to the torque indicated in the table.
- Position the cover (4) and tighten the screws (3) to the
torque indicated in the table.
Ref.
No. Description
Tightening
torques
2 4
ScrewsM6X1X40
Phase 1
Phase 2
5Nm
15 Nm
3 6 ScrewsM6X1X25 10 ± 1 Nm
Dispose of consumable materials and the parts in
contact with them (for example filters) in accor-
dance with the law.
