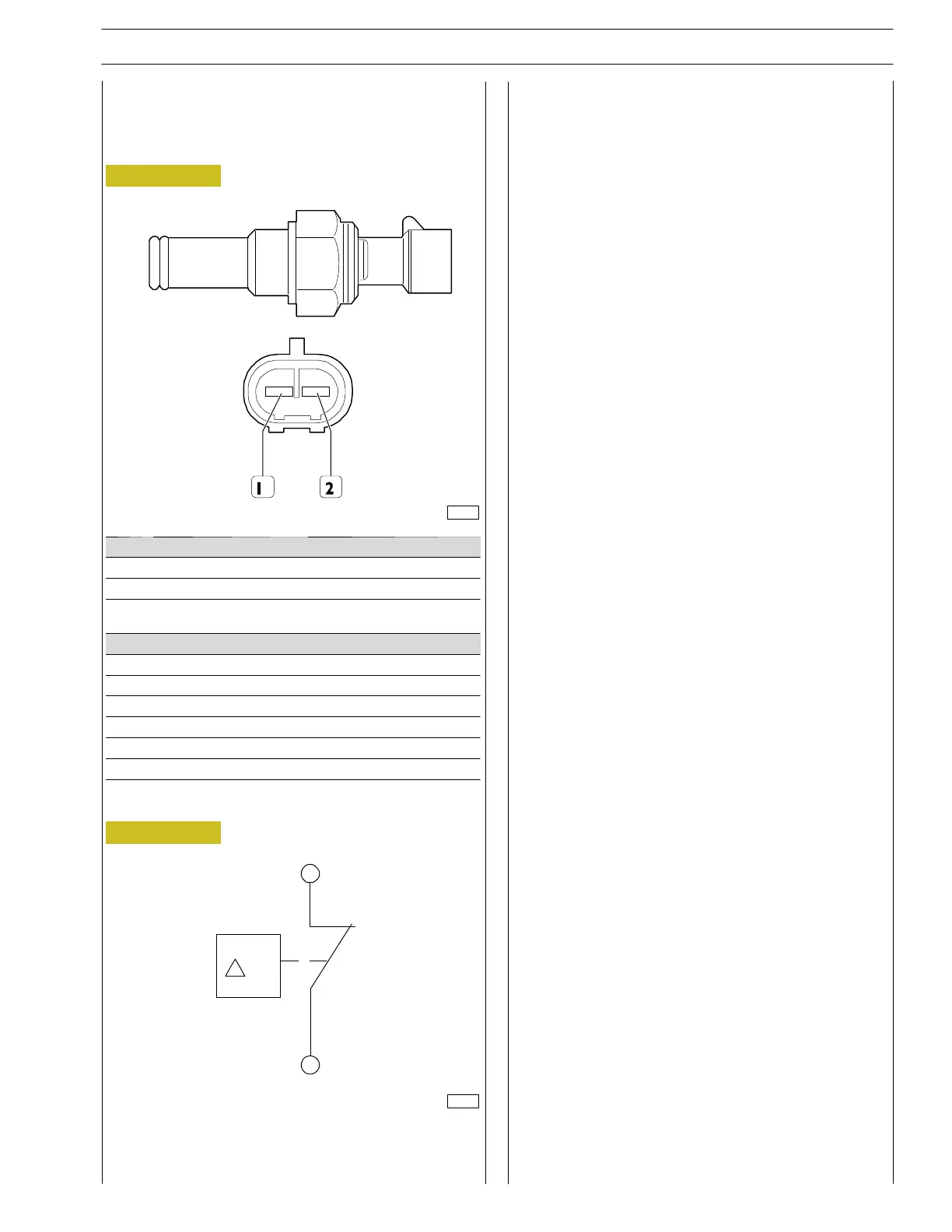

Figure 22
Figure 23
Fuel filter clogged sensor
It is a normally closed electric sensor whic h identifies t h e
clogged fuel filter by calculating the pressure between its two
doors.
P
SECTION 3 - ELECTRIC EQUIPMENT
15
CURSOR SERIES
Print P4D32C006 E Base - 03/2015
Pin Description ECU pin
1 Ground (-) EDC17, pin A/78
2 Signal EDC17, pin A/79
Specifications Measurement Conditions
Rated voltage 12 / 24 V
Maximu m switched voltage 200 mA
Differential opening pressure 210 ± 10 kPa
Maximum working pressure 500 kPa
Operating temperature -40˚C/+120˚C
tightening torque 30 ± 2 Nm

FPT CURSOR Series Specifications

General

Engine Type	Diesel
Configuration	Inline
Aspiration	Turbocharged
Fuel System	Common Rail
Cooling System	Liquid Cooled
