FPT CURSOR Series User Manual

SECTION 2 - OPERATING DIAGRAMS
9
CURSOR SERIES
Print P4D32C006 E Base - 03/2015

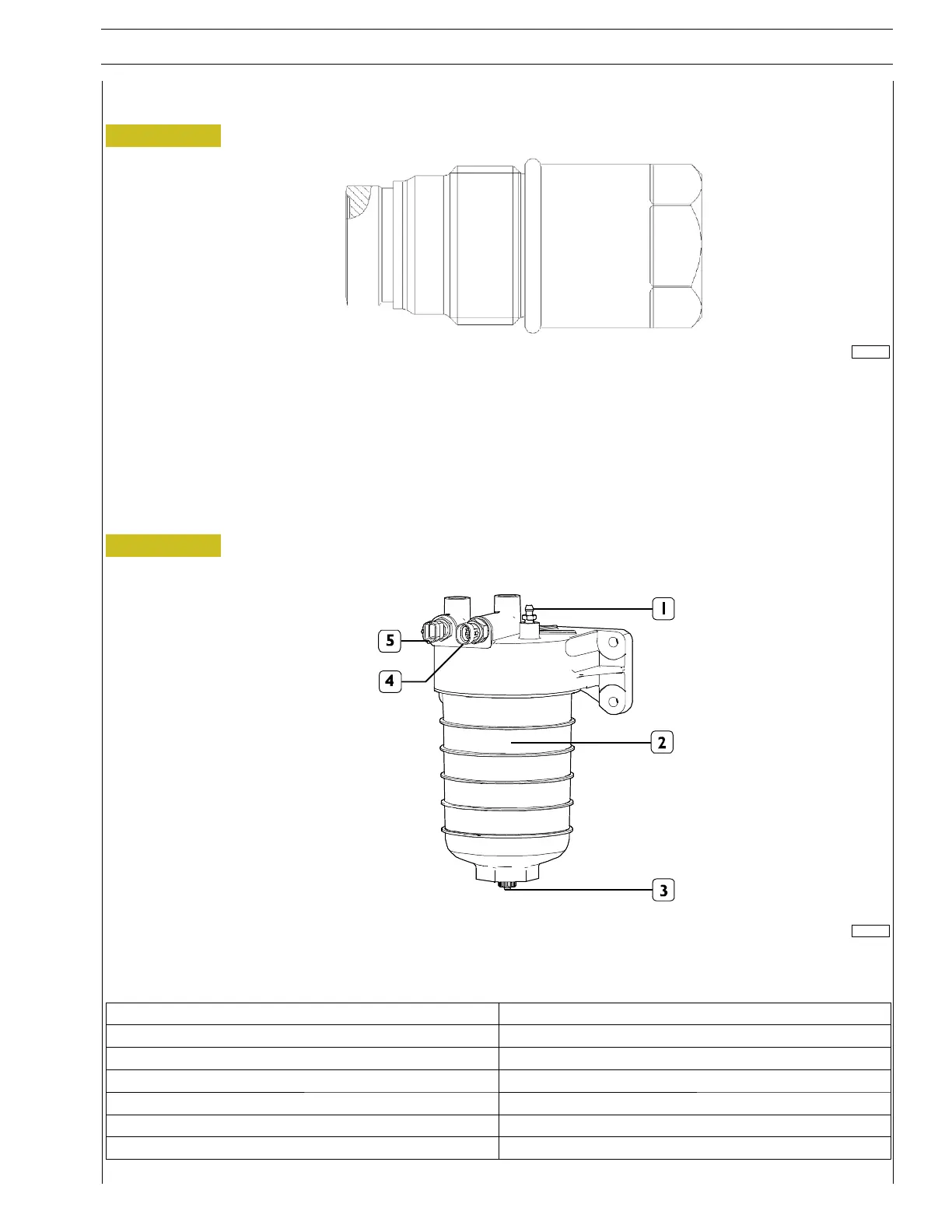

Pressure limiter valve
Figure 8
158450
It is a safety valve mounted on the hydraulic accumulator which prevents the pressure of the fuel in the rail from exceeding the
threshold 2400 bar.
It consists of a shutter and a spring, calibrated so that when the pressure in the rail reaches too high a value, the valve regulates
it by releasing part of the fuel to the tank.
Furthermore, in case of failure of the injection pressure control system, it allows the engine to function with limited performance.
Fuel filter
Figure 9
221058
1. Bleed fitting - 2 . Fuel filter - 3. Drain valve - 4. Clogged filter sensor - 5. Fuel temperature sensor - 6. Fuel filter inlet -
7. Fuel filter outlet
Technical data
Maximum load 750 l/h
Nominal pressure <13bar
Operating temperature -40 to 120 ˚C
Pressure drop with new filter <0.5 bar @ 750 l/h
Pressure drop with filter at end of life >2 bar
Capacity 1.7 l
