SECTION 6 - GENERAL MECHANICAL OVERHAUL
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E
Big-end half-bearing selection (nominal diameter pins)
Select the big end half-bearings by referring to the markings on the connecting-rod body, in the indicated position.
NOTE The number indicating the diameter class of the seat for half-bearings can be: 1, 2 or 3
1) Serial No.
2) Letter indicating the weight class
A = 5502 - 5535 g.
B = 5536 - 5569 g.
C = 5570 - 5602 g.
3) Number indicating the selection of the diameter of the big end bearing seat
1 = 100.000- 100.010mm
2 = 100.011- 100.020mm
3 = 100.021- 100.030mm
4) Engine type
5) Connecting rod identification plate

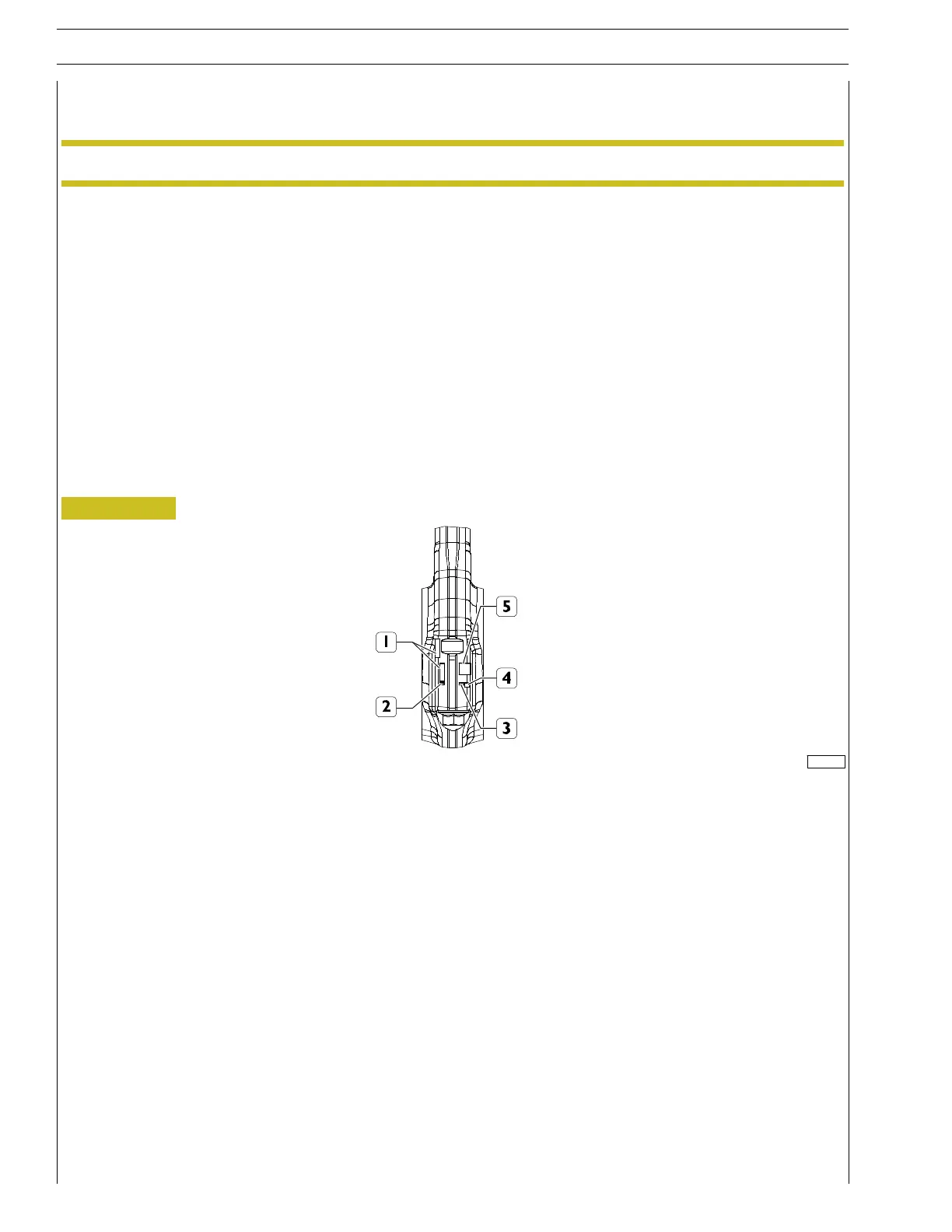

Figure 88
155939
