SECTION 6 - GENERAL MECHANICAL OVERHAUL
69
CURSOR SERIES
Print P4D32C006 E Base - 03/2015

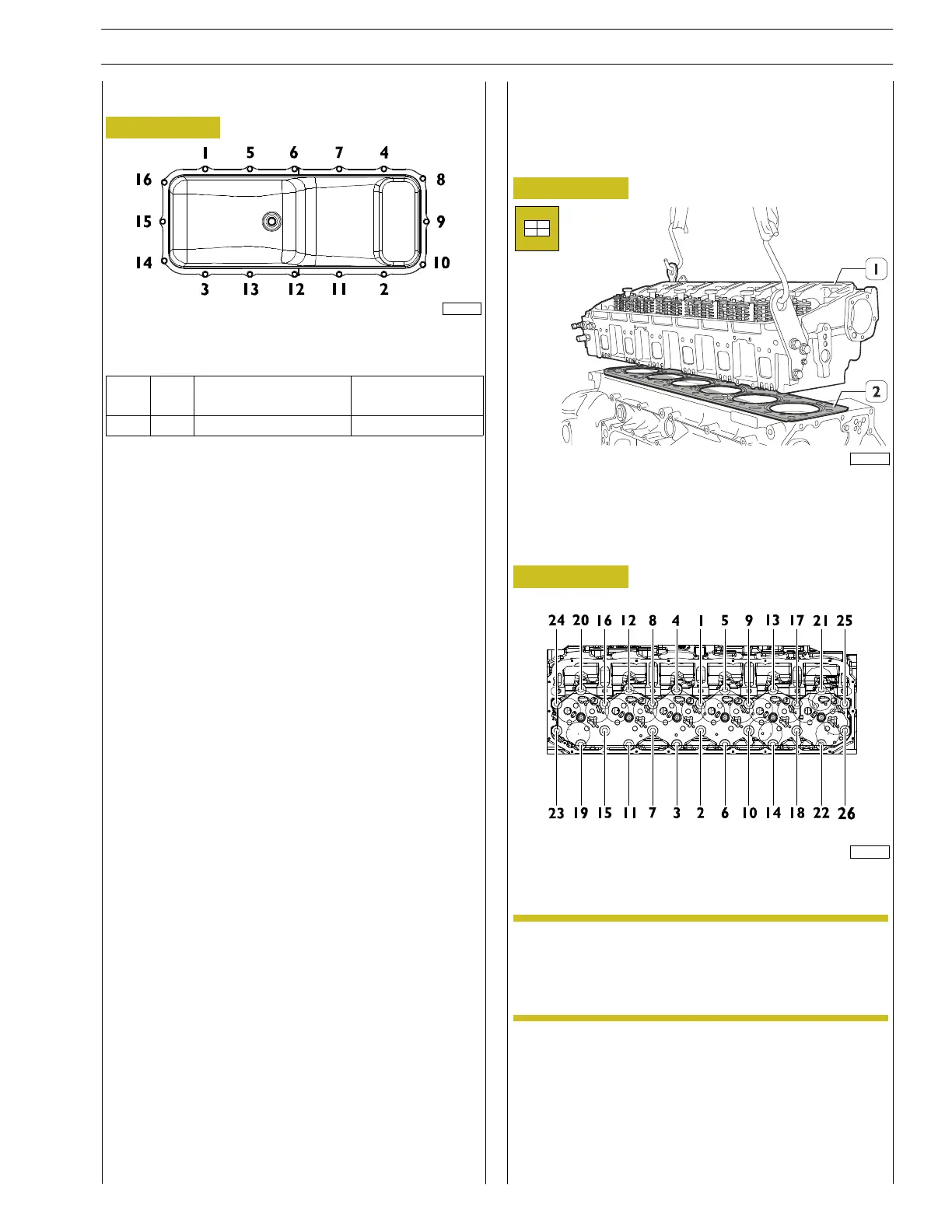

Tightening sequence
Figure 160
155922
Fit the drain plug of the oil sump and tighten to the torque indi-
cated in the table.
Ref.
No. Description
Tightening
torques
(-) 1 M22 X 1.5 40 ± 10 Nm
Turn the engine on the rotating stand.
ASSEMBLY OF ENGINE AT BENCH
(COMPONENTS AT THE TOP PART 1)
Cylinder head assembly
Figure 161
60515
Check that the pistons: 1 and 6 are exactly at the T.D.C.
Put the sealing gasket (2) on the crankcase.
Place the cylinder head (1) on the crankcase.
Figure 162
225061
Tighten the fastening screws in the sequence shown in the
figure.
NOTE New screws must be used at each assembly of
the head.
Lubricate the thread of the screws with engine
oil before assembly.
