FPT CURSOR Series User Manual

SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
49
CURSOR SERIES
Print P4D32C006 E Base - 03/2015

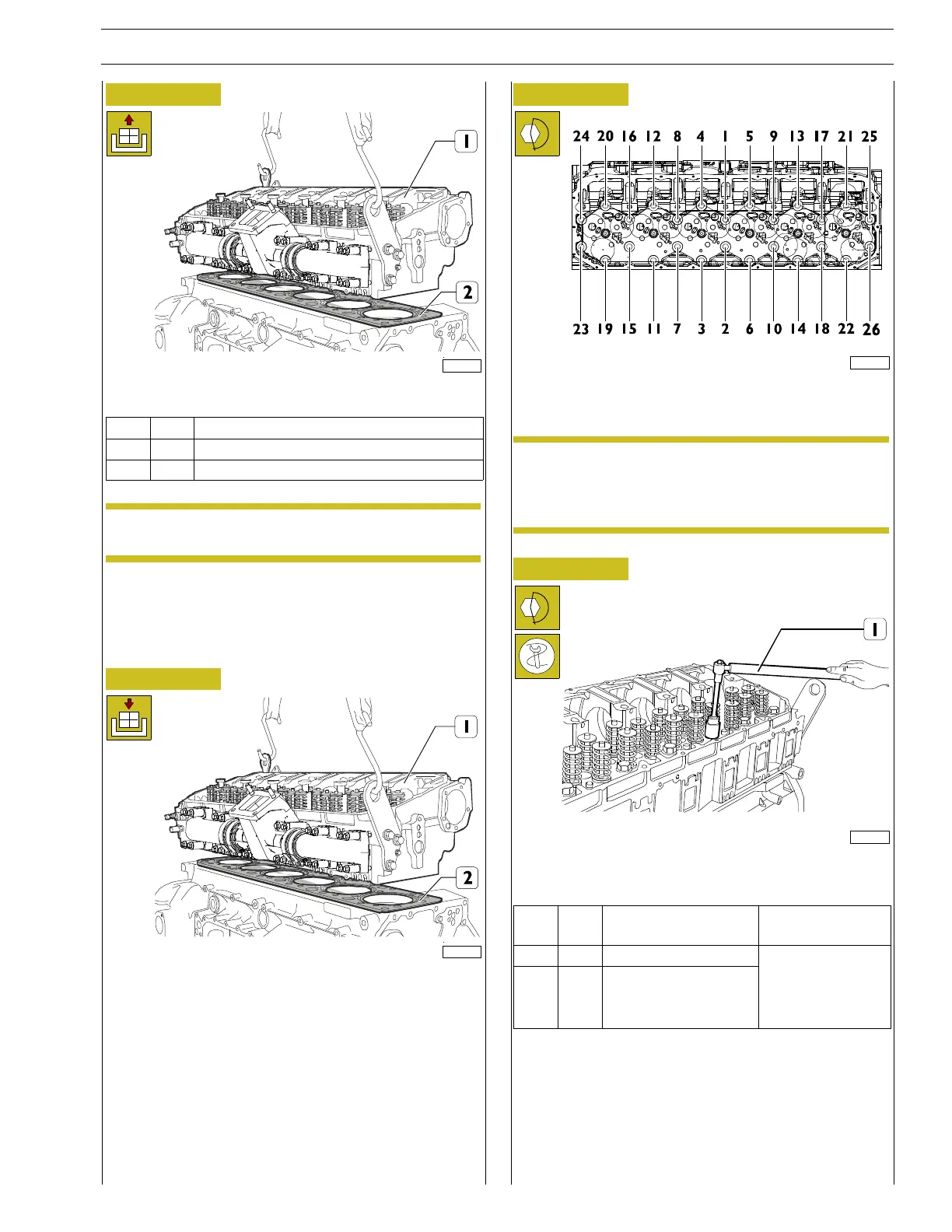

Figure 144
227750
Unscrew the cylinder head screws .
Ref.
No. Description
(-) 20 ScrewsM18X2X196
(-) 6 ScrewsM18X2X175
NOTE The cylinder head fastening screws are to be
replaced each time you remove them.
By means of metal ropes, lift the cylinder head (1).
Remove the seal gasket (2).
Refitting
Figure 145
227750
Check that the pistons: 1 and 6 are exactly at the T.D.C.
Put the sealing gasket (2) on the crankcase.
Place the cylinder head (1) on the crankcase.
Figure 146
225061
Tighten the fastening screws in the sequence shown in the
figure.
NOTE New screws must be used at each assembly of the
head.
Lubricate the thread of the screws with engine oil
before assembly.
Figure 147
60565
Pre-tighten using the torque wrench (1) to the torque shown
in the table.
Ref.
No. Description
Tightening
torques
(-) 20 Screws M18 X 2 X 196
(-) 6
Screws M18 X 2 X 175
Step 1 75 Nm
Step 2 150 Nm
