48
SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E

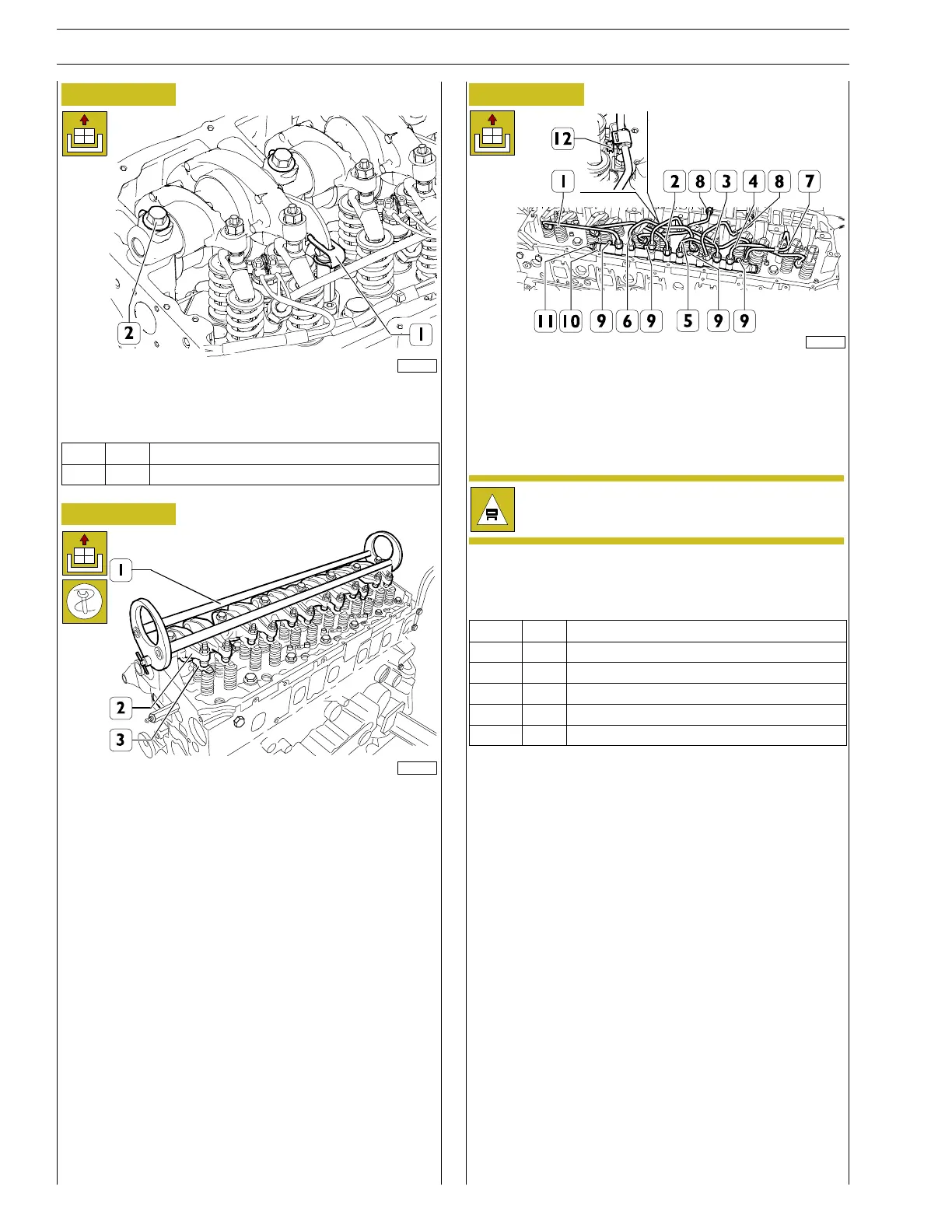

Figure 141
227745
Release the retainer springs of the engine brake (1).
Unscrew the screws (2) securing the rocker arm shaft.
Ref.
No. Description
(2) 7 ScrewsM16X1.5X76
Figure 142
224083
Use the specified tool 99360553 (1) on the rocker arm shaft
(2) and remove the shaft (2) and crosspieces (3) from the
cylinder head.
Figure 143
225019
Unscrew the fittings (8), the screw of the bracket (12) and
remove the high pressure fuel supply pipes (8).
Unscrew the fittings from the rail and the injectors and remove
thehighpressurefuelpipes(1,2,3,4,5,6)andthefuelreturn
pipe (7) from the head.
The high pressure fuel pipes must be replaced at each
disassembly.
Disconnect the electric connection from pressure sensor (11).
Unscrew the fastening screws (9) and remove the rail (10).
Ref.
No. Description
(1 - 6) 12 Fittings M16 X 1.5
(7) 2 Fittings M16 X 1.5
(8) 4 Fittings M16 X 1.5
(9) 3 Screws M8 X 1.25 X 55
(12) 2 Screws M8 X 1.25 X 16
