SECTION 2 - OPERATING DIAGRAMS
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E
Oil pump

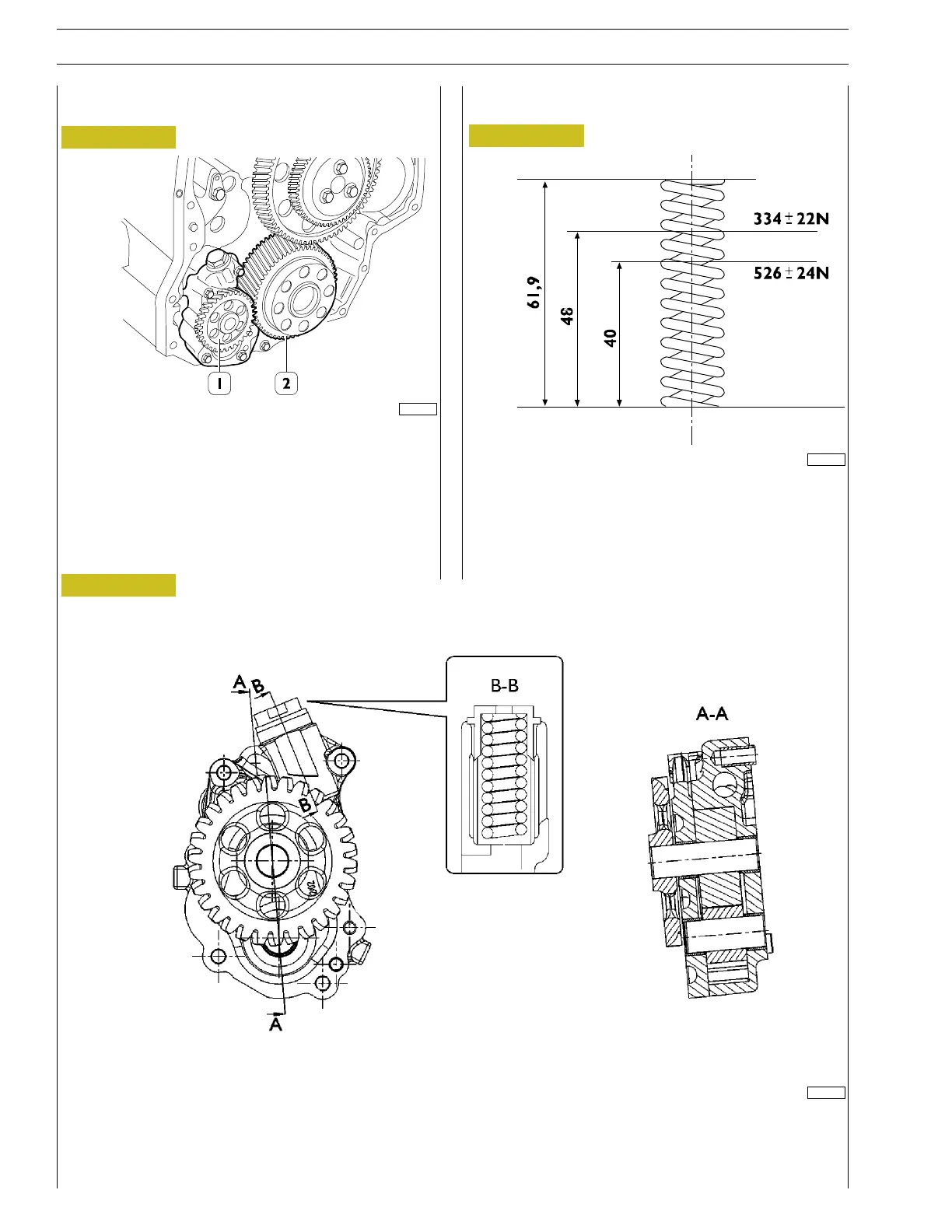

Figure 11
60560
The oil pump (1) shall not be overhauled. If you find any da-
mage, replace the entire oil pump.
To change the gearing (2) of the crankshaft, see the relevant
section.
overpressure valve
Figure 12
73540
MAIN DATA TO CHECK THE SAFETY
VALVE SPRING
Figure 13
108846
OIL PUMP SECTION
Overpressure safety valve - Initial opening pressure 10 1bar.
