SECTION 6 - GENERAL MECHANICAL OVERHAUL
19
CURSOR SERIES
Print P4D32C006 E Base - 03/2015

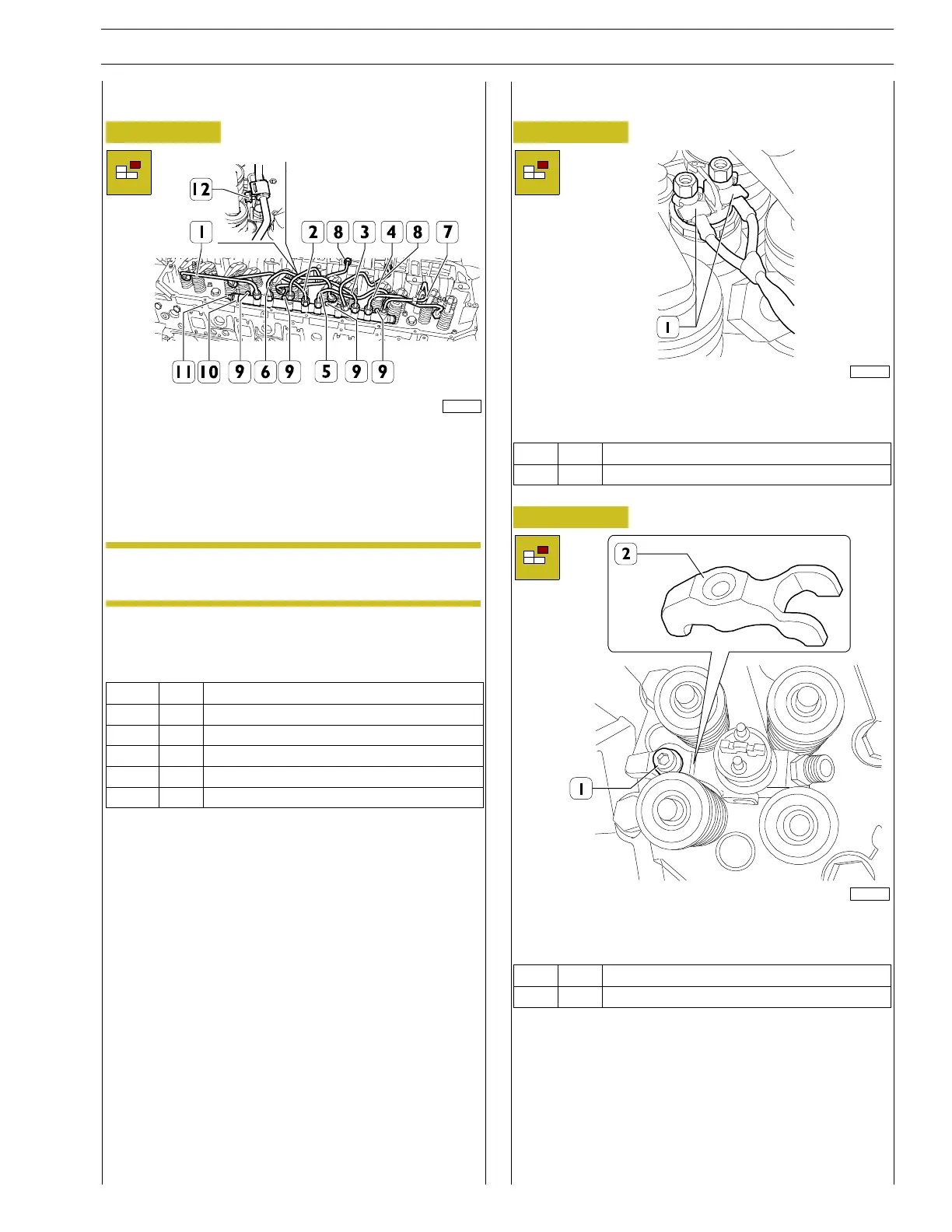

Rail removal
Figure 48
225019
Unscrew the fittings (8), the screw of the bracket (12) and
remove the high pressure fuel supply pipes (8).
Unscrew the fittings from the rail and the injectors and remove
the high pressure fuel pipes (1, 2, 3, 4, 5, 6) and the fuel return
pipe (7) from the head.
NOTE The high pressure fuel pipes must be replaced
at each disassembly.
Disconnect the electric connection from pressure sensor (11).
Unscrew the fastening screws (9) and remove the rail (10).
Ref.
No. Description
(1 - 6) 12 Fittings M16 X 1.5
(7) 2 Fittings M16 X 1.5
(8) 4 Fittings M16 X 1.5
(9) 3 Screws M8 X 1.25 X 55
(12) 2 Screws M8 X 1.25 X 16
Injector removal
Figure 49
183457
Unscrew the nuts and disconnect the electrical connections
(1) from the electro-injectors.
Ref.
No. Description
(1) 12 Nuts M4
Figure 50
169827
Remove the screws (1) from the brackets (2) supporting the
injectors.
Ref.
No. Description
(1) 6 Screws M8 X 1.25 X 45
