FPT CURSOR Series User Manual

SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
37
CURSOR SERIES
Print P4D32C006 E Base - 03/2015
ROCKER ARM SHAFT
REMOVAL-REFITTING
Removal

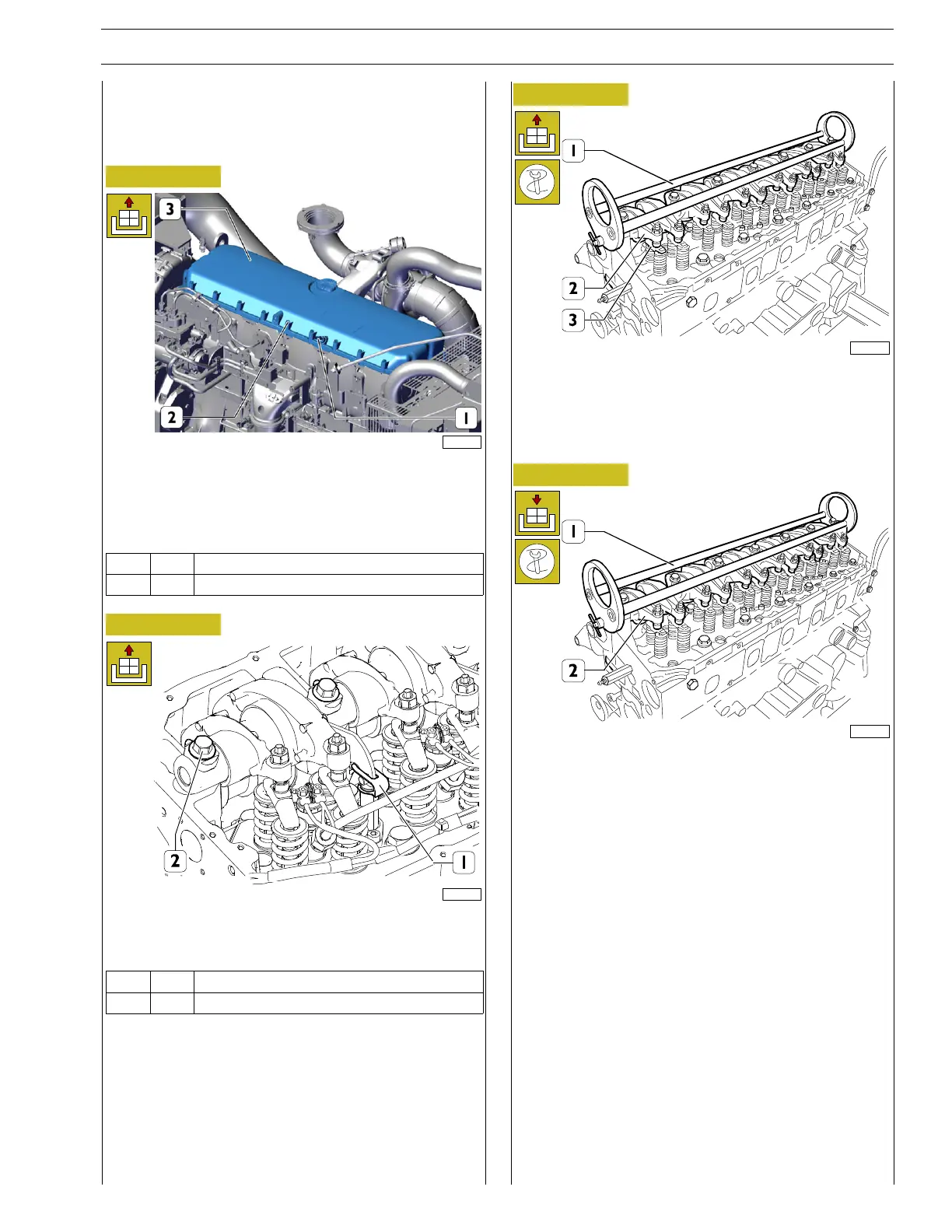

Figure 101
227771
Disconnect the electric connection of engine crankcase
pressure sensor.
Unscrew the fastening screws (2) and remove the tappet
cover (3) together with the gasket.
Ref.
No. Description
(2) 24 M6 x 1 screws
Figure 102
227745
Release the retainer springs of the engine brake (1).
Unscrew the screws (2) securing the rocker arm shaft.
Ref.
No. Description
(2) 7 Screws M16 X 1.5 X 76
Figure 103
224083
Use the specified tool 99360553 (1) on the rocker arm shaft
(2) and remove the shaft (2) from the cylinder head. Remove
the crosspieces (3) from the cylinder head.
Refitting
Figure 104
225045
Apply the tool 99360553 (1) to the rocker arm shaft (2) and
mount the shaft on the cylinder head.

FPT CURSOR Series Specifications

General

Engine Type	Diesel
Configuration	Inline
Aspiration	Turbocharged
Fuel System	Common Rail
Cooling System	Liquid Cooled
