72
SECTION 6 - GENERAL MECHANICAL OVERHAUL
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E

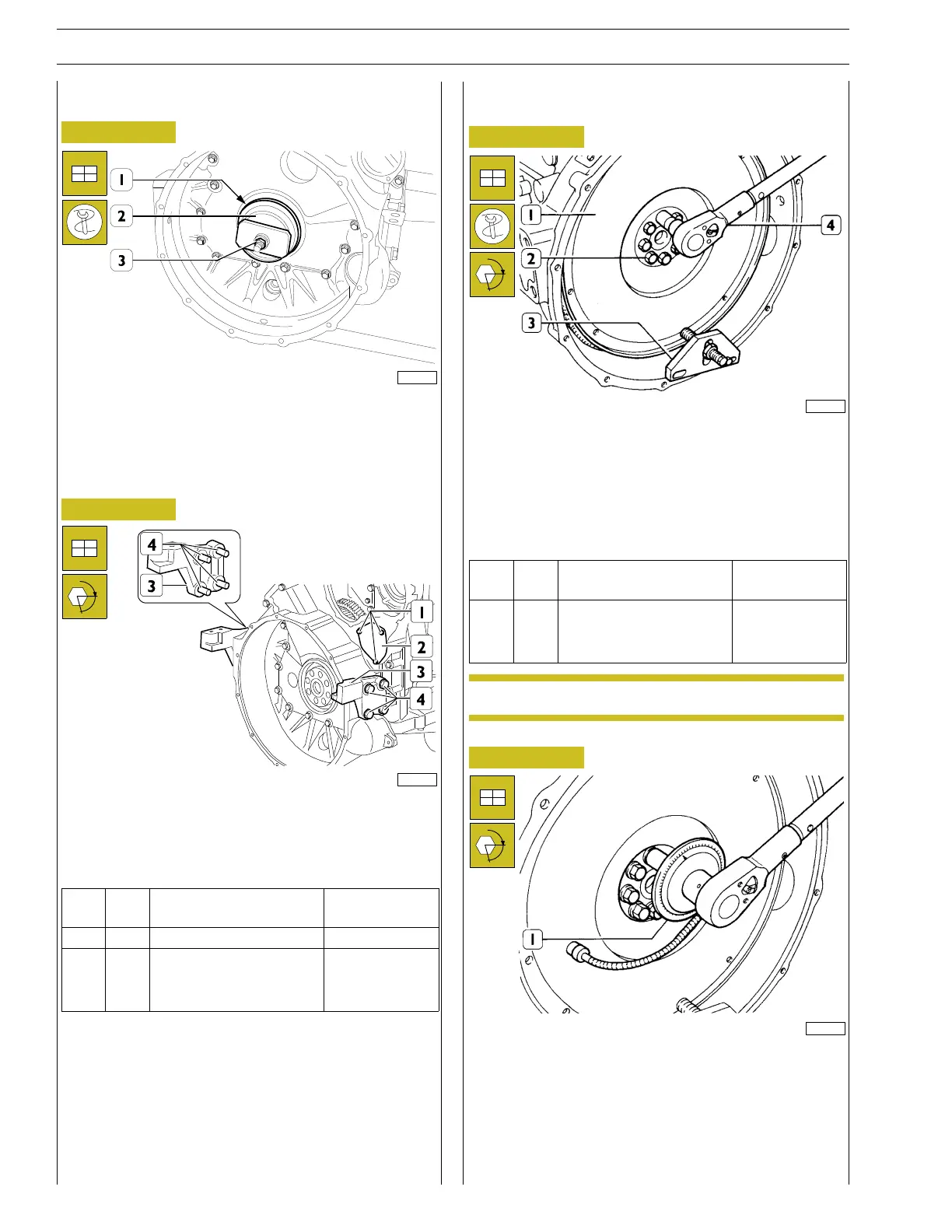

Crankshaft rear gasket assembly
Figure 171
60568
Key the sealing gasket (1) onto the crankshaft, fit the keying
device 99346260 (2) and while tightening the nut (3) drive in
the sealing gasket.
Engine support Assembly
Figure 172
α
221109
Fit the cover (2) together with the new O-ring and tighten the
screws (1) to the torque indicated in the table.
Fit the engine suspensions (3) onto the flywheel case and
tighten the screws (4) to the torque indicated in the table.
Ref.
No. Description
Tightening
torques
(1) 3 Screws M8 X 1.25 X 20 20.5 ± 2.5 Nm
(4) 8
M16 x 2 screws
Step 1 120 Nm
Step 2 55Ëš
Engine flywheel assembly
Figure 173
α
49037
Position the flywheel (1) on the crankshaft, lubricate the thread
of the screws (2) with engine oil and screw them down.
Block rotation using the tool used to fasten the engine flywheel
housing 99360351 (3);
Using the torque wrench (4), tighten the screws (2) to the
torque indicated in the table.
Ref.
No. Description
Tightening
torques
(2) 8
Screws M18 X 1.5 X 72
Step 1 120±6Nm
Step 2 90Ëš
NOTE Lubricate the screws with engine oil.
Figure 174
α
49036
Tighten to angle with wrench 99395216 (1).
