SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E

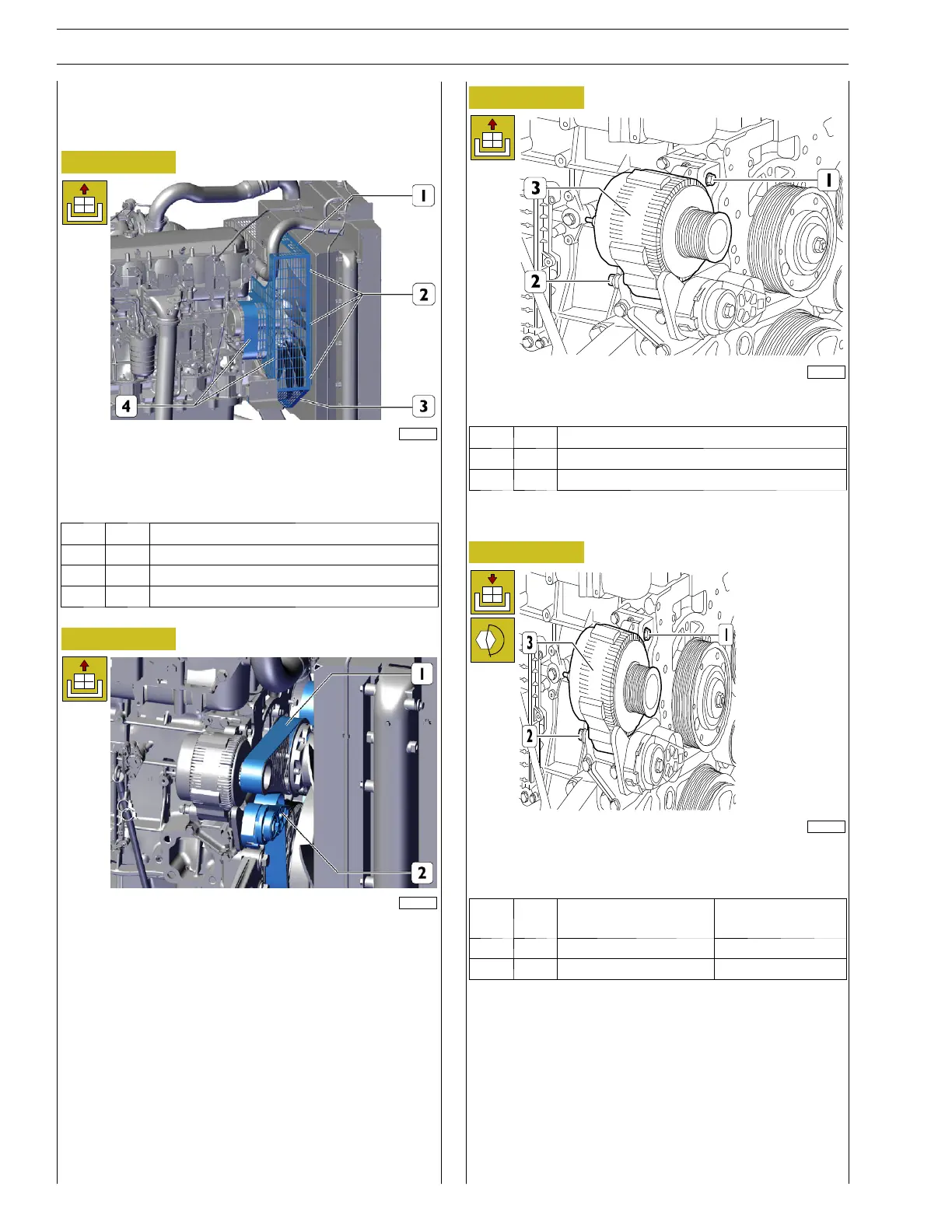

ALTERNATOR REMOVAL-REFITTING
Removal
Figure 13
227756
Undo the top screws (1), side screws (2) on intake side and
bottom screws (3) and remove the grilles (4) and () that
protect the fan and alternator.
Ref.
No. Description
(1) 3 Screws M8x1.25x20
(2) 3 Screws M8x1.25x20
(3) 1 Screw M8x1.25x20
Figure 14
227757
With the help of a 1/2 square-head wrench, act on the belt
tensioner (2) and remove the ancillary belt (1) from the
alternator pulley.
Figure 15
221083
Unscrew the screws (1, 2) and remove the alternator (3).
Ref.
No. Description
(1) 1 M8 x 1.25 screws
(2) 1 M10x1.5screws
Refitting
Figure 16
221083
Fit the alternator (3) and tighten the screws (1, 2) to the
torque indicated in the table.
Ref.
No. Description
Tightening
torques
(1) 1 M8 x 1.25 screws 24.5 ± 2.5 Nm
(2) 1 M10x1.5screws 44 ± 4 Nm
