SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
9
CURSOR SERIES
Print P4D32C006 E Base - 03/2015

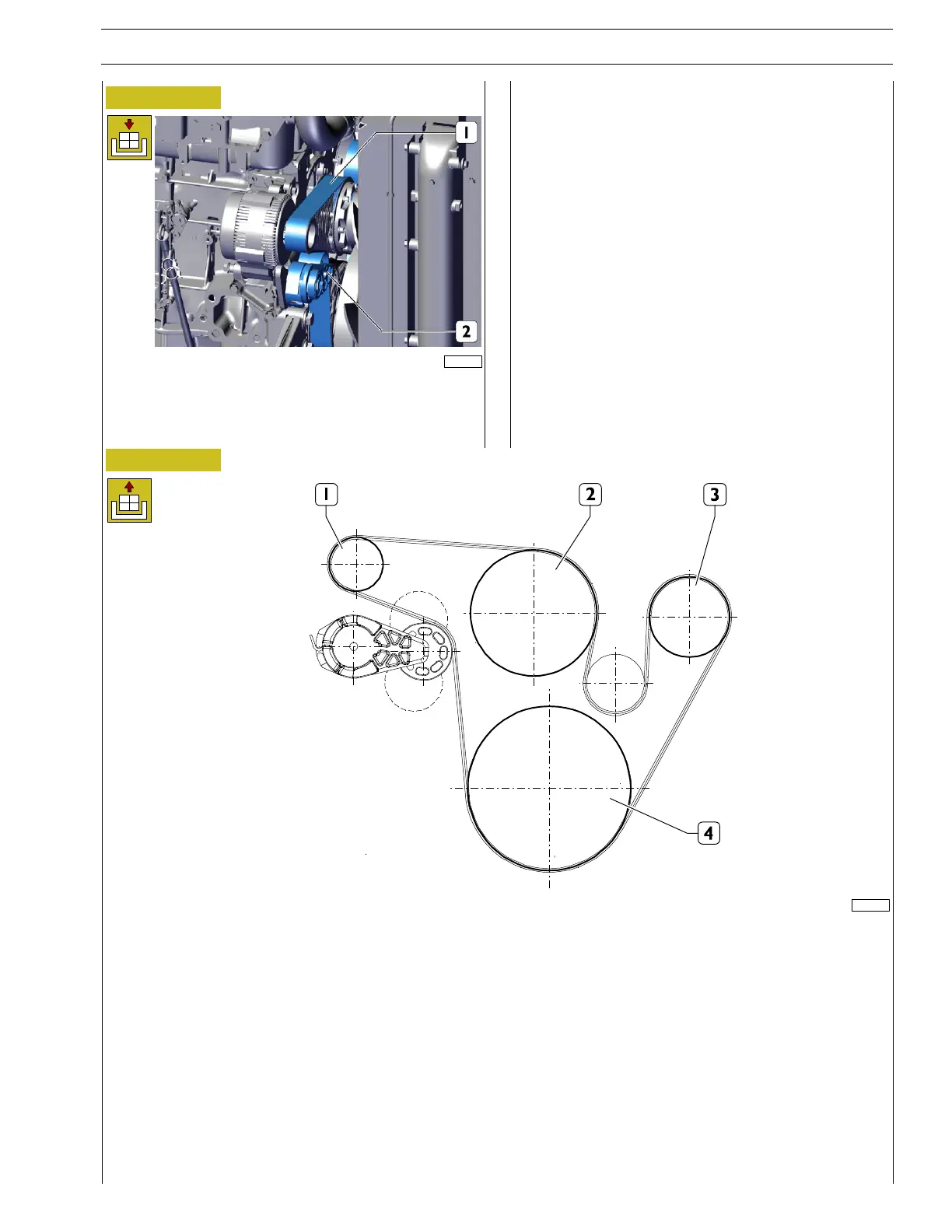

Figure 17
227757
With the help of a 1/2 square-head wrench, act on the belt
tensioner (2) and fit the ancillary belt (1) on the alternator
pulley.
Figure 18
150675
ASSEMBLY DIAGRAM OF THE PULLEY - WATER PUMP - ALTERNATOR DRIVE BELT
1. Alternator - 2. Electromagnetic coupling - 3. Water pump - 4. Crankshaft
