SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E

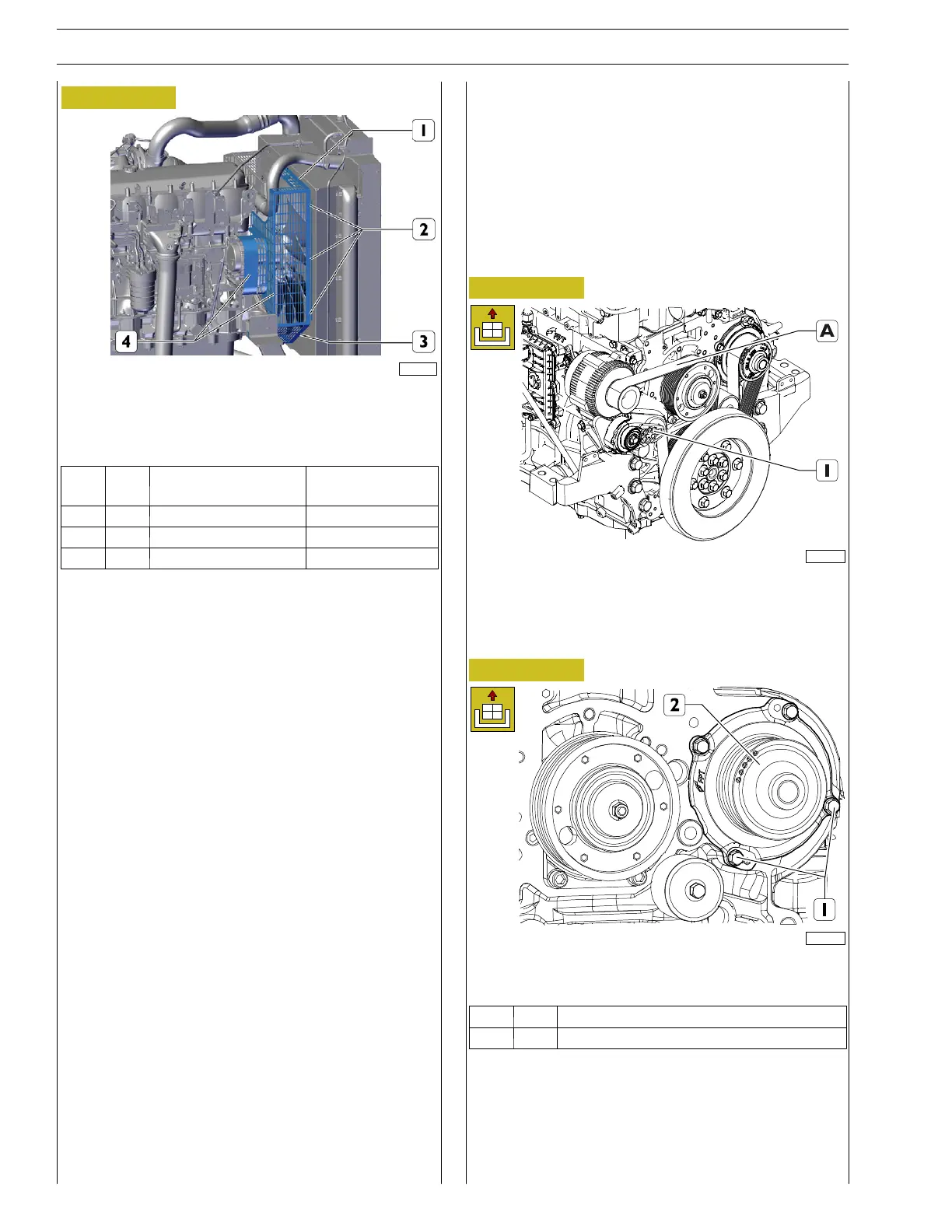

Figure 19
227756
Laterally install the fan and alternator protection grilles (4).
Tighten and lock the top screws (1) the bottom screw (3) and
side screws (2) to the torque in the table.
Ref.
No. Description
Tightening
torques
(1) 3 Screws M8x1.25x20 18 ± 4 Nm
(2) 3 Screws M8x1.25x20 18 ± 4 Nm
(3) 1 Screw M8x1.25x20 18 ± 4 Nm
WATER PUMP REMOVAL-REFITTING
Removal
Remove the protection grilles as described in the procedure
”PROTECTION GRILL REMOVAL - REFITTING”.
Remove the radiator assembly as described in the procedure
”RADIATOR ASSEMBLY REMOVAL - REFITTING”.
Remove the fan as described in the procedure ”FAN
REMOVAL - REFITTING”.
Figure 20
225040
Using a 1/2 inch square wrench, operate on the belt tensioner
(1) and remove the control belt of the crankshaft /
electromagnetic coupling / water pump / alternator (A)
pulley.
Figure 21
224087
Unscrew the screws (1) and remove the water pump (2) and
its gasket.
Ref.
No. Description
(1) 3 Screws M8 X 1.25 X 20
