40
SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E

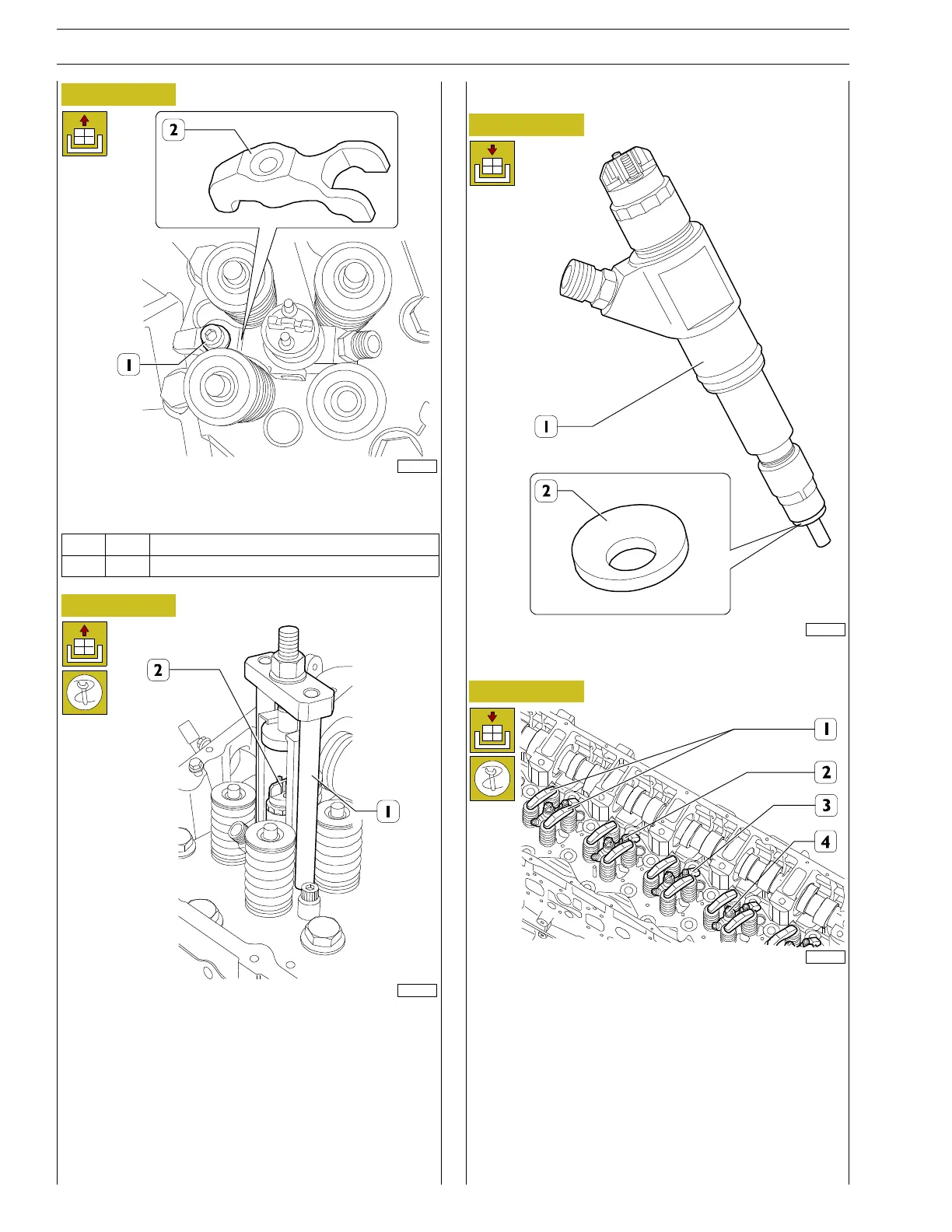

Figure 113
169827
Remove the screws (1) from the brackets (2) supporting the
injectors.
Ref.
No. Description
(1) 6 Screws M8 X 1.25 X 45
Figure 114
169826
Position the specified tool 99342157 (1) and extract the
injectors (2) from the head.
Refitting
Figure 115
169828
Fit the sealing gasket (2) on the injectors (1).
Figure 116
225044
Fit the retaining brackets (3) on the injectors (4) and position
them in the relevant seats in the cylinder head. Position the
screws (2)
Fit the crosspieces (1) on the valve stem all with the largest
hole on the same side.
To Next Page
