SECTION 2 - OPERATING DIAGRAMS
13
CURSOR SERIES
Print P4D32C006 E Base - 03/2015

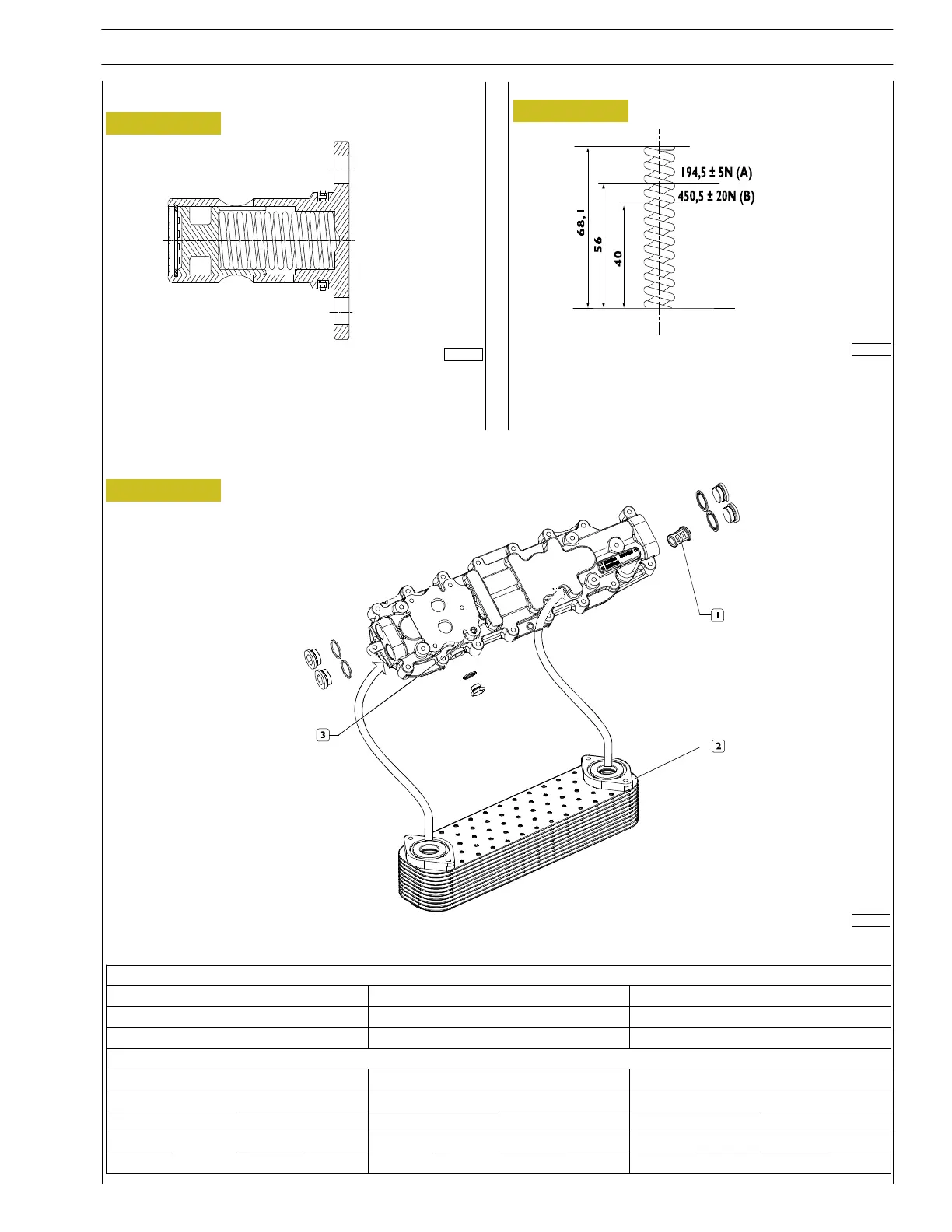

Oil pressure regulator valve
Figure 14
161256
The oil pressure relief valve is located on the left-hand side
of the crankcase.
Start of opening pressure 5 bar.
Figure 15
161269
A: Opening Start - B: Opening End
MAIN DATA TO CHECK THE PRESSURE RELIEF VALVE
SPRING
Heat exchanger
180296
Figure 16
1 By-pass valve - 2 Heat exchanger - 3 Oil filter su pport seat
TECHNICAL D ATA
Oil circuit Water circuit
Pressure 5 . 10 bar 2bar
Operating temperature 90 to 130 ˚C 110 ˚C
Performance
Hot side Cold side
Capacity 136 l/mn 14.3 l/s
Intake time 115 ˚C 90 ˚C
Oil temp. difference 11 to 10.45 ˚C -
Oil pressure decrease <= 65 + 20% kPA -
