96
SECTION 6 - GENERAL MECHANICAL OVERHAUL
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E

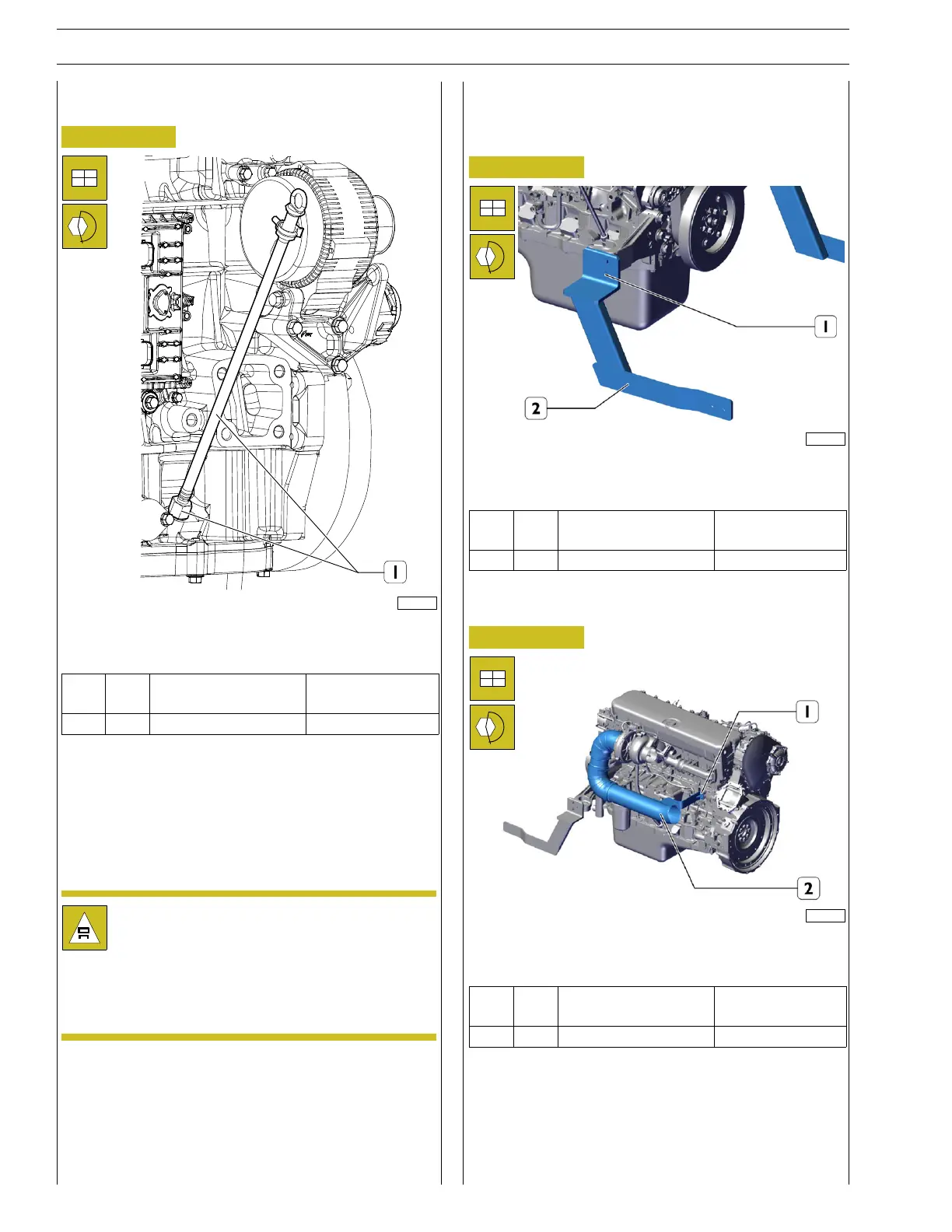

Assembly of the dipstick for checking the oil
Figure 241
224058
Reposition the oil dipstick (1) into its seat and tighten the nut
to the torque shown in the table.
Ref.
No. Description
Tightening
torques
(1) 1 Nut M18 X 1.5 50 ± 5 Nm
Fitting the engine cable
Fit the engine electric cable into its seat connecting it to the
control unit and all sensors/transmitters to which it is
connected.
When completing assembly, refill with engine oil using type and
amount specified.
Useonlyengineoilwithrecommended
specifications.
Failure to observe this requirement may void the
warranty.
Check oil level using the dipstick; the level must be
around the MAX mark n the dipstick.
Assembly of G-Drive components
Fitting of radiator assembly brackets
Figure 242
227775
Fit the brackets (2) that support the radiator assemblies into
their seats and tighten screws (1) totorque in table.
Ref.
No. Description
Tightening
torques
(1) 4 M12x1.75 screws 69 ± 14 Nm
Assembly of radiator assembly pipes tp engine
Figure 243
227774
Connect combustion air intake pipe to the turbocharger (2)
and, tighten bracke and screws (1) to the torque in the table.
Ref.
No. Description
Tightening
torques
(1) 2 Screws M8 18 ± 4 Nm
