SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E
TURBOCHARGER
REMOVAL-REFITTING
Removal

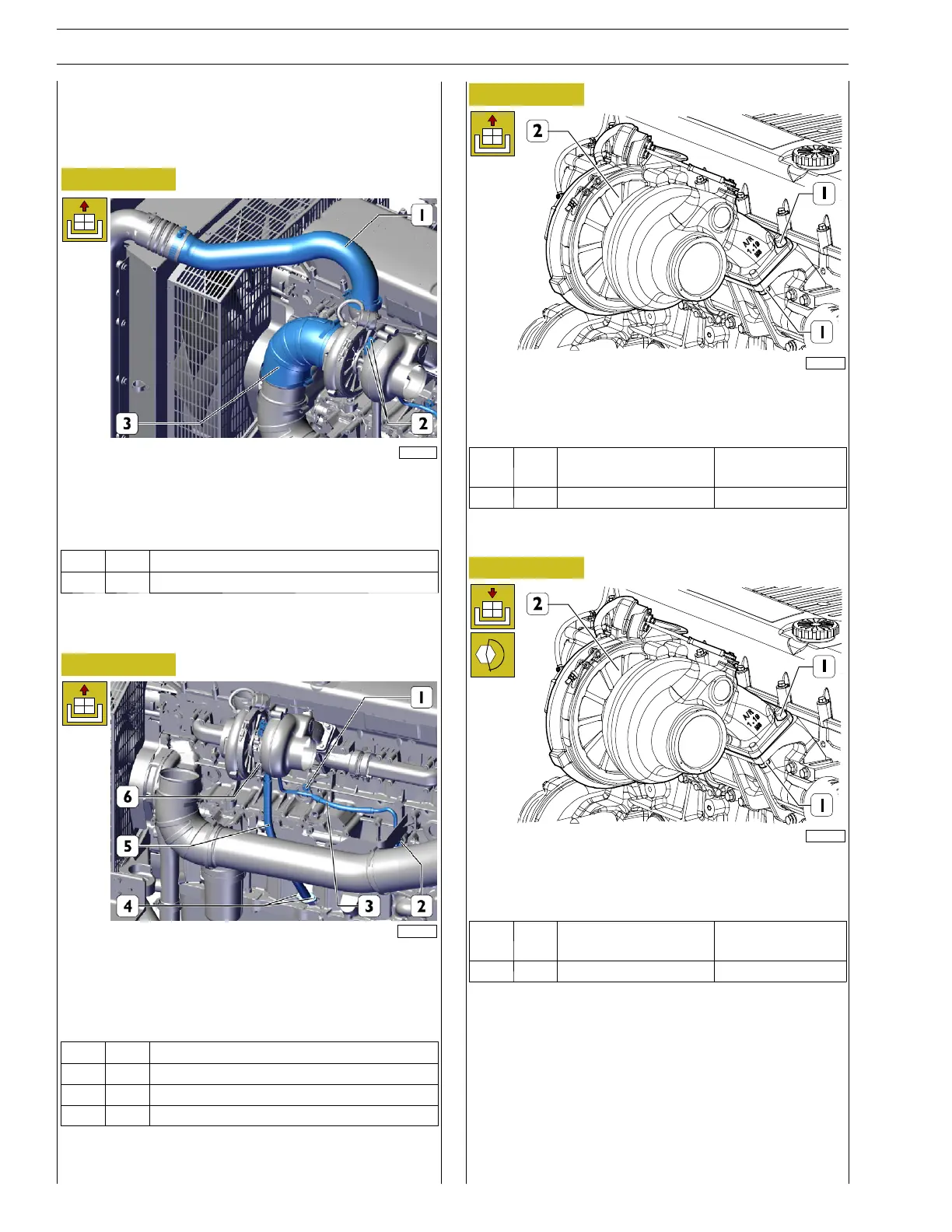

Figure 39
227760
Slacken the clamp and collar and remove the combustion air
intake pipe (1) to the aftercooler.
Undo the screws (2) of the oil deliver pipe to turbocharger
Ref.
No. Description
(2) 2 M8 x 1.25 screws
Slacken the clamps and remove the sleeve (3) of the
combustion air intake pipe to the turbocharger.
Figure 40
227761
Loosen the screw of the bracket (1) and fitting (2) and
remove the oil supply pipe to the turbocharger (3).
Undo the screws (4, 6) and remove the oil return pipe from
the turbocharger (5) with its gaskets.
Ref.
No. Description
(1) 1 M10 screw
(2) 1 Fitting M16X1.5X12
(4, 6) 4 M8 x 1.25 screws
Figure 41
225025
Unscrew the nuts (1) extract the pins and remove the
turbocharger (2) from the exhaust manifold along with its
gasket.
Ref.
No. Description
Tightening
torques
(1) 4 Nuts M12 X 1.75 75 Nm
Refitting
Figure 42
225025
Fit the turbocharger (2) onto the exhaust together with the
new gasket, position the pins and tighten the nuts (1) to the
torque indicated in the table.
Ref.
No. Description
Tightening
torques
(1) 4 Nuts M12 X 1.75 75 Nm
