SECTION 6 - GENERAL MECHANICAL OVERHAUL
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E

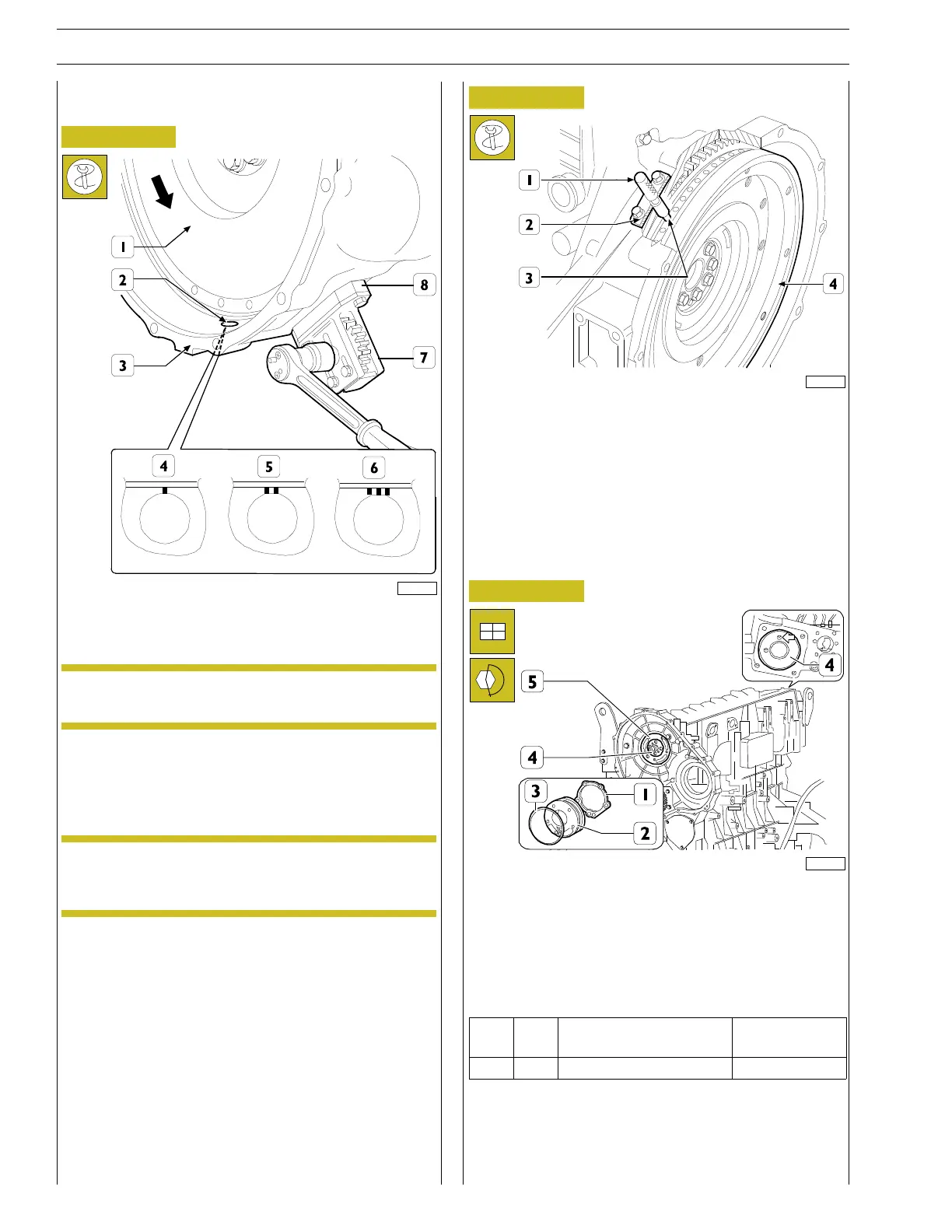

Fitting camshaft
Figure 179
185252
Apply the tool for engine flywheel rotation 99360321 (7) and
the specific spacer 99360325 (8) to the gear housing (3).
NOTE The arrow shows the direction of rotation of
the engine when running .
With the aforementioned tool, turn the flywheel (1) in the
direction of the engine rotation so as to bring cylinder piston
1to54Ëš before the T.D.S. during compression (cylinder 6 in
discharge phase).
NOTE This condition occurs when the hole with two
notches (5) on the engine flywheel (1), can be
seen through the small inspection window (2).
Figure 180
71774
Check that the tool for positioning the T.D.C 99360612 (1),
through the seat (2) of the engine speed sensor , enters the
hole (3) in the engine flywheel (4). in this condition, the fly-
wheel is in the reference position (piston no. 1 to 54Ëš before
T.D.C.).
If this is not the case, turn and adjust the engine flywheel(4) ap-
propriately.
Remove tool 99360612 (1).
Figure 181
225009
Fit the camshaft (4), positioning it with the reference marks
(!) as shown in the figure.
Lubricate the seal ring (3) and fit it onto the shoulder plate (2).
Fit the shoulder plate (2) with the sheet metal gasket (1) and
tighten the screws (5) to the specific torque and in the order
indicated in Figure 182.
Ref.
No. Description
Tightening
torques
(-) 5 Screws M8 X 1.25 X 25 24.5 ± 2.5 Nm
