FPT CURSOR Series User Manual

SECTION 6 - GENERAL MECHANICAL OVERHAUL
75
CURSOR SERIES
Print P4D32C006 E Base - 03/2015

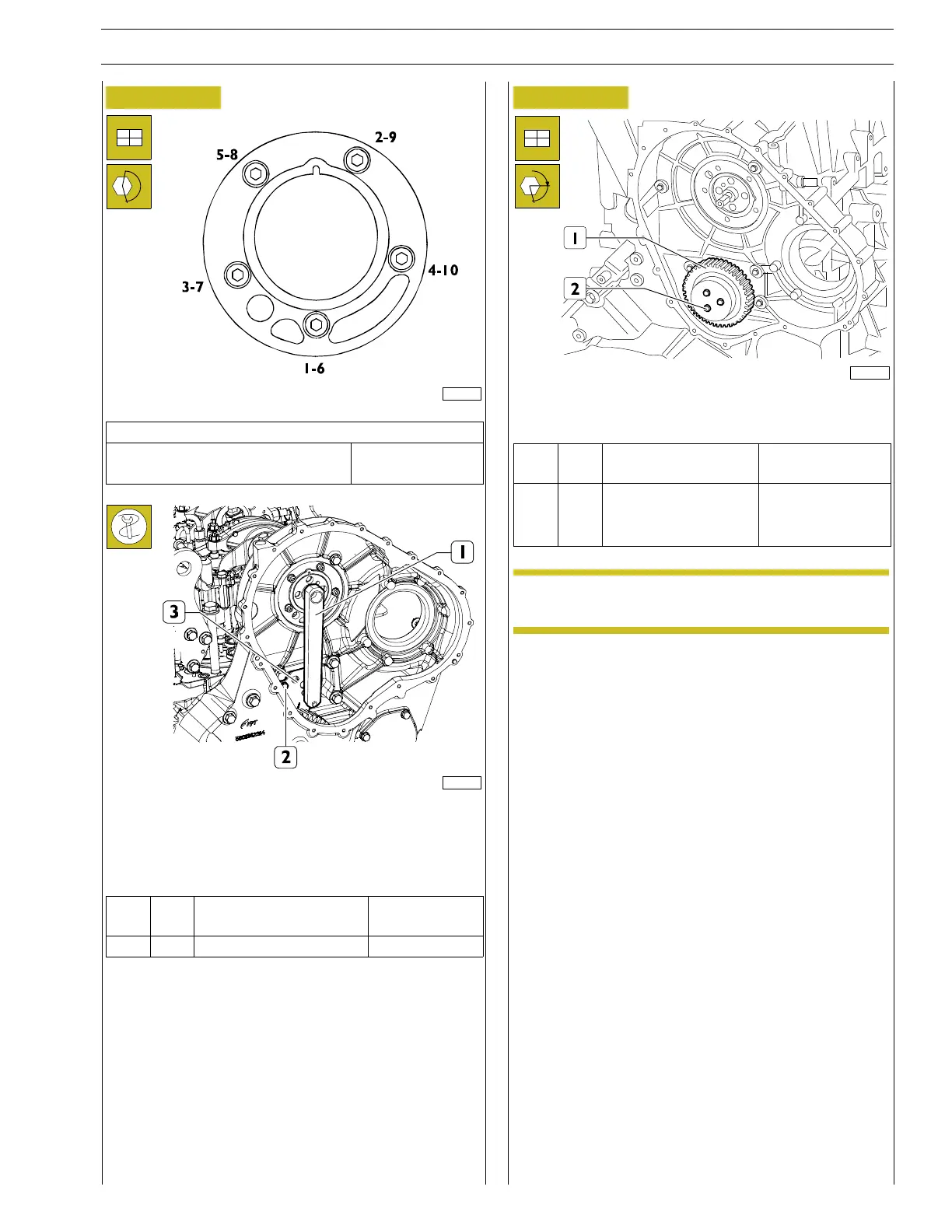

Figure 182
225010
Tightening sequence
Step 1 1-2-3-4-5
Step 2 6-7-8-9-10
160654
Apply the gauge 99395225 (1).
Check and adjust the position of the connecting rod (3) for the
transmission gear; tighten the screw (2) to the torque specified
in the table.
Ref.
No. Description
Tightening
torques
(2) 1 Screws M8 X 1.25 X 16 24.5 ± 2.5 Nm
Figure 183
α
221107
Fit the transmission gear (1) and tighten the screws (2) to the
torque indicated in the table.
Ref.
No. Description
Tightening
torques
(2) 3
M8 x 1.25 screws
Step 1 30 Nm
Step 2 90˚
NOTE Lubricate the screws (2) with engine oil before
assembly.
