SECTION 6 - GENERAL MECHANICAL OVERHAUL
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E

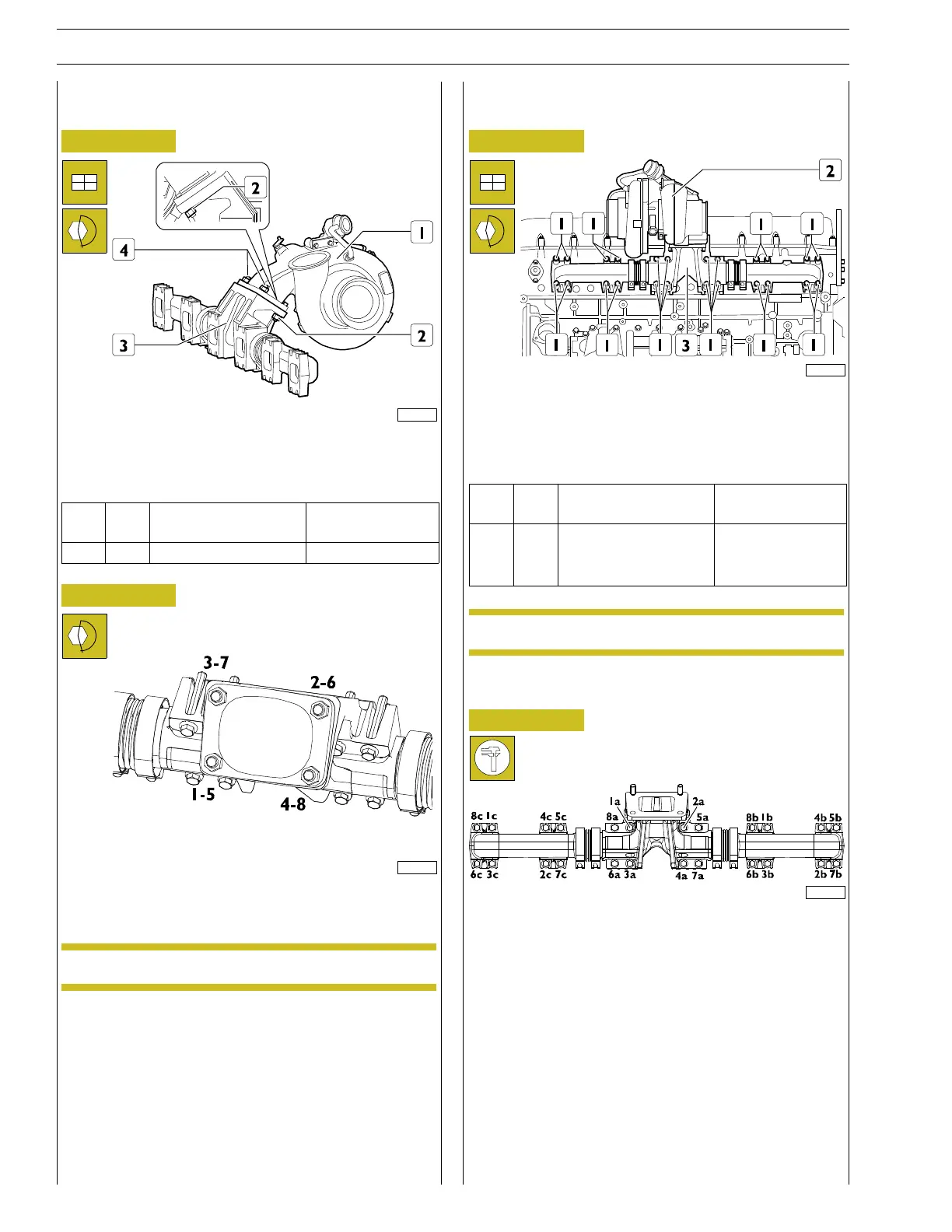

Turbocharger assembly
Figure 220
221091
Fit the turbocharger (1) with a new gasket on the exhaust
manifold (3), tightening the screws (4) and the nuts (2) to tor-
que stated in the table.
Ref.
No. Description
Tightening
torques
(2, 4) 4 Nuts M12 X 1.75 75 Nm
Figure 221
225062
Tighten the screws securing the turbocharger to the prescri-
bed torque following the sequence indicated in the figure.
NOTE Lubricate the screws with graphite oil.
Exhaust manifold assembly
Figure 222
221090
Fit the exhaust manifold (3) with new gaskets together with the
turbocharger (2).
Tighten the screws (1) securing the exhaust manifold to the
prescribed torque.
Ref.
No. Description
Tightening
torques
(1) 24
Screws M10X1.5X70
Step 1 30 ±5 Nm
Step 2 60 ±5 Nm
NOTE Lubricate the screws with graphite oil.
Tightening sequence
Figure 223
225030
