FPT CURSOR Series User Manual

190515
113561
113561
190515

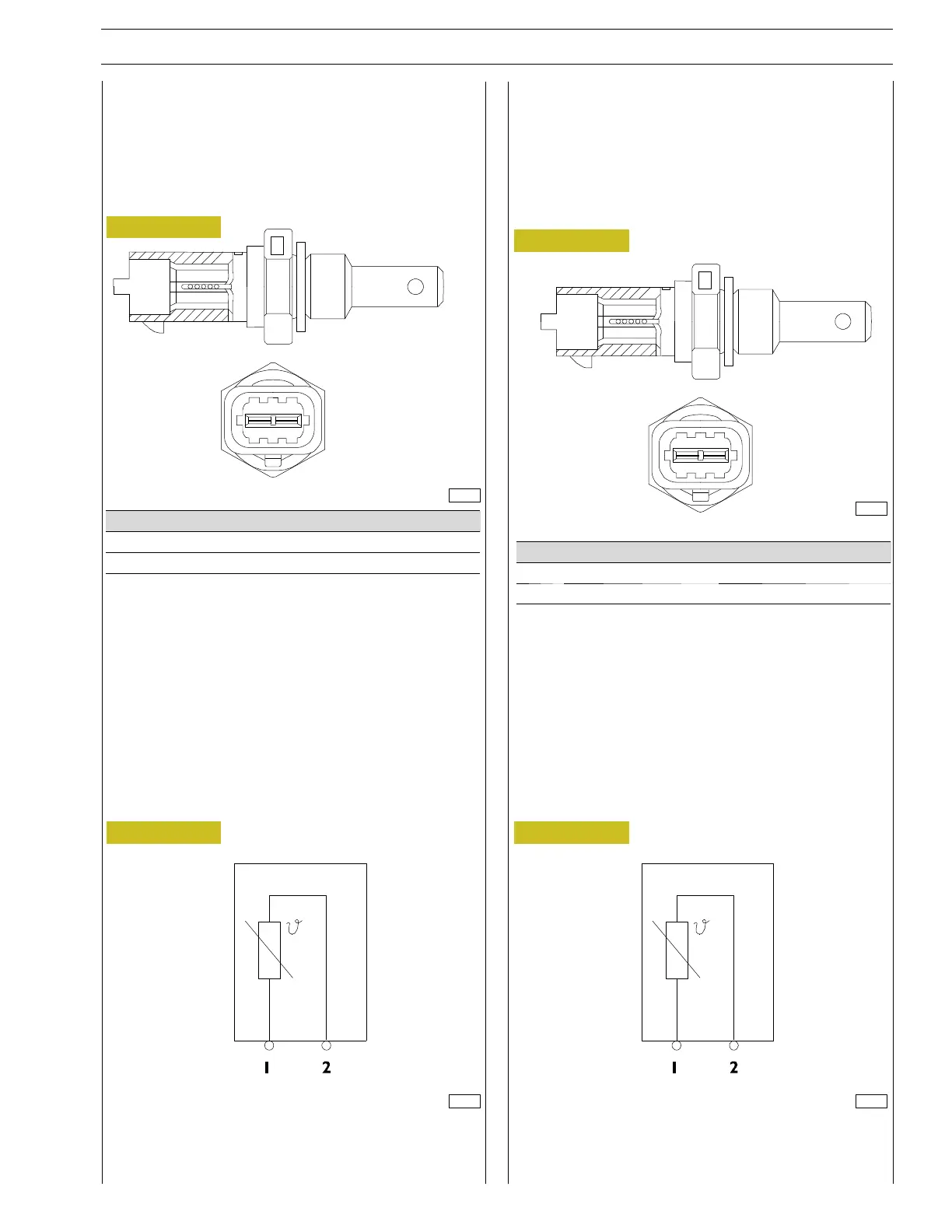

Figure 14
Figure 15
Figure 16
Figure 17
Fuel temperature sensor
It is an N.T.C type sensor and is located on the fuel filter.
It detects the fuel temperature thus enabling the electronic
control unit to determine the fuel density and volume and
adjust the delivery.
* Common ground
Coolant temperature sensor
It is an N.T.C type sensor and is located on the fuel filter.
It detects the fuel temperature thus enabling the electronic
control unit to determine the fuel density and volume and
adjust the delivery.
* Common ground
SECTION 3 - ELECTRIC EQUIPMENT
13
CURSOR SERIES
Print P4D32C006 E Base - 03/2015
Pin Description ECU pin
1 Signal (+) EDC17, pin A/12
2 Ground (-) EDC17, pin A/59*
Pin Description ECU pin
1 Signal (+) EDC17, pin A/39
2 Ground (-) EDC17, pin A/59*

FPT CURSOR Series Specifications

General

Engine Type	Diesel
Configuration	Inline
Aspiration	Turbocharged
Fuel System	Common Rail
Cooling System	Liquid Cooled
