FPT CURSOR Series User Manual

44
SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E
Remove the protection grilles as described in the procedure
”PROTECTION GRILL REMOVAL - REFITTING”.

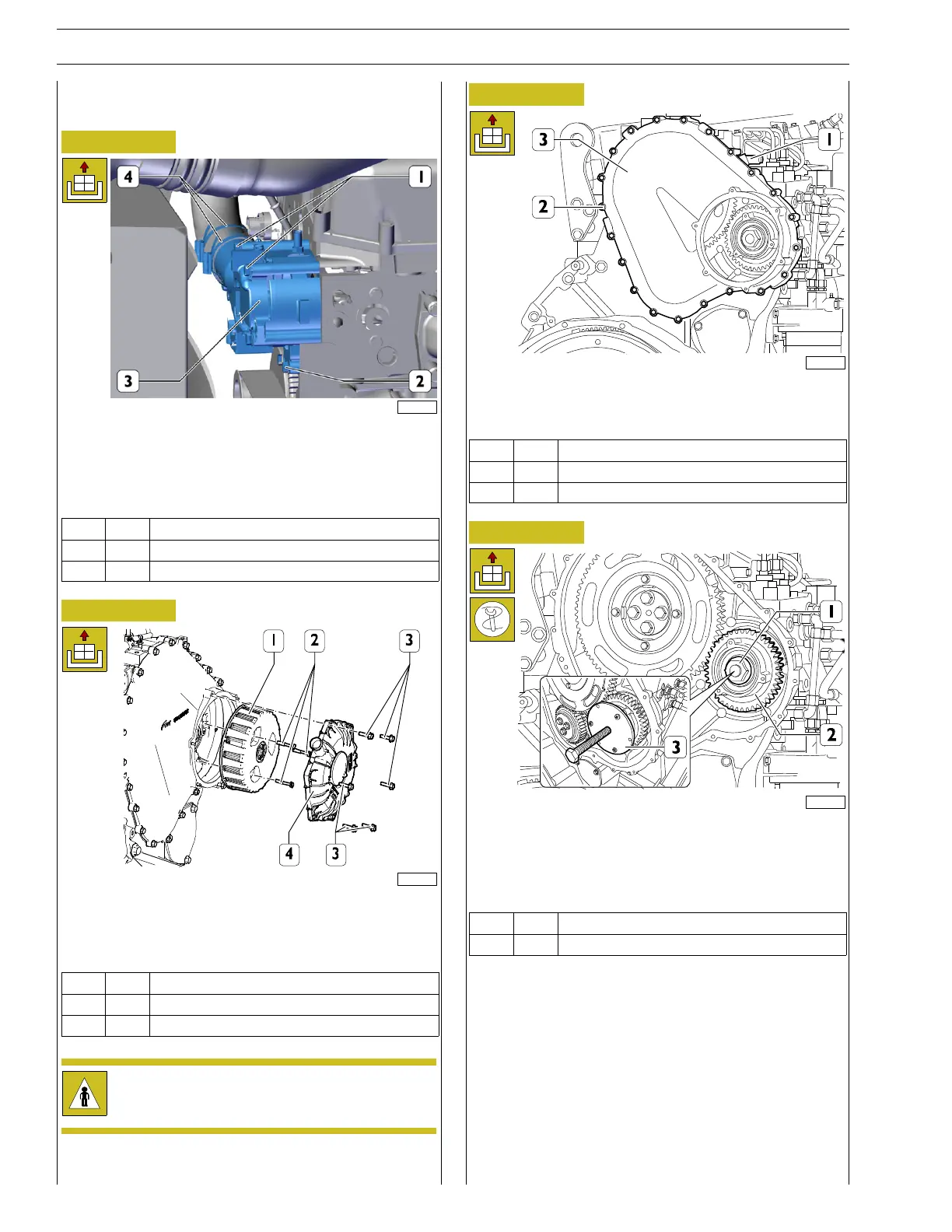

Figure 127
227758
Slacken the clamps (4) and from the thermostat (3) disconnect
the coolant supply pipe to the radiator assembly.
Unscrew the screws (1, 2) and remove the thermostat box (3),
thermostat and relative gaskets.
Ref.
No. Description
(1) 5 Screws M8 X 1.25 X 100
(2) 2 Screws M8 X 1.25 X 50
Figure 128
221043
Unscrew the screws (3) and remove the blow-by cover (4).
Unscrew the screws (2) and remove the blow-by filter
element (1)
Ref.
No. Description
(2) 3 ScrewsM6X1X40
(3) 6 ScrewsM6X1X25
Dispose of consumable materials and the parts in
contact with them (for example filters) in accordance
with the law.
Figure 129
225017
Remove the timing sensor (1).
Unscrew the screws (2) and remove the distribution cover (3).
Ref.
No. Description
(1) 1 M6 X 12
(2) 21 Screws M6 X 1.0 X 25
Figure 130
221102
Undo the nut (1).
Apply the tool to extract the high pressure pump gear
99366198 (3) and remove the high pressure pump control
gear (2).
Ref.
No. Description
(1) 1 Nut M24 X 1.5
