SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
45
CURSOR SERIES
Print P4D32C006 E Base - 03/2015

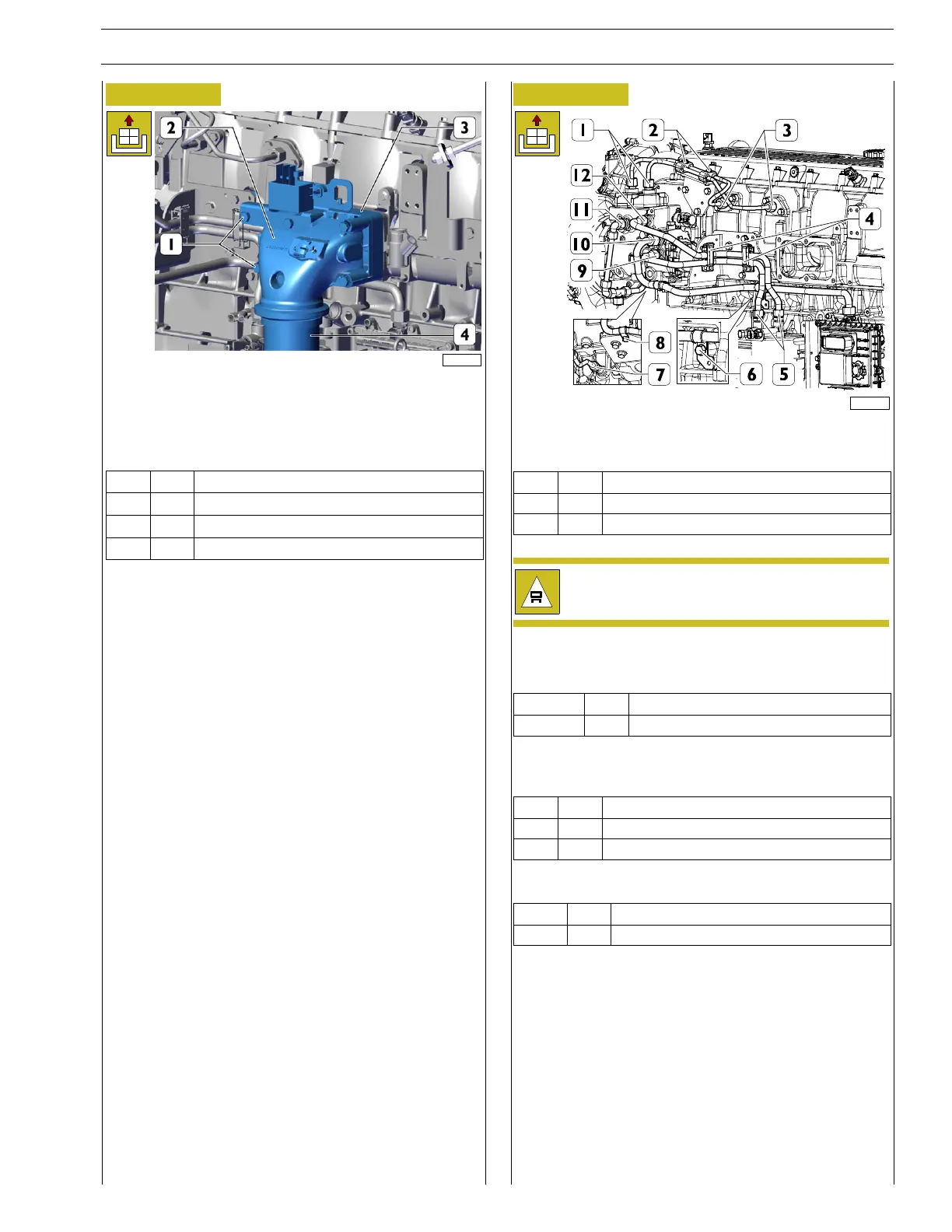

Figure 131
227769
Disconnect the combustion air intake pipe to the engine (4)
acting on the clamp.
Unscrew the screws (1) and remove the intake manifold (2)
together with the engine preheating resistor (3) and its gasket.
Ref.
No. Description
(1) 3 Screws M10x1.5x100
(1) 2 Screws M10x1.5x130
(1) 1 Screw M10x1.5x150
Figure 132
225050
Unscrew the nutes (2), remove the plugs, undo the fittings (1,
3) and remove the HP fuel pipes.
Ref.
No. Description
(1, 3) 4 Fittings M16 X 1.5
(2) 2 Nuts M6 X 1
The HP pipes that are disassembled cannot be used
again and must always be replaced.
Open springs (4), remove the fittings (5, 9, 12) and remove the
LP fuel pipes from pump to filter and from filter to pump.
Ref.
No. Description
(5,9,12) 4 Fittings M18 X 1.5
Undo the fitting (10), bracket retainer screws (6, 8) and move
the LP fuel pipe from control unit to pump off to the side.
Ref.
No. Description
(6, 8) 2 Screws M8 X 1.25 X 16
(10) 1 Fitting M22 X 1.5
Unscrew the fittings (7, 11) and remove the fuel return pipe.
Ref.
No. Description
(7, 11) 2 Fittings M18 X 1.5
