46
SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E

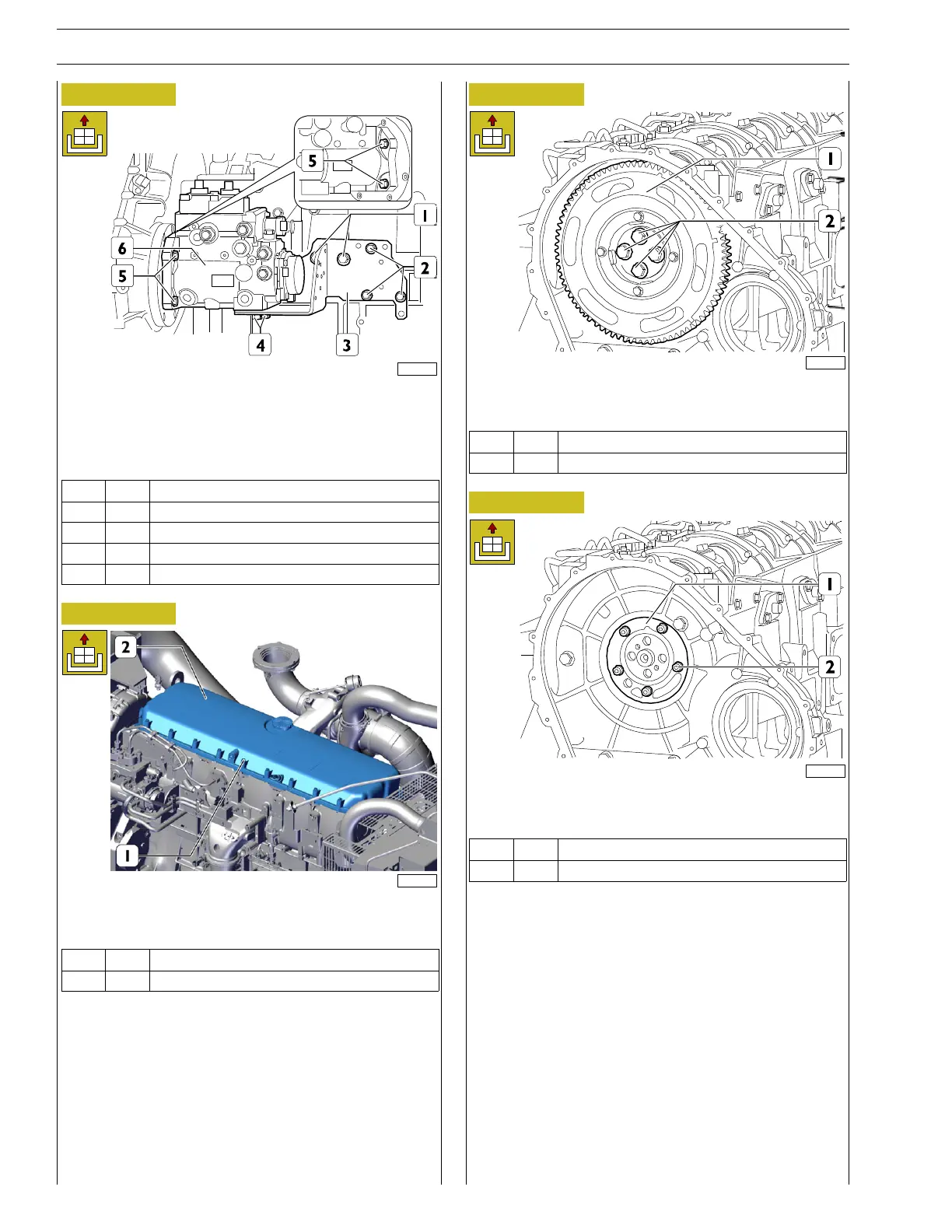

Figure 133
221104
Unscrew the screws (1,2,4) and remove the pump support
bracket (3).
Unscrew the screws (5) and remove the high pressure pump
(6).
Ref.
No. Description
(1) 2 ScrewsM10X1.5X20
(2) 2 Screws M8 X 1.25 X 20
(4) 2 Screws M12 X 1.75 X 30
(5) 4 Screws M12 X 1.5
Figure 134
227772
Unscrew the fastening screws (1) and remove the head cover
(2)togetherwiththegasket.
Ref.
No. Description
(1) 24 M6 X 1
Figure 135
221105
Unscrew the screws (2) and remove the gear (1) fitted with
phonic wheel.
Ref.
No. Description
(2) 4 ScrewsM14X4X60
Figure 136
221106
Unscrew the screws (2) and remove the thrust plate (1) and
the sheet gasket.
Ref.
No. Description
(2) 5 Screws M8 X 1.25 X 25
To Next Page
