SECTION 6 - GENERAL MECHANICAL OVERHAUL
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E

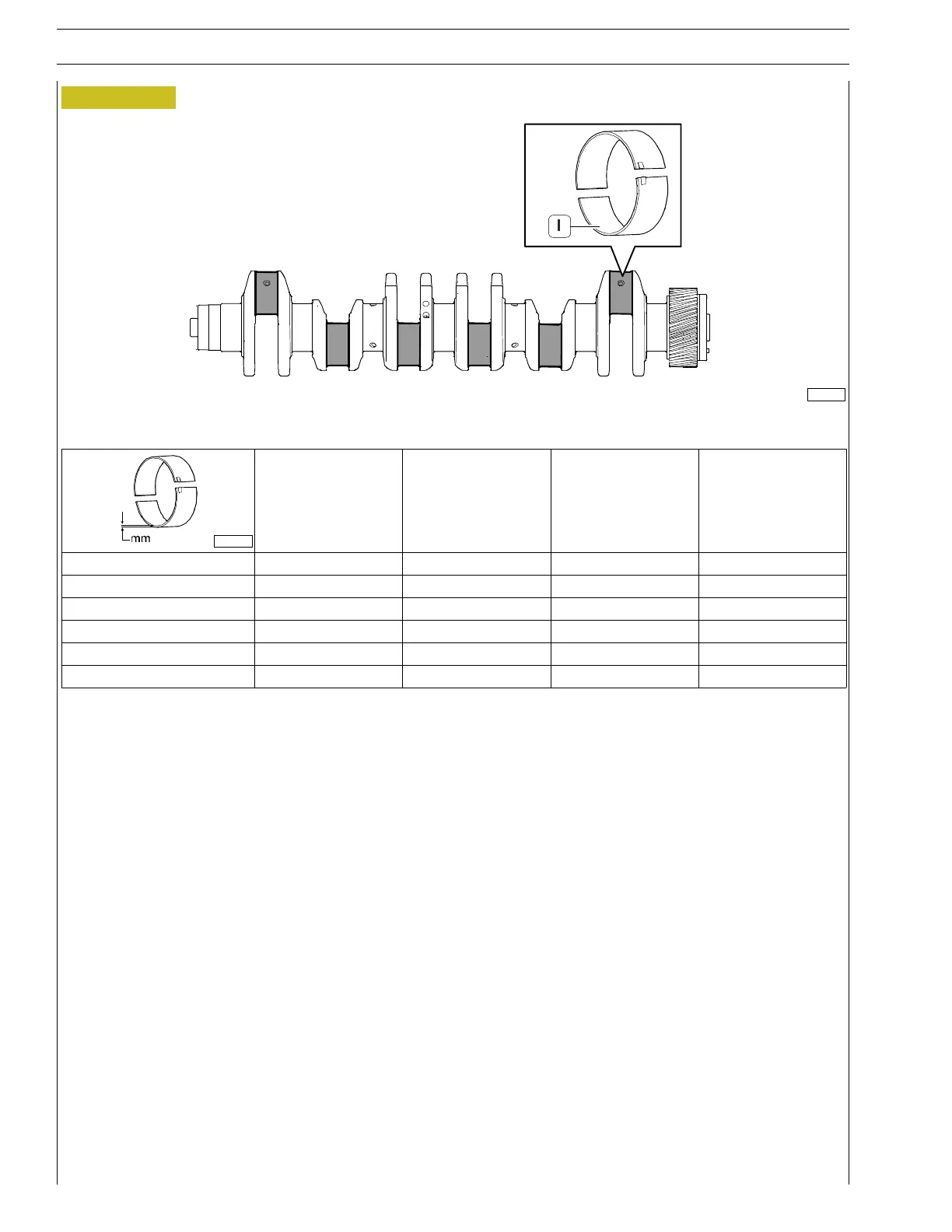

Figure 87
210305
1. Coloured marking area
210311
STD +0.127 +0.254 +0.508
Red 1.960 1.970 - 2.087 - 2.097 2.214 - 2.224
Red/Black - 2.023 - 2.033 - -
Green 1.970 -1.980 - 2.097 - 2.107 2.224 - 2.234
Green\Black - 2.033 - 2.043 - -
Yellow* 1.980 -1.990 - - -
Yellow/Black ** - 2.043 - 2.053 - -
* Not supplied as a spare part. If necessary, replace with Green half-bearing
** Not supplied as a spare part. If necessary, replace with Green\Black half-bearing
