FPT CURSOR Series User Manual

64
SECTION 6 - GENERAL MECHANICAL OVERHAUL
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E

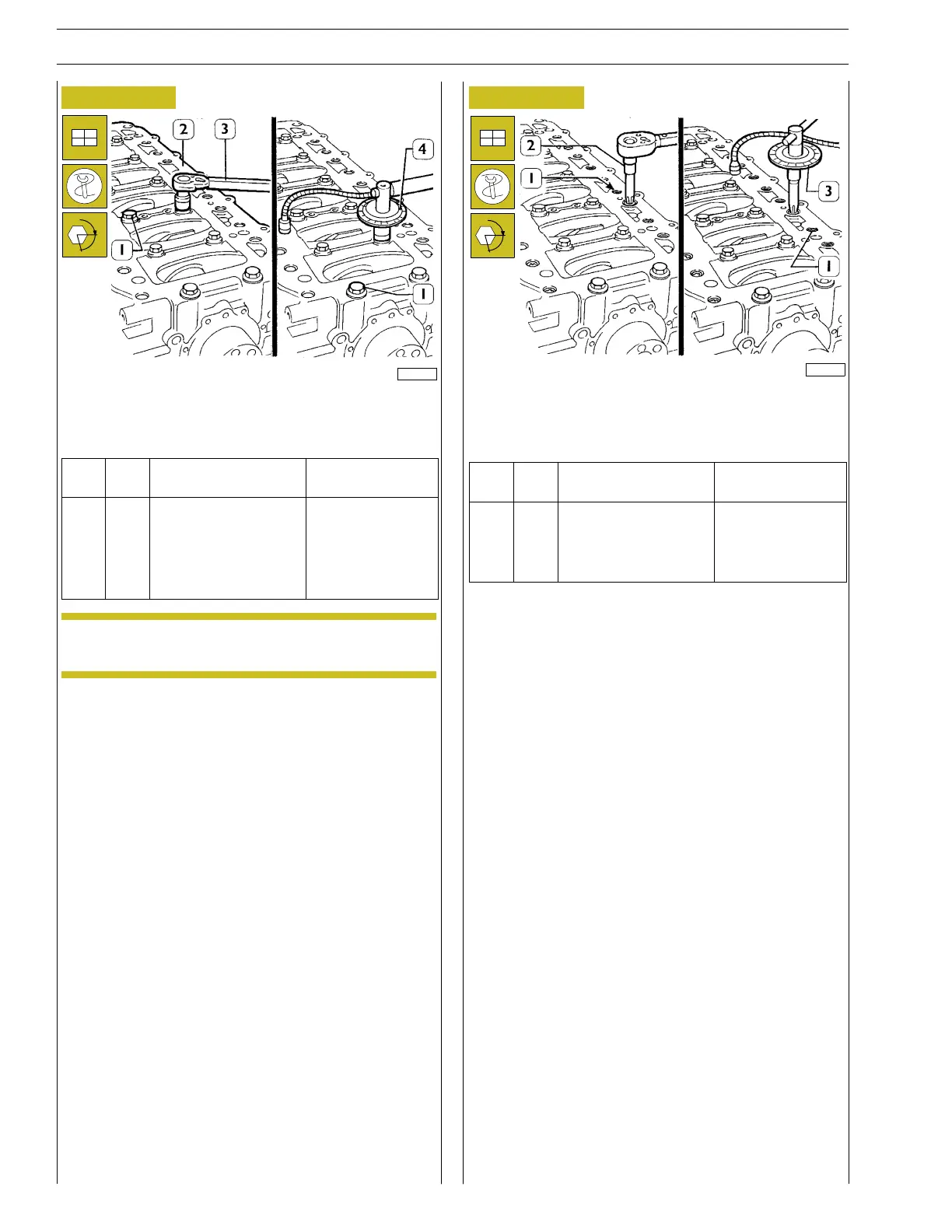

Figure 151
α
47579
Using a torque wrench (3), tighten the internal screws (1) to
the prescribed torque, then angle tighten using tool 99395216
(4).
Ref.
No. Description
Tightening
torques
(1) 14
Lower crankcase inner
tightening screws
Step 1 160 Nm
Step 2 60˚
Step 3 60˚
NOTE Always use new screws each time you fit the
lower part of the crankcase.
Figure 152
α
47581
Using a torque wrench 99395216 (2), tighten the outer hex--
socket screws (1) to the prescribed torque, then use the speci-
fic tool (3) tighten to a specific angle.
Ref.
No. Description
Tightening
torques
(1) 26
Outer screws fixing
lower crankcase
Step 1 30 Nm
Step 2 60˚
See the figure for tightening order.
