SECTION 6 - GENERAL MECHANICAL OVERHAUL
7
CURSOR SERIES
Print P4D32C006 E Base - 03/2015

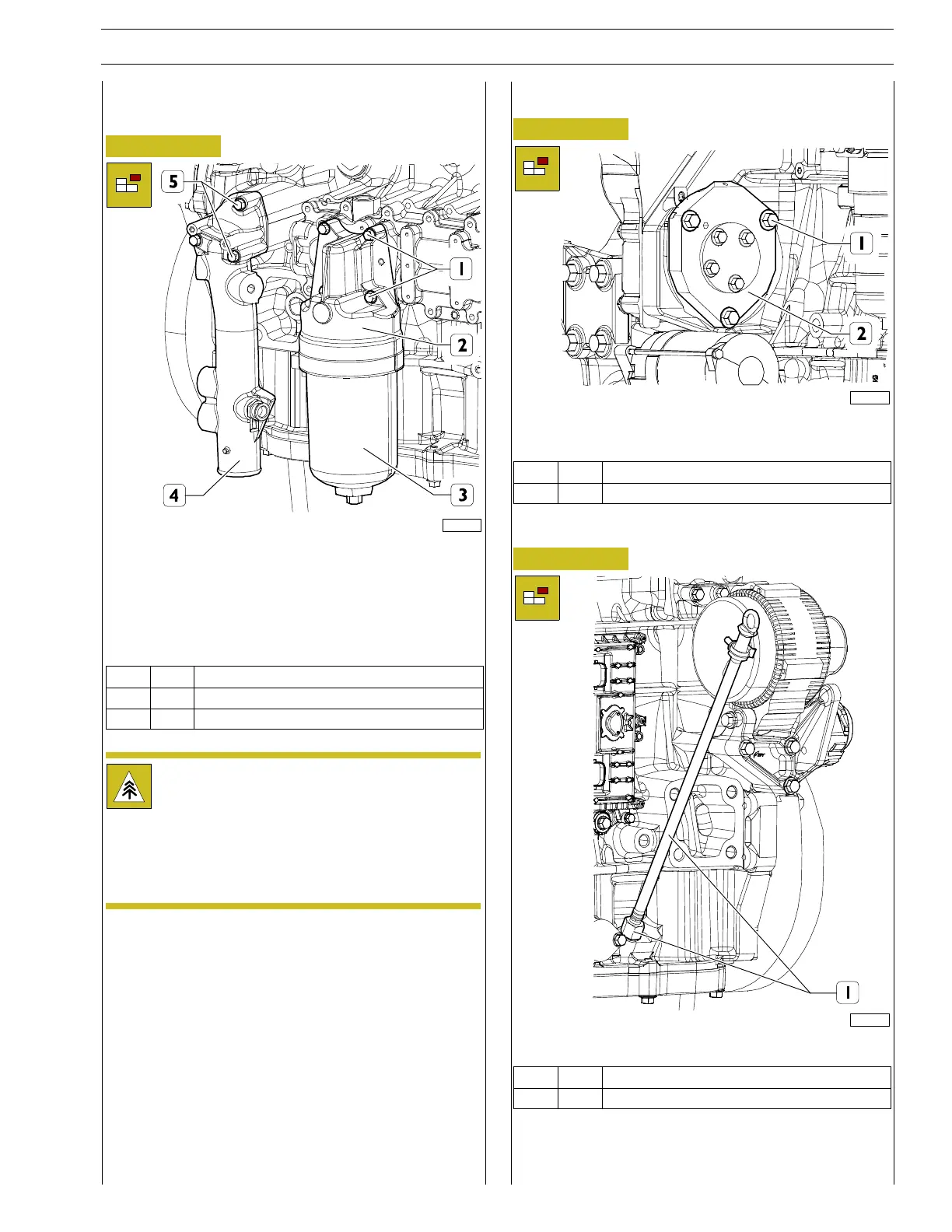

Removal of the oil filter with relative support and
water inlet pipe to crankcase
Figure 7
224061
Using a suitable tool, unscrew the oil filter body (3) and
remove the filter element.
Unscrew the screws (1) and remove the engine oil filter (2)
and gasket.
Unscrew the screws (5) and remove the water intake pipe to
crankcase (4) together with the gasket.
Ref.
No. Description
(1) 4 Screws M8 X 1.25 X 65
(5) 3 M8 x 1.25 screws
The oil filter contains approximately 2 kg of engine
oil inside.
Position a suitable container to collect the oil.
Avoid skin contact with the engine oil: in case of
contact, wash thoroughly with water.
The engine oil is highly pollutant: it must be disposed
of according to applicable laws.
Removal of the air compressor input point
Figure 8
224057
Undothescrews(1)andremovetheaircompressorinput
point support (2).
Ref.
No. Description
(1) 3 Screws M12 X 1.75
Removal of the dipstick for checking the oil
Figure 9
224058
Uscrew the nuts and remove the oil level dipstick (1).
Ref.
No. Description
(1) 1 Nut M18 X 1.5
