SECTION 6 - GENERAL MECHANICAL OVERHAUL

CURSOR SERIES

Base - 03/2015 Print P4D32C006 E

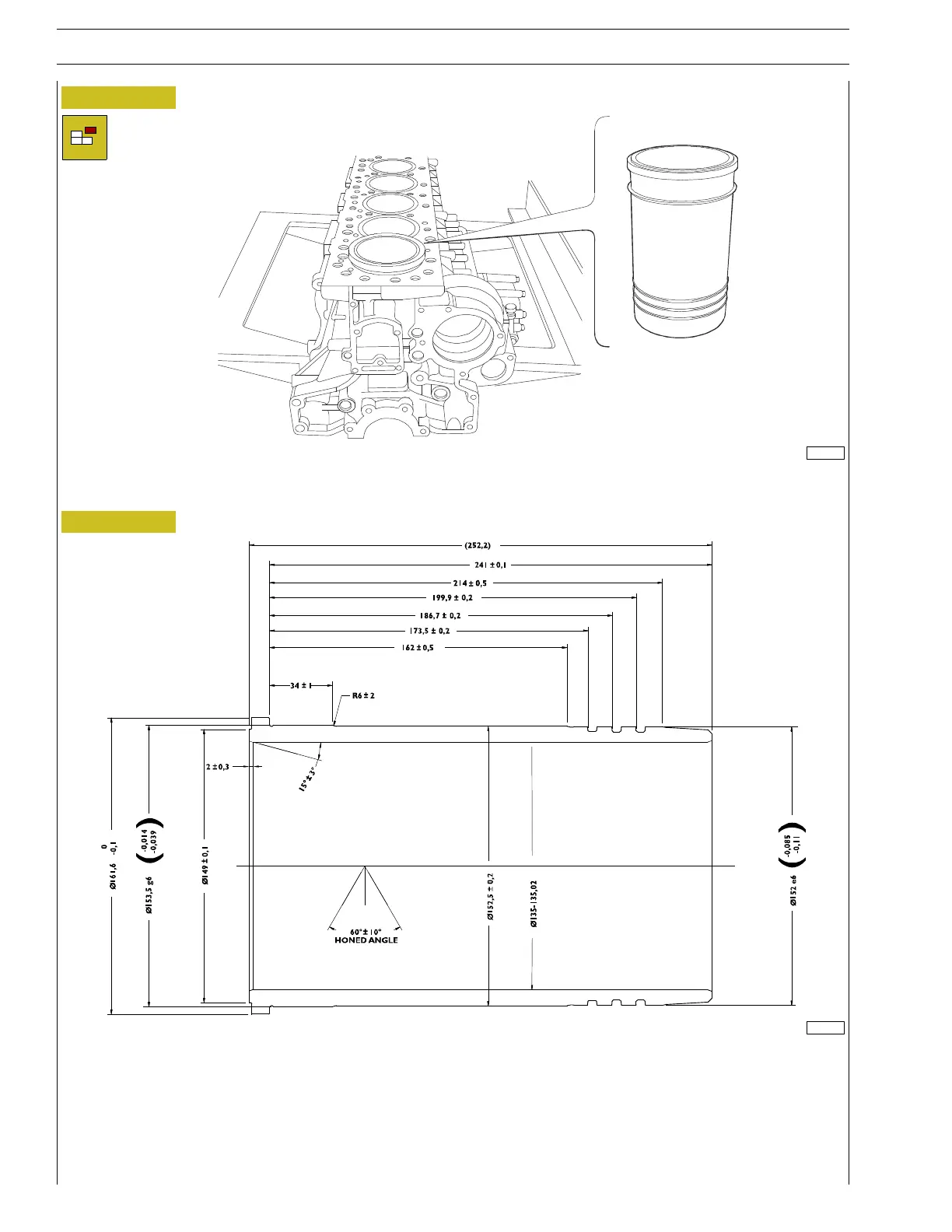

Figure 66

60598

Cylinder liners can be removed and fitted several times into different seats, if needed.

Figure 67

221075

During checks, make sure that the main data for the cylinder liners is the same as in the figure.
