84
SECTION 6 - GENERAL MECHANICAL OVERHAUL
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E

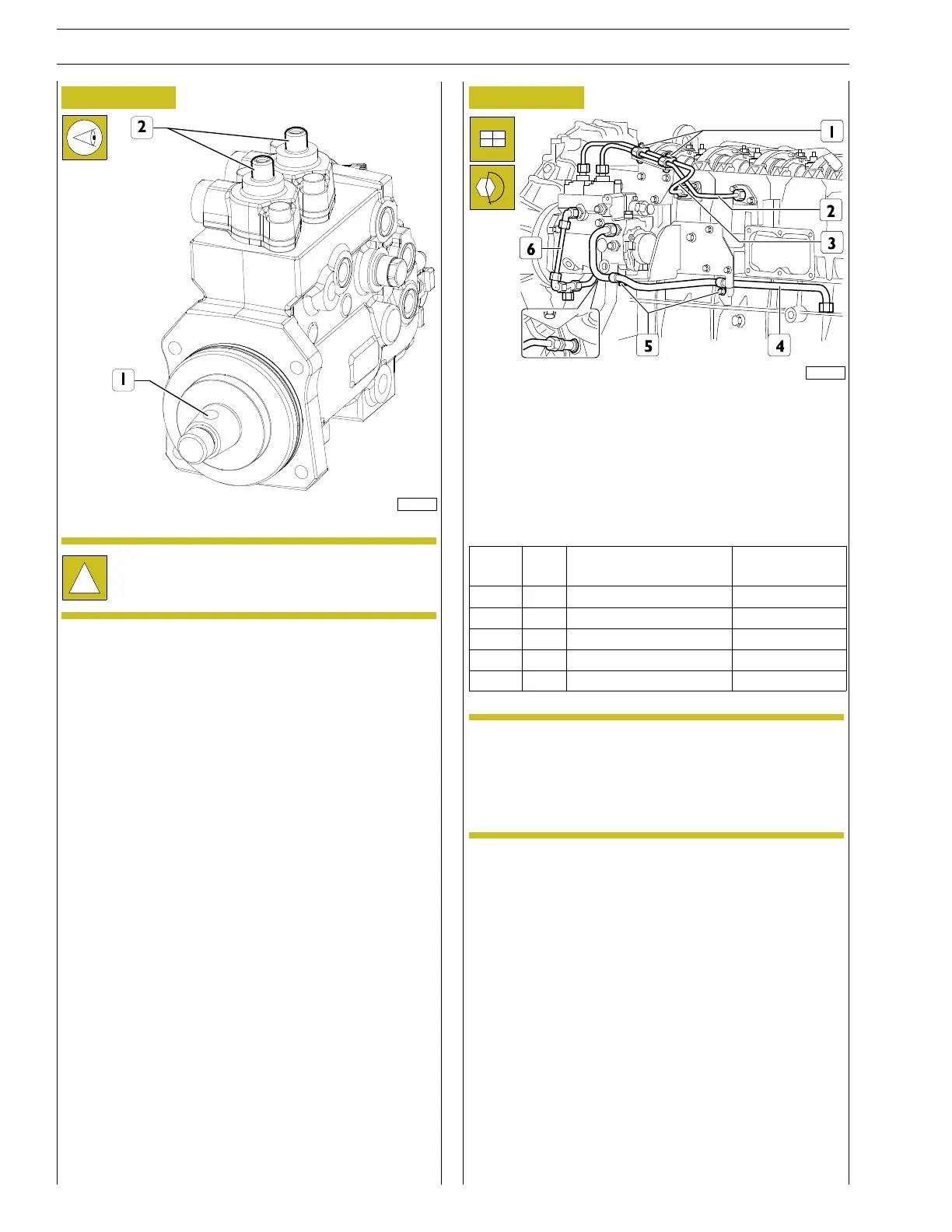

Figure 202
187918
!
Fit the high pressure pump and make sure that
the seat of the key (1) on the pump shaft is facing
the pump intakes (2) .
Figure 203
221103
Fit the HP fuel pipes (2, 3), fit the plugs onto the bracket and
tighten the fittings and nuts (1) to the torque shown in the
table.
Fit the low pressure pipe (4) and tighten the fittings and collars
(5) to the torque indicated in the table.
Fit the fuel return pipe (6) and tighten the fittings to the torque
indicated in the table.
Ref.
No. Description
Tightening
torques
(1) 2 Nuts M6 X 1 8±2Nm
(2)(3) 4 Fittings M16 X 1.5 42.5 ± 2 Nm
(4) 2 Fittings M22 X 1.5 50 ± 5 Nm
(5) 2 Screws M8 X 1.25 X 16 24.5 ± 2.5 Nm
(6) 2 Fittings M18 X 1.5 37 ± 3 Nm
NOTE Make sure that the pipe is not damaged after
mounting and that there are no fuel leaks while
engine is running.
Thehighpressurepipeswhichhavebeenremo-
ved cannot be used again and must be replaced.
