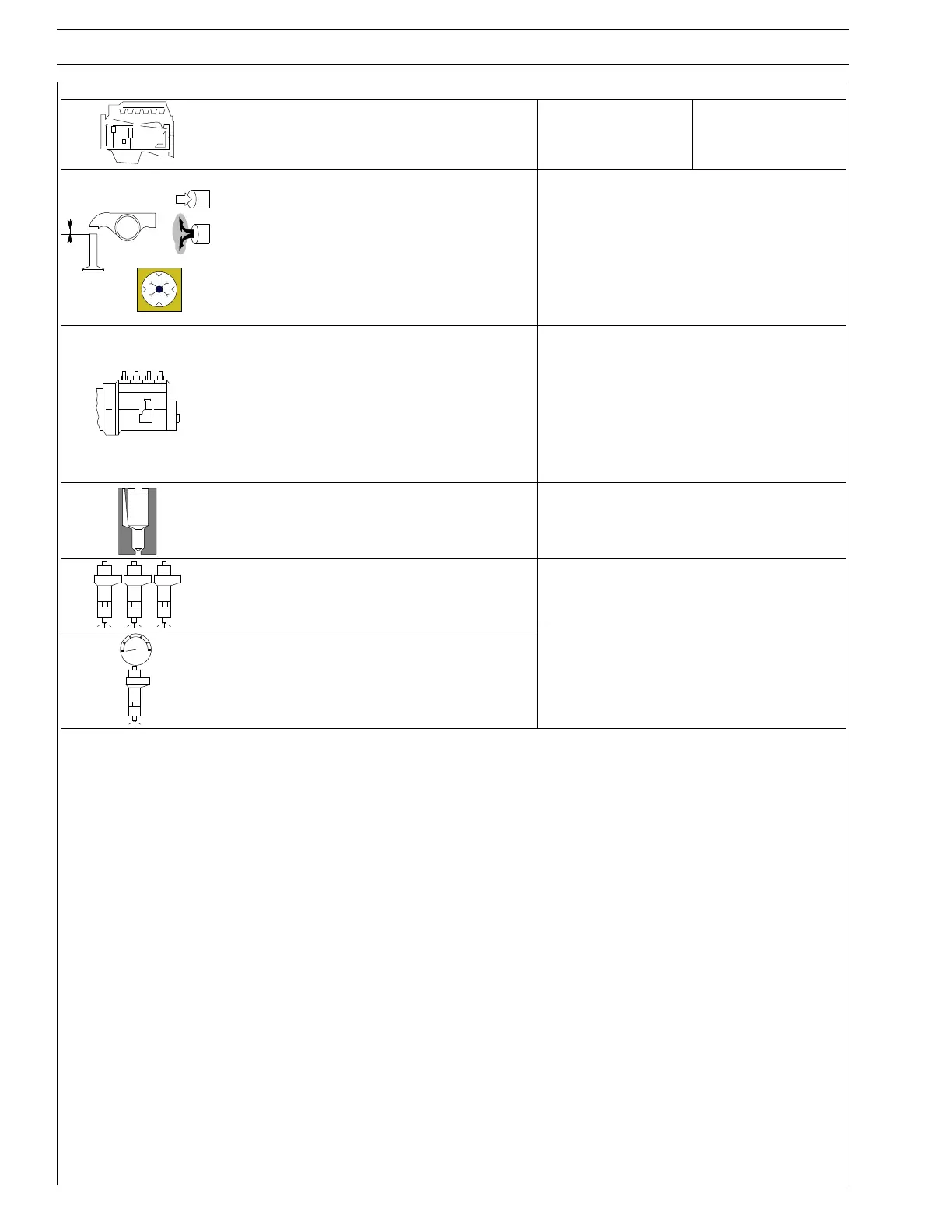

SECTION 7 - TECHNICAL SPECIFICATIONS
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E
Type F3HFA615A*D001 F3HFA615B*D001
Of operation
X
mm 0.40 ± 0.05
mm 0.60 ± 0.05
POWER SUPPLY
The high pressure fuel supply system
is managed by the BOSCH EDC 17. It consists
of the CPN 5 22/2 high-pressure pump, electro-
injectors, hydraulic accumulator (rail), EDC 17
control unit and pressure and temperature sen-
sors.
Injection
High pressure supply pump
Common Rail electronics
Bosch CPN5 22/2
Electro-injectors type Bosch CRIN3-22
Firing order 1-4-2-6-3-5
bar
Varying injection pressure bar bar -

FPT CURSOR Series Specifications

General

Engine Type	Diesel
Configuration	Inline
Aspiration	Turbocharged
Fuel System	Common Rail
Cooling System	Liquid Cooled
