2. Replacement and adjustment of parts
26510
26510
Paper advance unit 1
4. Tighten the screw(s) pushing paper advance unit 1 in the direction of the arrow. (four screws)
5. Check paper advance unit 1 sets on the positioning pin(s) normally in opening and closing.
!
!!
! Adjustment after reattaching
If the removed paper advance unit 1 is reattached
1. It is not necessary to adjust.
If new paper advance unit 1 is attached
1. Perform Paper Sensor Adjustment.
☞36000

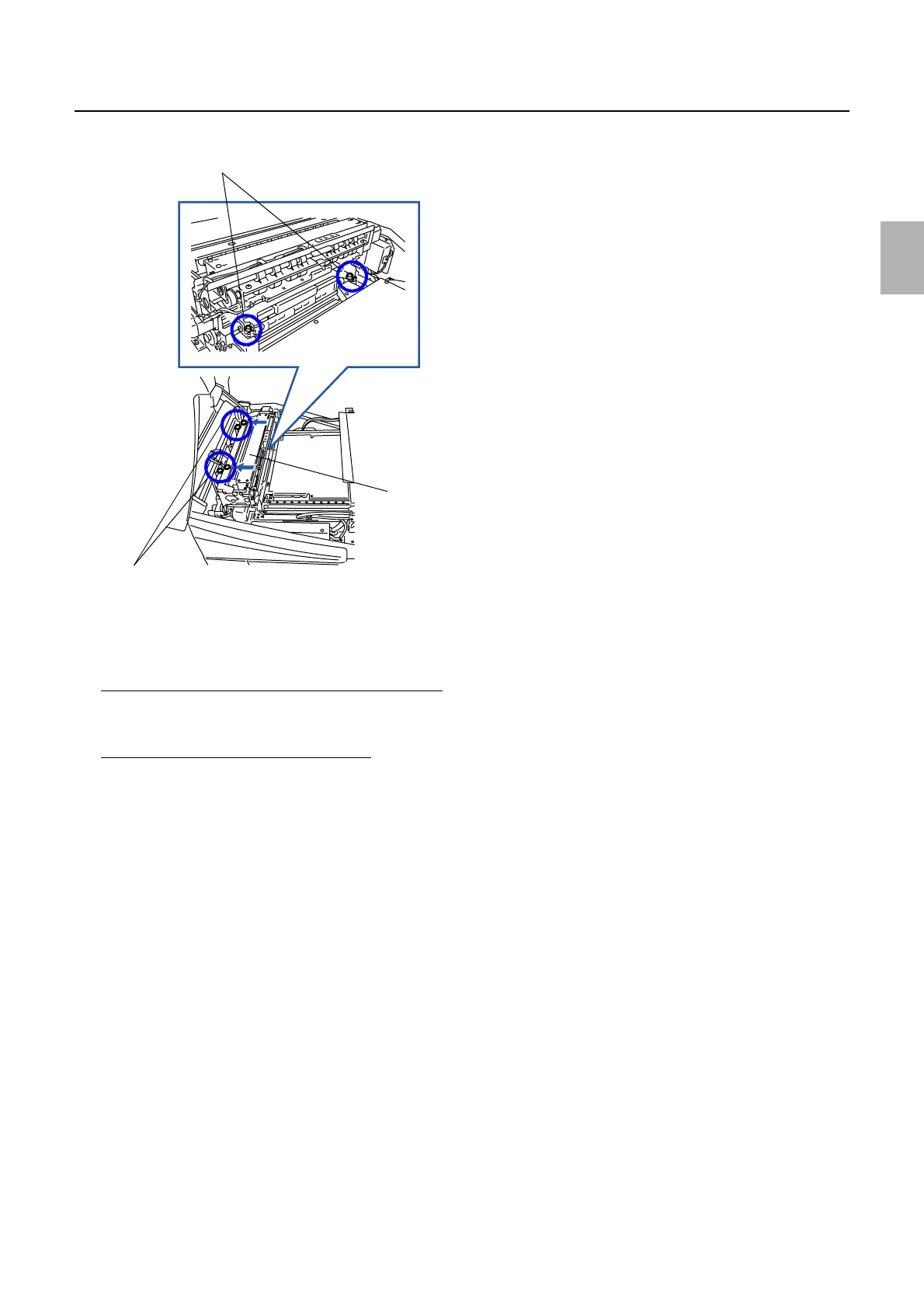

Tighten these screws.
Positioning pins
Paper advance
unit 1
G068508
