Power ON/OFF
1/2
6. Electrical parts
68550
68550
Power ON/OFF
When the power is not supplied (How to use the starter jumper)
!
!!
! Function
• You can supply power forcibly using the starter jumper when 200 V to 240 V is not supplied during operation.
!
!!
! Status
• Power supply (200 V to 240 V) is not supplied during operation.
• When the program timer is activated or temperature is being increased, pressing the manual sorter switch for two seconds or
longer does not supply the power (from 200 V to 240 V ).
!
!!

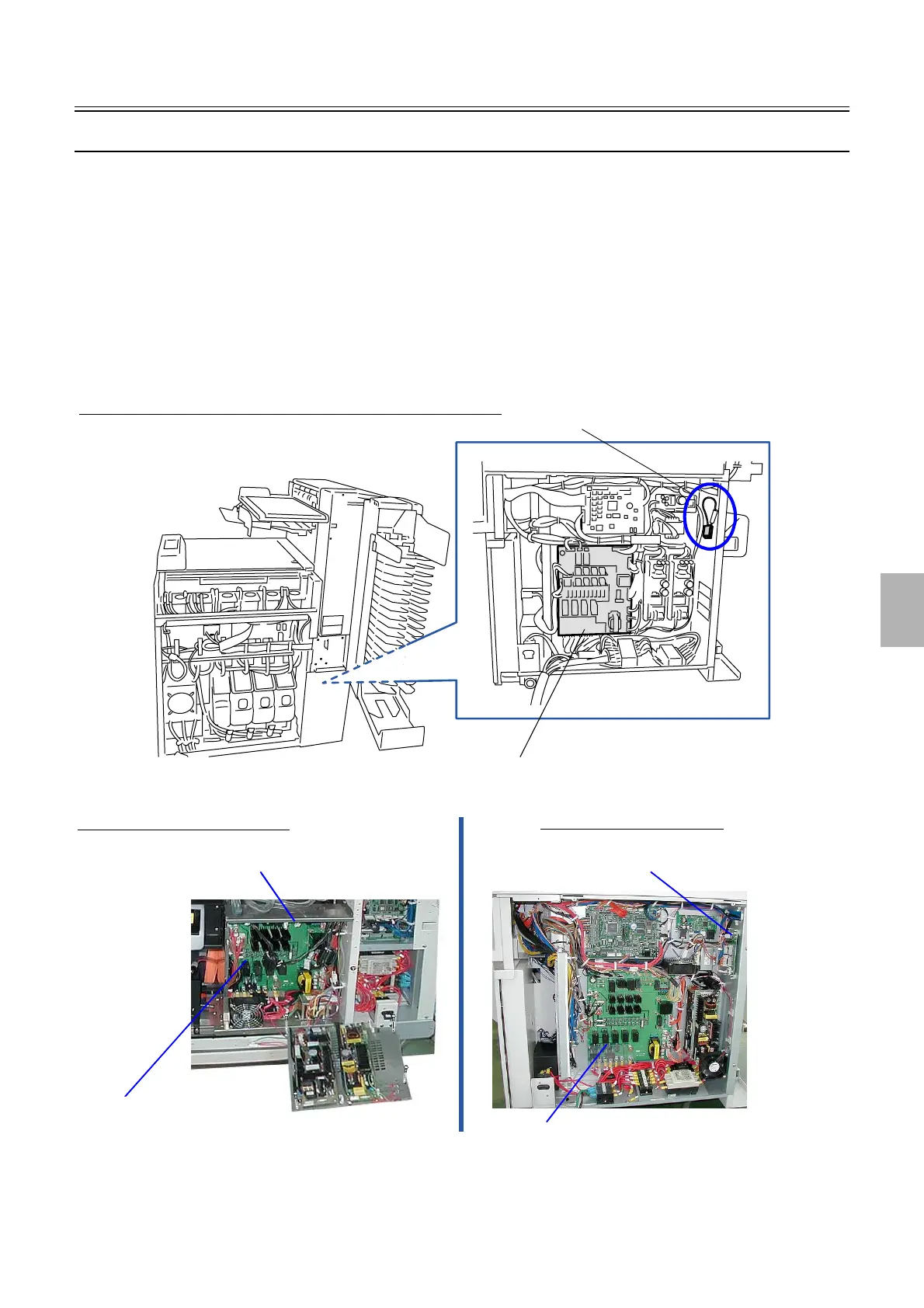

! Position of the starter jumper
Starter jumper
Processor relay PCB
QSS-3701/3702/3703/QSS-3704/3705/LP7500/LP7600/LP7700/LP7900 [N][SM][J]
G077192
Starter jumper
QSS-3701/3702/3703/LP7500/LP7600 [F]
Processor relay PCB
↑ Remove the PCB plate
(four screws)
QSS-3704/3705/LP7700/LP7900 [F]
Processor relay PCB
Starter jumper
G085264
